Service description
Quality and certifications
Certifications defined on the company profile (read-only)
- ISO 9001
- ISO 14001
- ISO 45001
More services from this company
Yavuz Döküm San. ve Tic. Ltd. Şti.
Grey and Ductile Iron Casting
Iron Casting ServiceProduction of lamellar graphite (grey) and spheroidal graphite (ductile) cast iron at the İzmir and Manisa plants with a capacity of 5,000 tons/year. Melting is done in two 800 kW induction furnaces of 2 tons/hour each; with a monthly melting and casting capacity of 350 tons, single parts up to 6 tons in grey iron and 4 tons in ductile iron are cast. The semi-automatic moulding line handles 750x550x200 mm flasks at 40 moulds per hour.
Manisa · Muradiye Organized Industrial Zone
Yavuz Döküm San. ve Tic. Ltd. Şti.
Custom Industrial Machine Castings (Pattern + Casting + CNC)
Iron Casting ServicePump housings, valve parts, handwheels, pulleys and machine frames produced from the customer's drawing or sample, including wooden/metal pattern design, core preparation and casting. Produced in GG20, GG25 grey iron and GGG40, GGG50 ductile iron grades, CNC machined and supplied to the automotive, agricultural machinery, valve and heavy machinery sectors.
Manisa · Muradiye Organized Industrial Zone
Related services

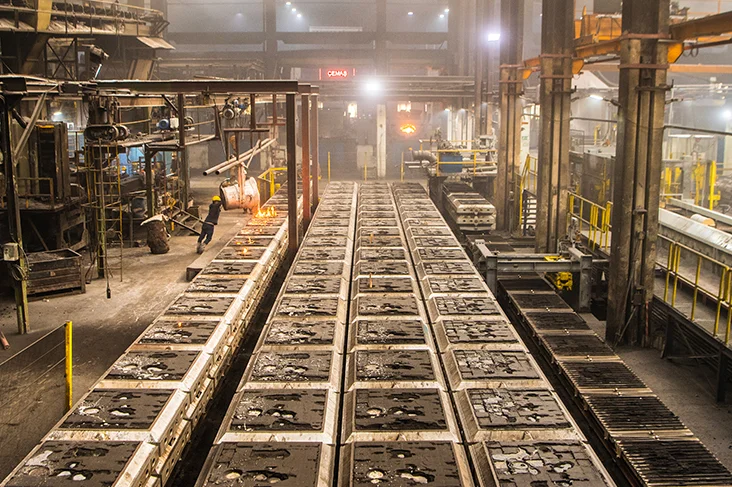

Çemaş Döküm Sanayi A.Ş.
Grey and Ductile Iron Sand Casting
Sand Casting ServiceGrey and ductile iron parts from 0.08 kg to 350 kg are produced on 2 vertical (Disamatic C3-B-350 and Disamatic 2013 LP) and 2 horizontal (HWS EFA-SD 5.5 and HWS HSP-3) fully automatic moulding lines. The Disamatic C3-B-350 line has a capacity of 300 moulds per hour. Melting is done in 5 sets of induction furnaces with 18.5 tonnes/hour of liquid metal; core shop, simulation, pattern shop and cleaning-grinding departments are in-house.
Kırşehir

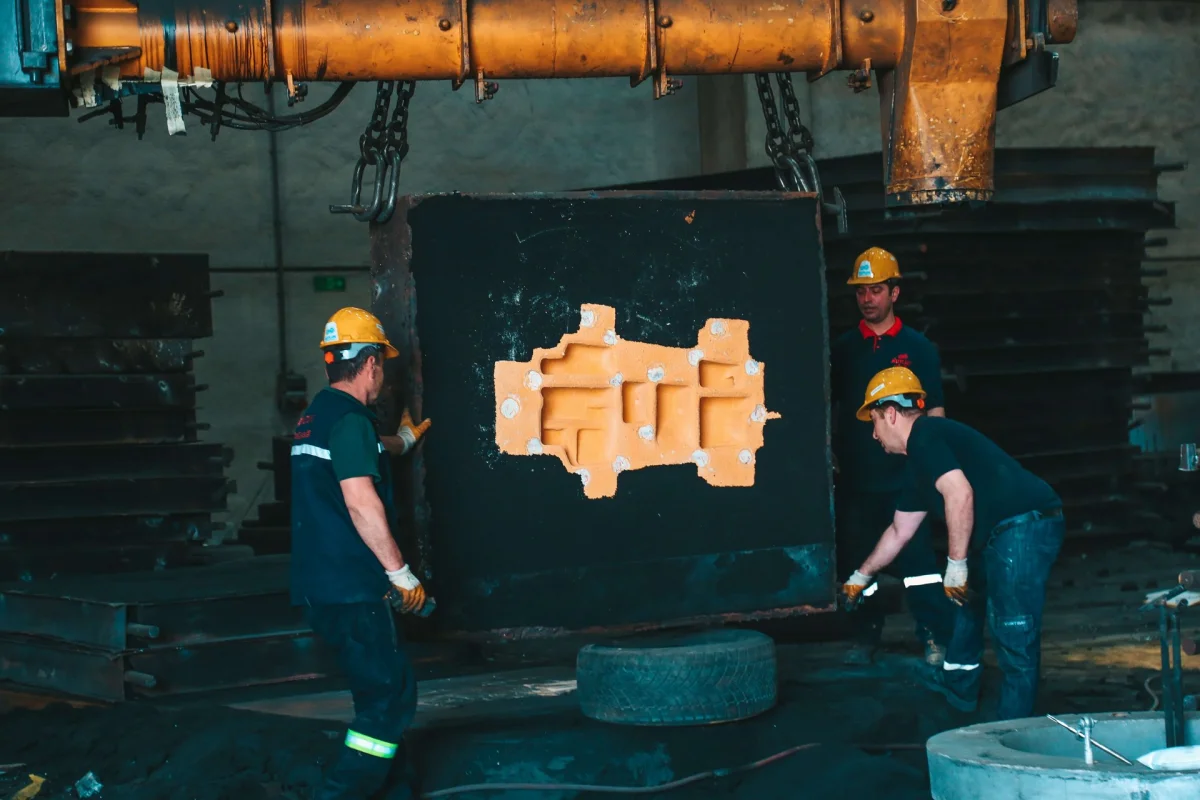

Kutluk Group
Contract Sand Casting Service
Sand Casting ServiceGrey iron, ductile iron, steel, stainless steel and aluminium sand casting is carried out to customer requirements in two foundries in Bursa and Bozüyük. The foundry is equipped to supply complex cored castings, and casting simulations are run according to customer needs to identify possible defects and critical points. The Bozüyük plant has 5 induction furnaces, 2 sand mixers, a reclamation unit, a shot blasting station, a heat treatment furnace, 5 overhead cranes and a metallography laboratory, focusing on large-scale castings.
Bursa · Hasanaga Organized Industrial Zone

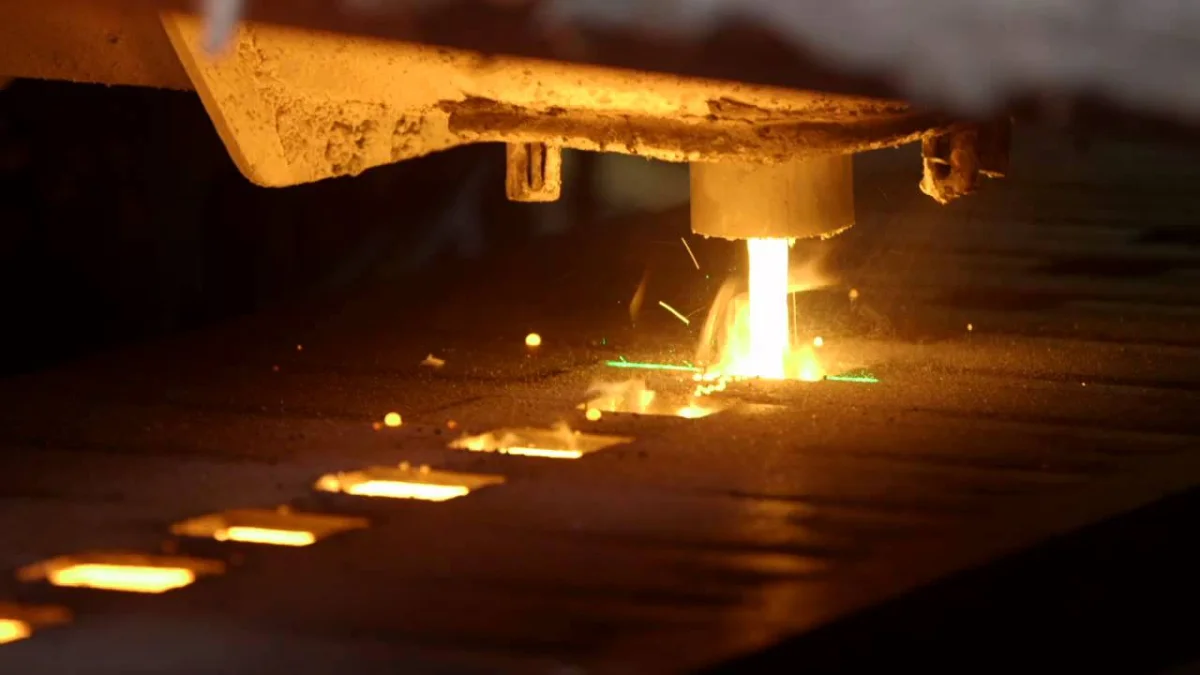

Turcont Mühendislik İmalat San ve Tic Ltd. Şti.
Casting & Foundry Services
Sand Casting ServiceAutomatic moulding, hand moulding, investment casting, shell moulding, chemically bonded (furan resin) sand moulding and semi-automatic moulding are applied depending on customer requirements. Automatic moulding produces parts between 1,0 kg and 60 kg at a typical rate of 140 moulds per hour, with 700 x 600 mm mould size and 0,15 mm typical tolerance. Chemically bonded sand moulding with moulds up to 1.600 x 1.200 mm serves extra-large or high-strength castings.
Konya
Kuşcular Metalurji Makine Sanayi Ticaret A.Ş.
Sand Moulding and Core Casting
Sand Casting ServiceCasting production using shell sand, resin sand, CO₂ process and sand moulding methods. Cores are produced on shell, CO₂ and hot core machines; cast parts are cleaned in the cleaning unit, grinding machines and finishing grinding stations. Material quality is monitored on the spectrometer metal analysis line.
İstanbul
