Service description
Quality and certifications
Certifications defined on the company profile (read-only)
- ISO 9001
More services from this company

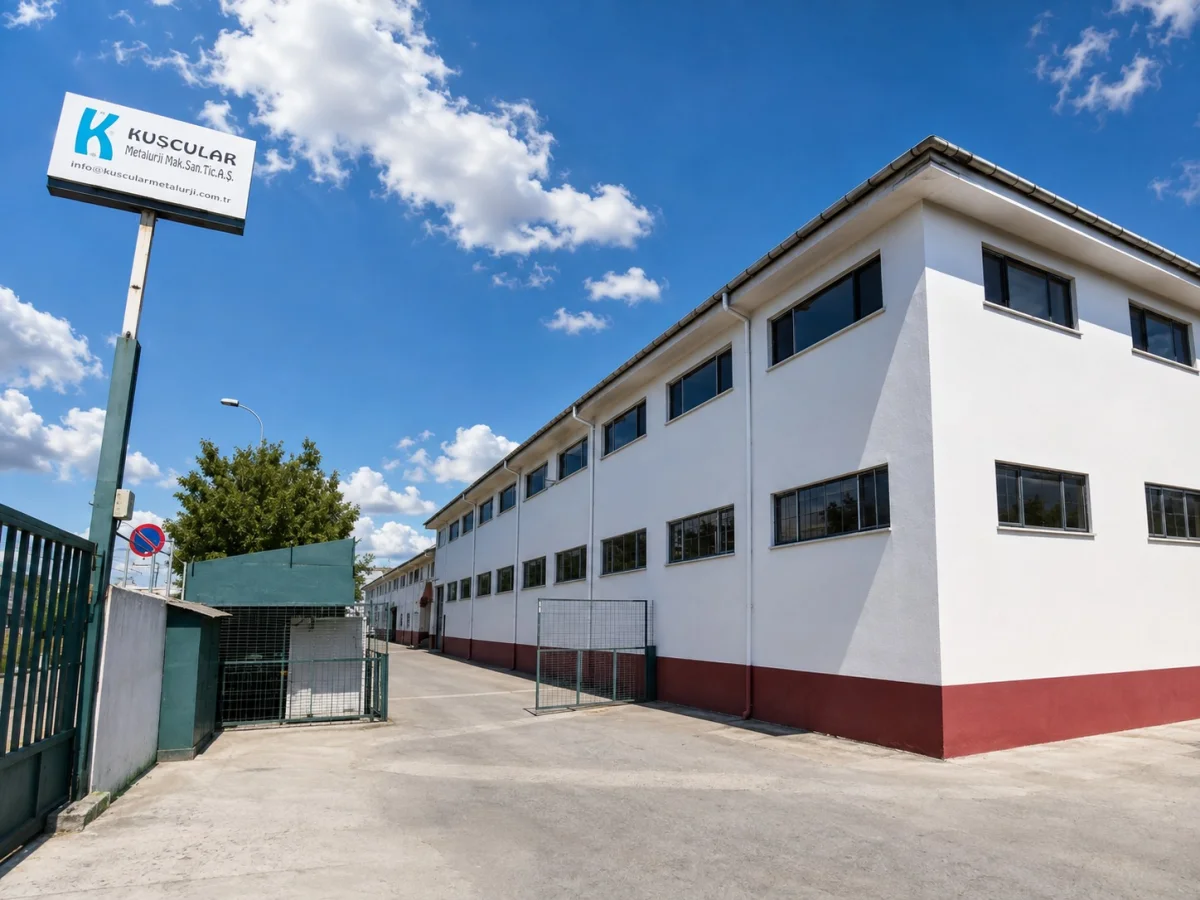

Kuşcular Metalurji Makine Sanayi Ticaret A.Ş.
Grey and Ductile Iron Casting
Iron Casting ServiceGrey iron casting for parts requiring strength and machinability, and controlled ductile iron casting for parts with high impact and fatigue resistance. With 300 tonnes per month capacity and 0.25–30 kg component weight, casting from prototype to series is carried out with an induction furnace, a DISA moulding line and a horizontal moulding line.
İstanbul
Kuşcular Metalurji Makine Sanayi Ticaret A.Ş.
Pattern Design and Pattern Production
Casting ServiceProduction-ready pattern designs developed around component geometry and process requirements, and customer-specific pattern production in wood, aluminium, metal and araldite. The pattern shop, which began with machine pattern making in the 1980s, validates design and process before serial production through engineering support and prototype production.
İstanbul
Related services
Çemaş Döküm Sanayi A.Ş.
Grey and Ductile Iron Sand Casting
Sand Casting ServiceGrey and ductile iron parts from 0.08 kg to 350 kg are produced on 2 vertical (Disamatic C3-B-350 and Disamatic 2013 LP) and 2 horizontal (HWS EFA-SD 5.5 and HWS HSP-3) fully automatic moulding lines. The Disamatic C3-B-350 line has a capacity of 300 moulds per hour. Melting is done in 5 sets of induction furnaces with 18.5 tonnes/hour of liquid metal; core shop, simulation, pattern shop and cleaning-grinding departments are in-house.
Kırşehir
Kutluk Group
Contract Sand Casting Service
Sand Casting ServiceGrey iron, ductile iron, steel, stainless steel and aluminium sand casting is carried out to customer requirements in two foundries in Bursa and Bozüyük. The foundry is equipped to supply complex cored castings, and casting simulations are run according to customer needs to identify possible defects and critical points. The Bozüyük plant has 5 induction furnaces, 2 sand mixers, a reclamation unit, a shot blasting station, a heat treatment furnace, 5 overhead cranes and a metallography laboratory, focusing on large-scale castings.
Bursa · Hasanaga Organized Industrial Zone
Turcont Mühendislik İmalat San ve Tic Ltd. Şti.
Casting & Foundry Services
Sand Casting ServiceAutomatic moulding, hand moulding, investment casting, shell moulding, chemically bonded (furan resin) sand moulding and semi-automatic moulding are applied depending on customer requirements. Automatic moulding produces parts between 1,0 kg and 60 kg at a typical rate of 140 moulds per hour, with 700 x 600 mm mould size and 0,15 mm typical tolerance. Chemically bonded sand moulding with moulds up to 1.600 x 1.200 mm serves extra-large or high-strength castings.
Konya
Yavuz Döküm San. ve Tic. Ltd. Şti.
Resin Sand Moulding and Heavy Casting Production
Sand Casting ServiceLarge products up to 3000x4000x1200 mm are moulded using a resin sand preparation mixer with a capacity of 10 tons/hour. Moulds are coated with refractory wash in a dedicated coating machine. Smaller jobs are hand moulded in synthetic sand, and the core shop produces Cold Box, CO2 and resin-bonded cores with a 6 tons/hour mixer.
Manisa · Muradiye Organized Industrial Zone
