Bagomax Fully Automatic Bag Opening and Emptying Machine
Special MachineryT-MAX Bagomax takes 25 kg plastic, paper or jute bags from the pallet, opens them automatically and empties them into a collection hopper. Moving hooks carry the top pallet layer over rotating blades; a specially designed shaking method achieves an emptying rate above 99.98%. Capacity reaches up to 15 t/h depending on the application; the whole system including pneumatic conveying is controlled by a Siemens S7 PLC, with optional Bag Compactor and pallet stacker.
İstanbul
Tepro Makina ve Otomasyon Sistemleri San. ve Tic. A.Ş.
Silomax Aluminium Raw Material Silos
General Storage SystemsT-MAX Silomax is an aluminium or SST-304 stainless raw material storage silo for indoor and outdoor use in high-capacity plastics plants. It has a modular panel design and is built in standard or customer-specific sizes for regrind, PET flake, powder, free-flowing and difficult-flowing materials. Shell thickness and foundation are determined by computer-aided analysis considering seismic regulations, snow and wind loads and bulk density; it offers POKE-YOKE filling and radar level monitoring.
İstanbul
Related products
Pro Makina

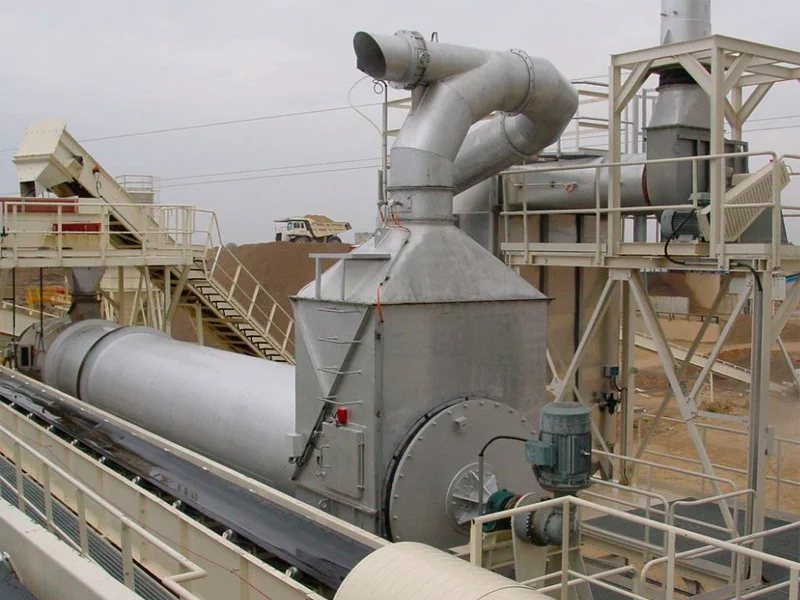

Rotary Drum Dryer
Process Equipment ProductRotary drum dryer designed to reduce, in a controlled way, the moisture of bulk solids such as silica sand, perlite, wood shavings, mining and mineral raw materials, organic fertilizer and granular fertilizer. Initial and target moisture, capacity, particle size, bulk density, abrasiveness and thermal sensitivity are the main design inputs; it operates with direct or indirect hot gas in co-current or counter-current flow. It is engineered as a single drum or a complete drying line with burner, fan, cyclone, filter and discharge equipment.
Eskişehir
Pro Makina

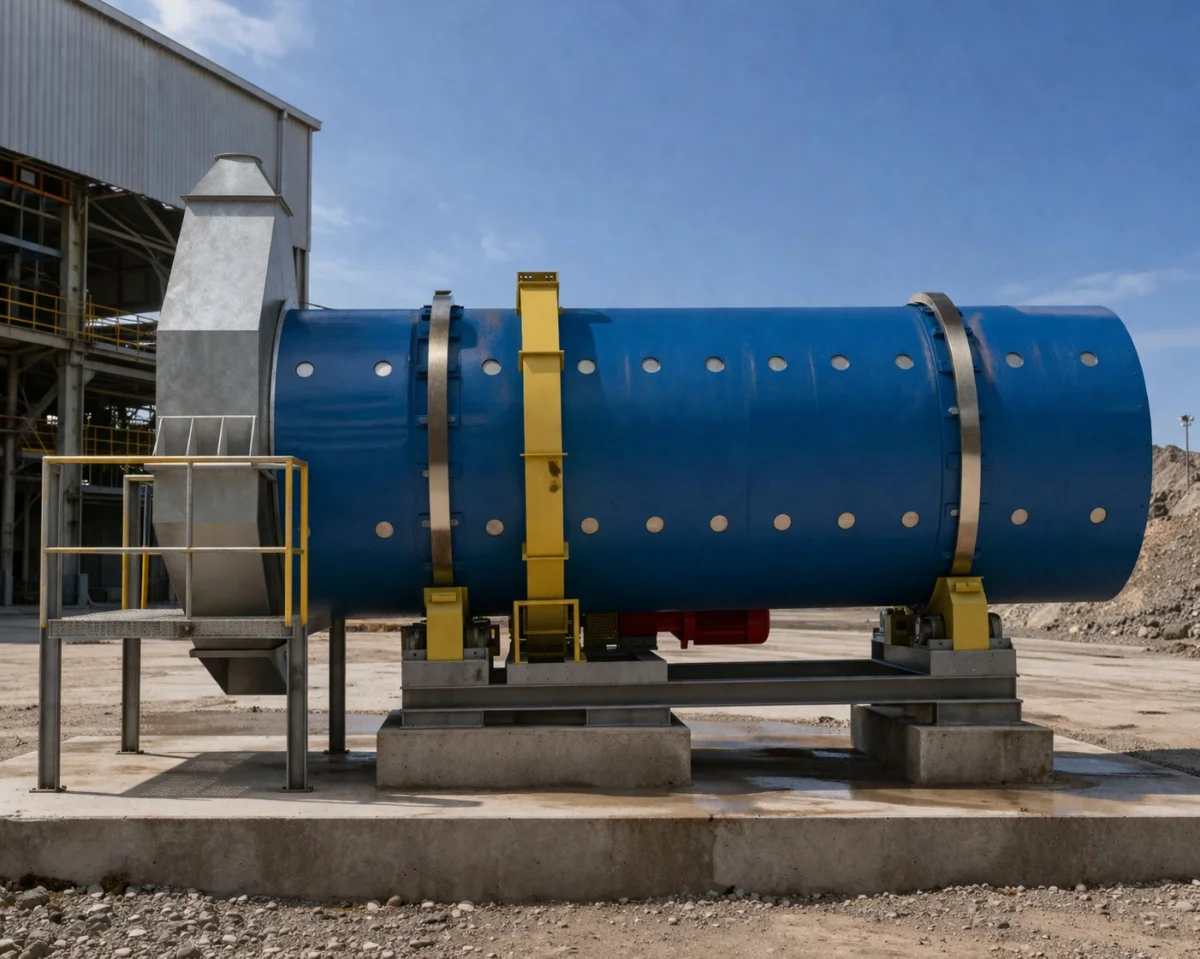

Rotary Drum Granulator
Process Equipment ProductWet granulation equipment in which fine or powdered raw materials are wetted with water, steam or a liquid binder and formed into granules through rotary motion. Drum diameter, length, inclination, speed and internal geometry are determined by target granule size, recycle ratio, liquid/solid ratio and product strength. It is designed with project-specific diameter and length, adjustable speed and inclination, nozzle and liquid line integration, together with the dosing, drying, cooling and screening line.
Eskişehir
RTK Makina

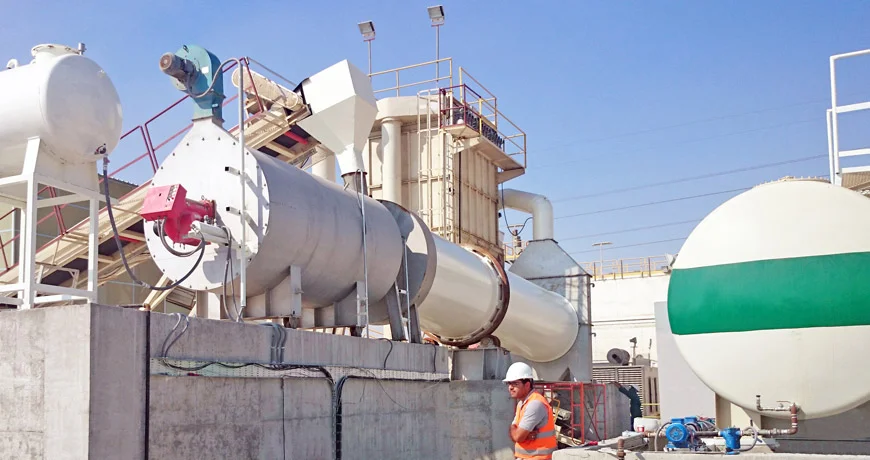

Rotary Drum Dryer
Process Equipment ProductDrying is one of RTK's main fields; complete drying solutions are built from material handling to automation, with dust filtration included. Materials dried include sand, GBFS, anthracite coal, gypsum, calcite and agricultural fibrous products. The RTK test centre has a double-pass Ø960×4000 mm test rotary dryer with 300 kW thermal power.
İstanbul · Ikitelli Organized Industrial Zone
RTK Makina

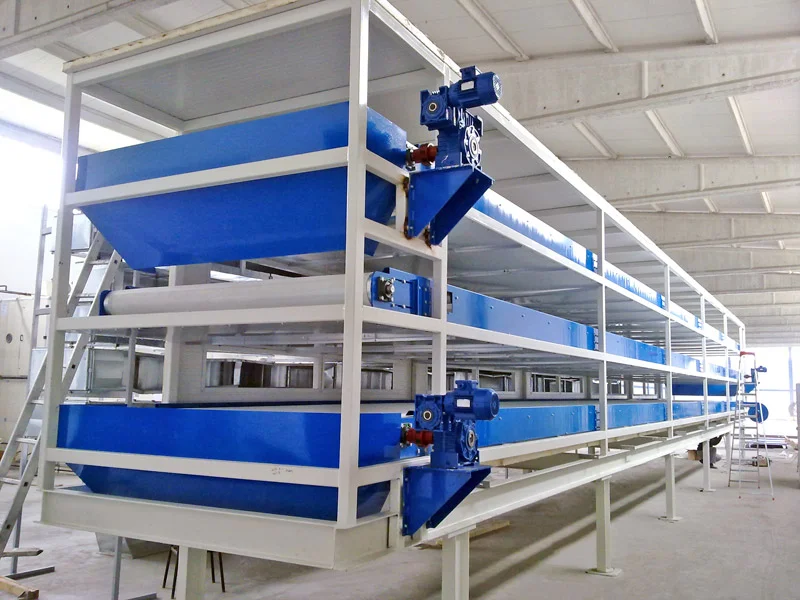

Multi Layer Belt Dryer
Process Equipment ProductRTK's own belt drying technology achieves low temperature and long drying time with a multi-layer design. Dryers of 10-30 m length each and 1-7 layers are built; monoblock dryer tunnels are delivered by special trucks for easy installation. Automation lets the customer create its own drying programs for herbs such as mint, melissa and chamomile; example: 7 layers x 2 m x 10 m dryer with Teflon belt.
İstanbul · Ikitelli Organized Industrial Zone
