Tepro Makina ve Otomasyon Sistemleri San. ve Tic. A.Ş.
Bagomax Fully Automatic Bag Opening and Emptying Machine
Special MachineryT-MAX Bagomax takes 25 kg plastic, paper or jute bags from the pallet, opens them automatically and empties them into a collection hopper. Moving hooks carry the top pallet layer over rotating blades; a specially designed shaking method achieves an emptying rate above 99.98%. Capacity reaches up to 15 t/h depending on the application; the whole system including pneumatic conveying is controlled by a Siemens S7 PLC, with optional Bag Compactor and pallet stacker.
İstanbul
Tepro Makina ve Otomasyon Sistemleri San. ve Tic. A.Ş.
Drymax Dry Air Generators (LD Series)
Process Equipment ProductT-MAX Drymax LD series dry air dehumidifiers are mainly used for drying engineering plastics. A silica gel cartridge rotor delivers dry air with a dew point down to −50 °C under ideal conditions. The series comprises 14 models, the largest supplying up to 4,000 m³/h of dry air, and features precise P.I.D. temperature control, two condensers and a mechanically interlocked main power switch.
İstanbul
Related products
Mysilo Tahıl Depolama Sistemleri San. A.Ş.

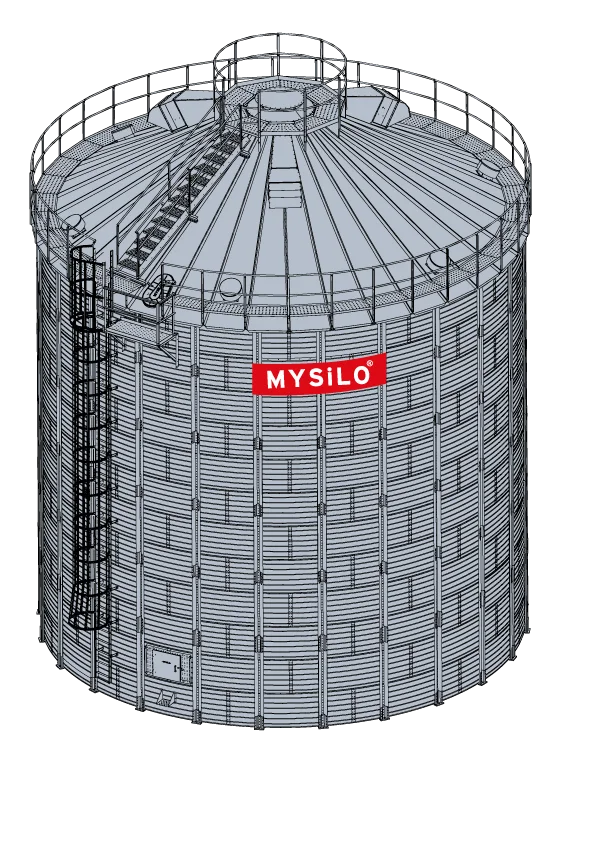

Flat Bottom Grain Silo (F Model)
General Storage SystemsFlat bottom silos for long-term, high-tonnage grain storage are offered in diameters from 4.58 m to 41.25 m with storage capacity up to 38,736 m³. They are built from narrow-corrugated wall sheet with a 65 mm pitch and a total of 600 g/m² galvanizing on both faces. Six-bend stiffeners, seven-bend 75 mm deep roof panels and grade 10.9 bolts resistant to at least 600 hours of salt spray are used.
Aksaray · Aksaray Organized Industrial Zone
Mysilo Tahıl Depolama Sistemleri San. A.Ş.

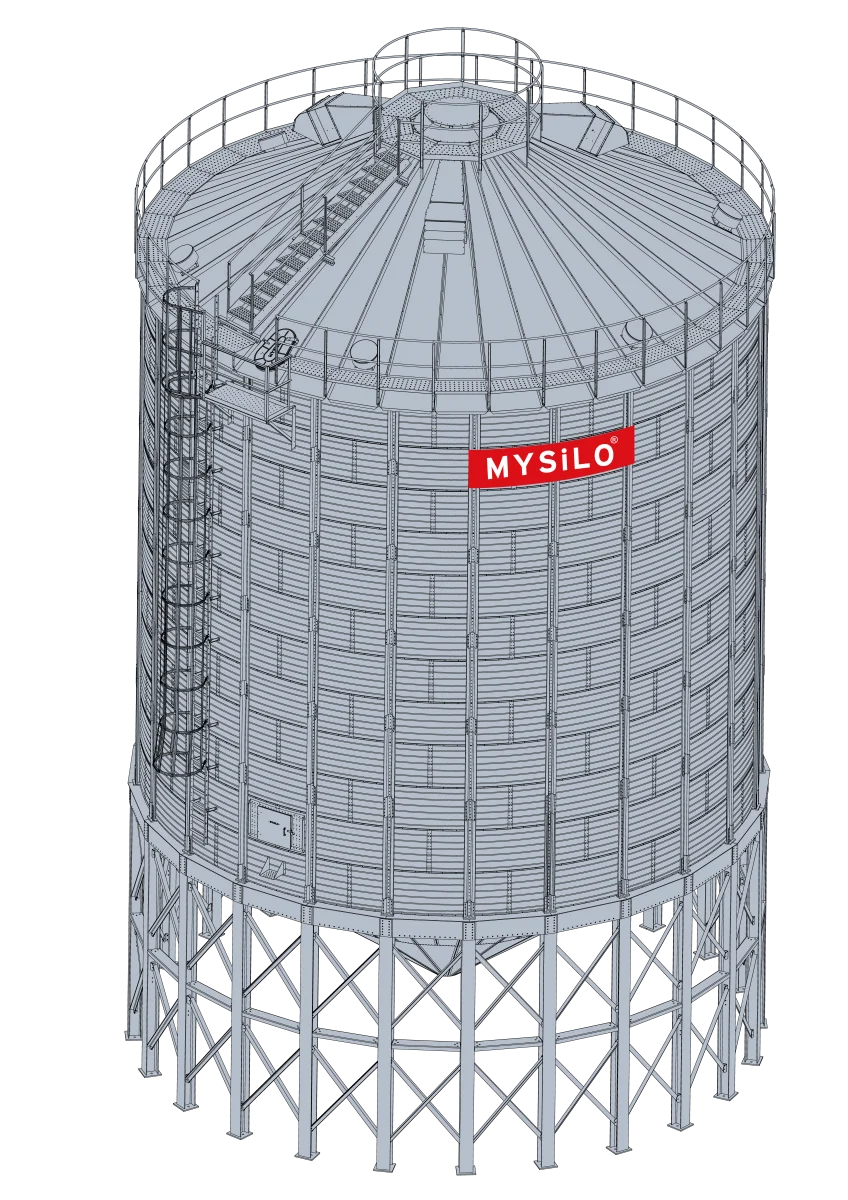

Commercial Hopper Bottom Silo (CH Model)
General Storage SystemsCommercial hopper bottom silos are used for continuous filling and discharge, blending and pre-drying classification in storage plants. The hopper angle is offered as 37, 40, 45 or 60° depending on the stored product and silo diameter. Produced in diameters from 4.58 m to 12.33 m with up to 2,528 m³ capacity, the silos stand on a dedicated steel structure with support columns that transfer loads to the ground.
Aksaray · Aksaray Organized Industrial Zone
Karacalı Makina

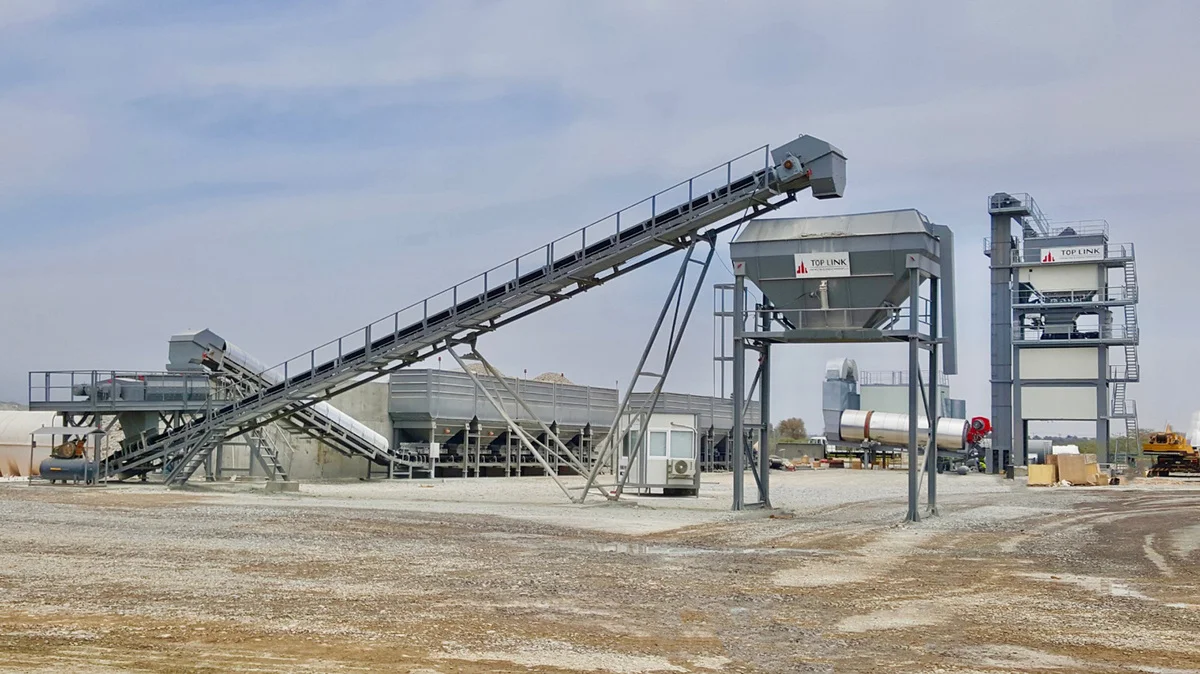

Silo and Bunker Systems
General Storage SystemsSilos are manufactured for the safe storage of grain, feed, cement, powder and granular materials. Bunker and silo systems are hygienic and durable designs tailored to stocking and feeding needs, offering long years of trouble-free use with controlled feeding systems. Bunker installations for industrial production lines are also manufactured and assembled.
İzmir
Ersel Fabrika Malzemeleri

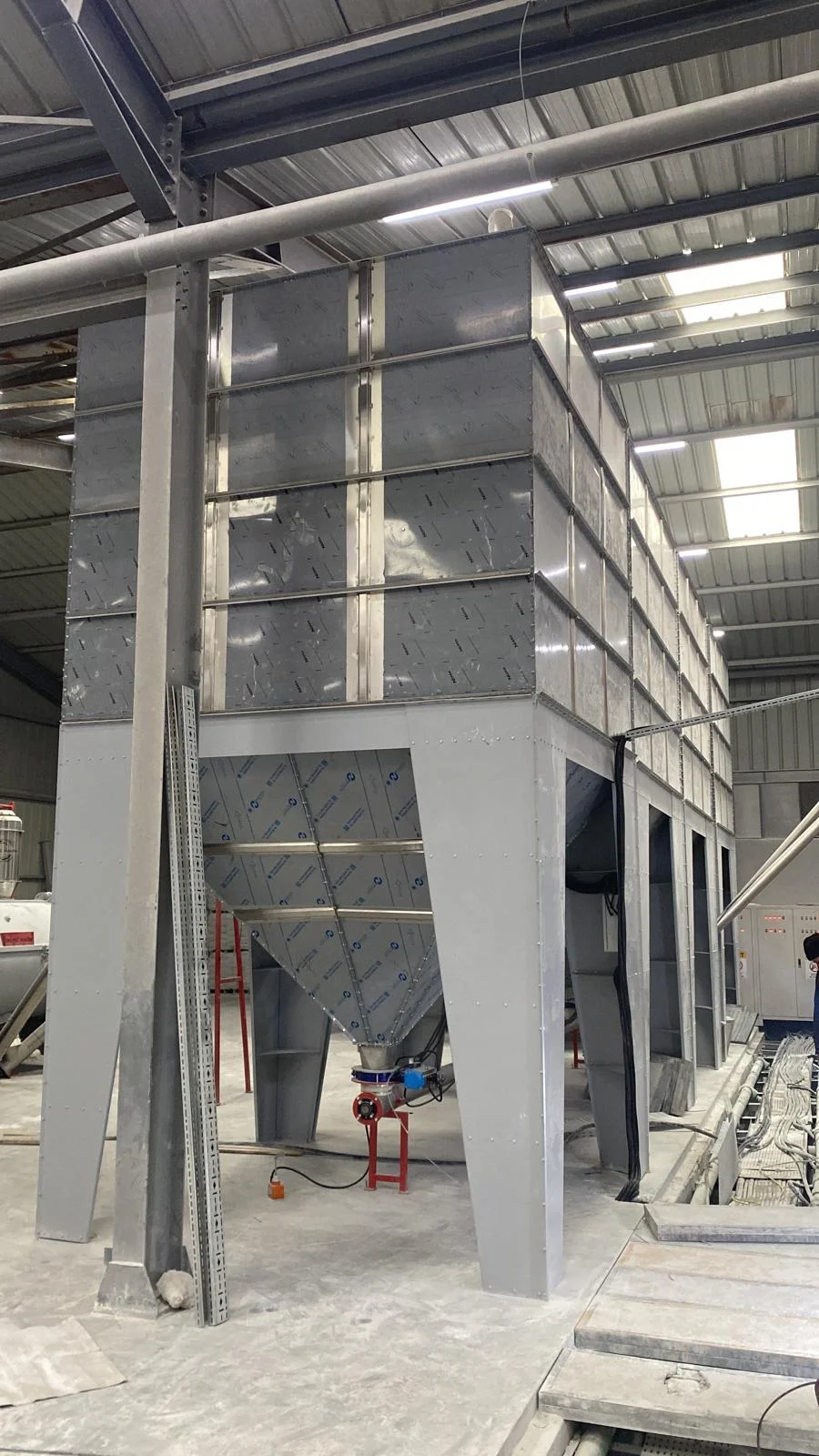

Silo Manufacturing
General Storage SystemsSilos are systems used to store raw materials such as cement, calcite, lime, gypsum, wheat, flour, ash, grain, granules, PVC and coal dust. They operate together with equipment such as silo-top jet pulse filters, safety valves, vibrating cones and loading bellows. They are produced bolted or welded in different capacities depending on the application and the filling and discharge arrangement.
Tekirdağ
