Ay Yayları
Standard Model Cleaning Basket
Special MachineryThe standard model basket is used on flat facades without recesses. Basket load capacity is 240 kg and self-weight is 270 kg. Two 1 kW motors provide vertical travel; Ø8 galvanized steel rope is used and excess rope is wound on a drum. The door group is steel box profile; other parts are aluminum. The basket has two safety (blockstop) brakes, two overload switches, four upper switches and two lower level switches; vertical and roof machine movements are controlled from inside the basket.
Ankara
Ay Yayları
Rotating Basket
Special MachineryA second platform on the basket can rotate 90 degrees around its axis to deliver personnel into facade recesses. Used for recesses between 2 m and 4 m, preferred when recess depth is the same on all facades. Load capacity 240 kg, basket weight 400 kg. Two 5 kW motors provide vertical travel; Ø10 galvanized steel rope is used with excess wound on a drum. Door group is steel box profile; other parts aluminum; safety brakes and load/upper/lower switches are standard.
Ankara
Related products
Esen Kodlama
Handheld Inkjet Printer
Special MachineryHandheld inkjet printers are offered for plants without a fixed line, for low- or medium-volume production, or for marking products that cannot be moved. The light design, rechargeable battery and built-in touchscreen allow printing with the trigger. Text, date, time or counter settings are made on the device screen without a computer; maximum print height is 25.4 mm. Solvent-based ink cartridges are used for permanent, fast-drying marks on food, pharmaceutical, cosmetics, plastic, wood, glass and metal parts.
İstanbul
Aspar Asansör Aksamları Pazarlama San. Tic. A.Ş.
OSG HS Bi-Directional Overspeed Governor
Special MachineryOSG HS is Aspar’s bi-directional overspeed governor in the elevator safety-equipment class. For type OSG HS the minimum rated speed is 2 m/s and the maximum rated speed is 3 m/s; the minimum sheave diameter is Ø300 mm and the rated rope diameter dnom is 6-8 mm. Bearings are double sealed ball bearings; travel direction is up and down. The governor is safety equipment under Lift Directive 2014/33/EU and complies with EN 81-20/50. Technical details are published in the company’s user-manual PDF.
Ankara · OSTIM Organized Industrial Zone
Ak-em Makine Sanayi Ticaret Limited Şirketi
18-Cavity Bims Block Machine
Special MachineryAn automatic bims (pumice-block) machine that moulds 18 blocks per cycle for high-capacity plants, using hydraulic pressing and vibration to form compact, homogeneous blocks. Each cycle moulds 18 blocks in a 3×6 layout; cycle time is 16–20 s and daily output is around 30,000 pieces depending on shifts. Standard block size is 200×400×185 mm, changeable with other mould sets. The machine footprint is 3,500×3,500 mm with 5,400 mm overall height; pressing is hydraulic at 20 kN (mix-dependent) with a frequency-adjustable electric vibration motor. Control is a PLC automatic cycle with an HMI touch panel; safety includes a light curtain, cover lock, e-stop and over-pressure protection. Manufacture follows the TS EN 1090 welding and fabrication standard.
Aksaray · Aksaray Organized Industrial Zone
Egeay Makina

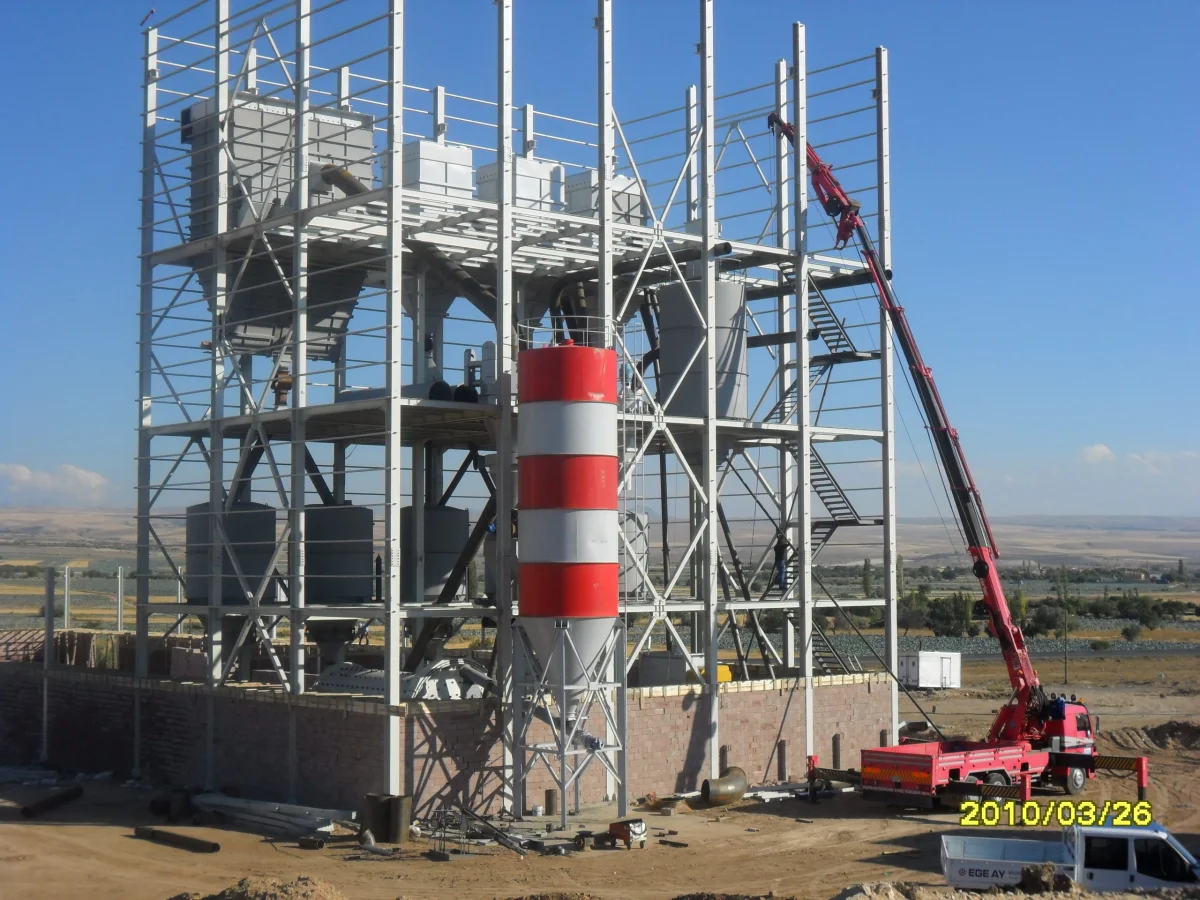

Calcite Micronising Plant
Special MachineryEGEAY Machinery designs the plant according to customer demands, desired process and given capacity and makes turnkey installations of natural calcite and coated calcite plants. Material fed from the raw material bunker is transferred with belt conveyors to the crushers; materials exiting the crushers are transferred with spirals and elevators and stocked in silos. Product taken from stocking silos is ground in ball mills to the desired microns; product exiting the mill is separated by separators and goes under the filter to packaging and big bag filling machines. Calcite powder produced in these plants is used in paint, plastics, construction chemicals and food industries.
Aksaray · Aksaray Organized Industrial Zone
