Rail Components

Epsilon Solentek Raylı Sistemler A.Ş.

Double-Deck Covered Car Carrier Wagon

HCCRS-type double-deck covered car carrier wagon designed for G2 gauge; carries up to 12 vehicles with 6 MPV or 6 cars on the upper deck and 6 cars on the lower deck. Tare 39 t, axle load 18 t, buffer-to-buffer 31,000 mm, loading length 29,700 mm, loading width 2,870 mm; wheel diameter 760 mm, axle spacing 9,000 mm, TSI-G2 kinematics, minimum curve radius 120 m in block train and maximum speed 100 km/h.

Eskişehir · 75th Year SME Organized Industrial Zone

Epsilon Solentek Raylı Sistemler A.Ş.

Ballast Hopper / Spreading Wagon

FACCPPS-type ballast hopper/spreading wagon for G1-TSI gauge; pneumatic and manual discharge for controlled ballast spreading inside and outside the rails, including precise discharge at rail-head level (−130/−100 mm). Width 3114 mm, height 3685 mm, track gauge 1435 mm, buffer-to-buffer 12,200 mm; tare 24 t, 4 axles, Y25 Lsd1 bogie, 920 mm wheels, pivot centres 7160 mm, capacity 32.5 m³, max speed 100 km/h, SW GP brake.

Eskişehir · 75th Year SME Organized Industrial Zone

Epsilon Solentek Raylı Sistemler A.Ş.

Switch and Panel Transport Wagon

UAFNS-type switch and panel transport wagon; carries wooden, metal or concrete switches new or used without dismantling, supports sleepered sections up to 4.8 m, left and right switches, with onboard power and lighting. Tare 40.3 t, capacity 40 t, buffer-to-buffer 25,460 mm, G2-TSI gauge, Y25 Lsdi-KC1 bogie, 920 mm wheels, axle load 22.5 t, KE-GP-A(K) brake, track gauge 1435 mm, min. curve 75 m. Five units were delivered to TCDD Ankara Behiçbey in May 2016.

Eskişehir · 75th Year SME Organized Industrial Zone

Erciyas Rail

Zans 98 m³ Mineral Oil Tank Wagon

Weight and volume-optimised 98 m³ mineral oil tank wagon. The design reduces tare by 1.7 t versus conventional 98 m³ sector-standard models, raising payload and adaptability across RID classes. Key figures: volume 98 m³, max payload 67.5 t, tare approx. 22.5 t, axle load 22.5 t, length over buffers 16,400 mm, max speed (empty/laden) 120/100 km/h. Tank code L4BH, carbon steel P355N, bogie Y25Ls-K (H-type). Compliance: RID, UIC, EN, TSI WAG; loading gauge TSI G1.

İstanbul

Erciyas Rail

Sggmrrs 90’ Tandem Intermodal Wagon

Multi-purpose 8-axle tandem intermodal wagon for containers and swap bodies with up to 148 t payload. It maximises volume on a shorter train length for high-volume block trains. Key figures: max payload 148 t, tare 31.8 t ±200 kg, max gross mass 180 t, axle load 22.5 t, length over buffers 30,140 mm, loading length 2×14,130 mm, max speed 120 km/h, wheel diameter 920 mm. Bogie Y25Ls(s)1-K. Compliance: TSI WAG, TSI NOI, UIC, EN, RIV; gauge G1 · TEN GE · GI1.

İstanbul

Erciyas Rail

Aluminium Metro Carbody

High-volume aluminium metro carbody manufactured for Hyundai EURotem for Istanbul Metro lines M7 and M12. 144 units have been in production since 2023. Carbodies are built on the aluminium carbody line in Hendek, Sakarya; Erciyas Rail is Türkiye's first and only manufacturer of aluminium passenger carbodies. Material is lightweight aluminium; carbody frames are produced on the 48 m CLOOS robotic welding line with advanced aluminium MIG/TIG welding. Metro type within the passenger carbody family.

İstanbul

FZK Mühendislik ve Sınai Yatırımlar A.Ş.

Y25Ls(s)1-K Classic Bogie

Y25Ls(s)1-K classic freight wagon bogie with TSI design and production certification. Built with high material quality, precision manufacturing and quality control for long service life; it is the classic model in the FZK Y25 bogie family used internationally. New project investments continue to expand TSI-certified models and production capacity.

Kocaeli

FZK Mühendislik ve Sınai Yatırımlar A.Ş.

Y25 LSDI(F)-KC1 H Type Compact Bogie

Y25 LSDI(F)-KC1 H type compact freight wagon bogie with TSI design and production certification. FZK supplies this model internationally; R&D, precision manufacturing and quality control support reliable, long-life bogie production. Annual bogie capacity is being increased through new investments.

Kocaeli

Babacan Kauçuk

Chevron Spring

Chevron spring is listed by Babacan Kauçuk in railway spare parts with stock code 002; the models field says rail systems. The chevron-springs page states that the first domestic chevron-spring production in Turkey was in 2009, with 1,800 chevron mounts delivered for Ankara Metropolitan Municipality Bombardier metro vehicles. Production uses transfer molding, S355 J2+N steel and field-proven rubber formulations. The product page says railway parts can be made, on request, in materials meeting the EN 45545-2 fire and smoke standard.

Ankara · OSTIM Organized Industrial Zone

Karabük Demir Çelik Sanayi ve Ticaret A.Ş.

Railway Rails

Vignole rails to EN 13674-1 and UIC 860 and grooved rails to EN 14811 are produced. The range includes 33E1, 46E2, 49E1, 50E4, 54E1, 54E4, 60E1, 60E2 and UIC49, UIC50, UIC54, UIC60 profiles plus 59R2, 60R1 and 60R2 grooved rails, in steel grades such as R260, R350HT, 900A and 900B, backed by TÜV AUSTRIA manufacturing qualification certificates.

Karabük

Dimsa Raylı Sistemler Otomotiv ve Savunma San. Ltd. Şti.

Sand Box

Sand box produced within the welded fabrication range for railway vehicles. The body is made from aluminium, stainless or carbon steel using 4 kW laser cutting, press brake bending up to 3 m and TIG, MIG-MAG or laser welding. Production is carried out under the TS EN 15085 CL1 welding certificate and in compliance with EN 45545-2.

Sakarya

Dimsa Raylı Sistemler Otomotiv ve Savunma San. Ltd. Şti.

Battery Box

Welded battery box for rail vehicles. Sheet parts are prepared by laser cutting and press brake bending, aluminium, stainless and carbon steel are joined by TIG, MIG-MAG or laser welding, and the boxes are painted in wet paint booths. Produced under TS EN 15085 CL1 and in compliance with EN 45545-2.

Sakarya

Epsilon Solentek Raylı Sistemler A.Ş.

Locomotive Components Manufacturing and Overhaul

Specifically for locomotive manufacturers, we produce niche components such as doors, sandboxes, filter boxes, and Al cove cabinets with high precision to ensure the functional and aesthetic integrity of locomotives. We also support the uninterrupted operation of locomotives by revising worn or damaged parts. These specialized components play a crucial role in ensuring the operational efficiency and safety of locomotives.

Eskişehir · 75th Year SME Organized Industrial Zone

Epsilon Solentek Raylı Sistemler A.Ş.

Wagon and Railway Construction Machinery Design, Production and Overhaul

We design, manufacture, and overhaul comprehensive railcar and railway construction machinery to extend vehicle service life and meet current standards. Projects cover the initial design phase, prototype production for functionality testing, pre-series production before first series, and large-scale series production so vehicles operate at full capacity and safely.

Eskişehir · 75th Year SME Organized Industrial Zone

Erciyas Rail

ECM-Certified Maintenance and Overhaul

Maintenance, repair and overhaul for freight wagon fleets in service, under Erciyas Rail's Entity in Charge of Maintenance (ECM) certification. Every EU freight wagon must have an ECM, certified under Regulation (EU) 2019/779 since June 2020. Work is carried out at the Sivas plant, which combines the freight wagon production line with dedicated maintenance and overhaul capacity. A single point of contact for fleets worldwide.

İstanbul

Erciyas Rail

Freight Wagon and Bogie Spare Parts

Genuine spare-parts supply for Erciyas Rail freight wagons and Y25 bogies. Parts are supported from the Sivas plant's production and maintenance capacity, with a single point of contact for as long as the fleet is in service. Coverage includes Y25Ls(s)1-K, disc-braked Y25Lsd(f)-KC1 and H-type Y25Ls-K bogies plus components for tank, intermodal, platform and hopper wagon models. Quote and stock requests go to [email protected].

İstanbul

Erciyas Rail

Rail Project Management

End-to-end rolling stock delivery as general contractor or joint venture leader, with a single point of contact. Erciyas Rail coordinates design, manufacturing, certification and delivery. Reference projects include VTG tank-wagon series, Wascosa and VTG intermodal wagons, IRR tank wagons, DB Cargo car carriers, and Hyundai EURotem and TÜRASAŞ passenger carbody programmes. Scope is clarified via the quote configurator or [email protected].

İstanbul

Babacan Kauçuk

Railway Bogie Spare Part Manufacturing

The railway bogie spare-parts page describes Babacan Kauçuk production of primary-suspension mounts, chevron springs, laminated rubber springs, bushes and rubber-to-metal mounts for bogies on trains, metros, trams and freight wagons. Parts use dedicated rubber-to-metal formulations. The same page lists materials meeting DIN EN 45545-2 fire resistance, mold design for custom production, prototype development and test support, and OEM cooperation. The primary-suspension page says the mounts are reinforced with S355 J2+N steel and that hydraulically damped models are available on request.

Ankara · OSTIM Organized Industrial Zone

Sirena Marine Denizcilik San. Tic. A.Ş.

Composite Parts Manufacturing for Rail Systems

Sirena Marine started mass production in the rail sector through the production of composite parts for the Hyundai Rotem locomotives made by Tülomsaş. All composite parts for the General Electric locomotives built at Tülomsaş, all composite parts for CRRC MNG's Ankara underground project and composite parts for Bozankaya trolley projects bear the signature of Sirena Marine. The company is one of the leading manufacturers with IRIS certification and holds the EN 15085 certification.

Bursa

Petes Makina Sanayi ve Ticaret A.Ş.

Rail Maintenance Equipment Projects

On a project basis Petes designs and builds train lifting jacks, bogie drop systems, functional lifting systems (from wheels and car body), fixed underfloor wagon/train lifting and bogie functional and surface turning systems. Underfloor lifting equipment fully designed by Petes and 100% domestically produced is delivered to railway maintenance depots.

İstanbul

Özvagon Vagon Demiryolları Yedek Parça San. Tic. Ltd. Şti.

Railway Welded Fabrication

Welded fabrication of wagon and bogie components. MIG/MAG and TIG welding are carried out in-house, and because of this welded production the company holds EN 15085-2 CL1 certification. Welded parts are checked with magnetic particle (MT), penetrant (PT) and visual (VT) non-destructive tests.

Ankara · Baskent Organized Industrial Zone

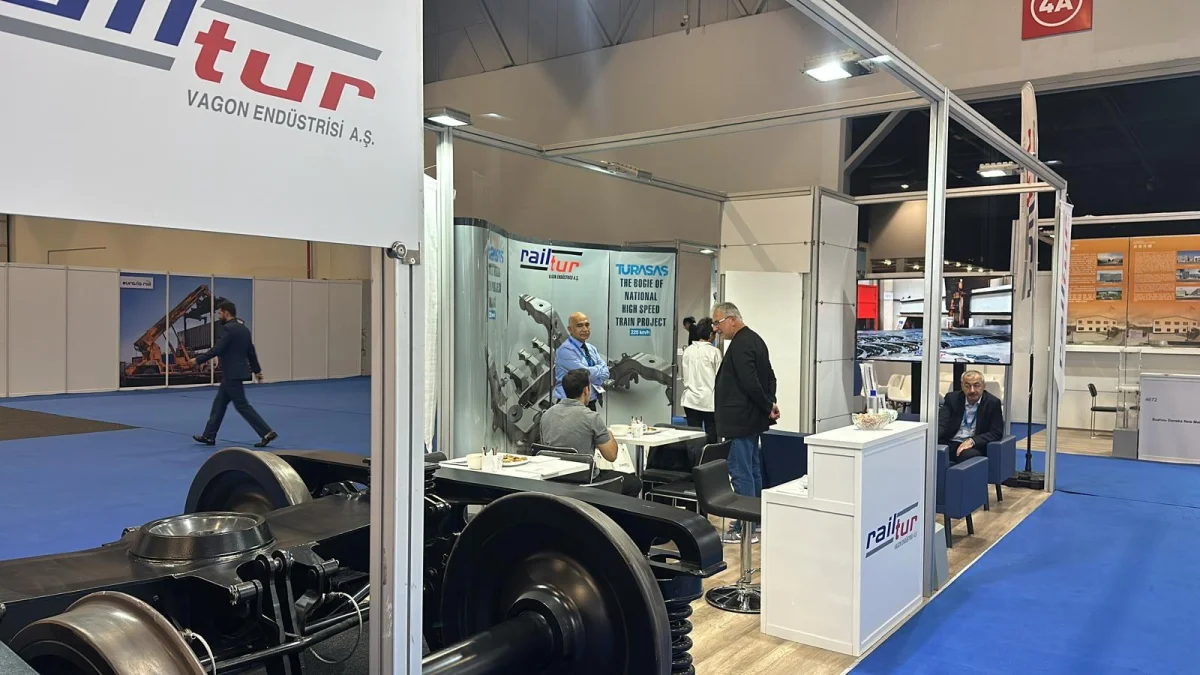

Railtur Vagon

Heavy Maintenance of Railway Vehicles

Product titles include heavy maintenance of railway vehicles and workshop equipment. The company page states service, maintenance and modernisation of products sold. Supplier qualification from European operators is mentioned.

Kayseri

Railtur Vagon

Bogie and Wagon Design / R&D

Kayseri

Inotra

Rail Component Manufacturing

Rail Component Manufacturing.

Sakarya · Sakarya I Organized Industrial Zone
