Service description
Machine park and production capabilities
Capabilities defined on the company profile (read-only)
- Dilovası OSB: temperleme, taşlama, kumlama, çift cam ve CNC
- Kartepe D-100: jumbo cam kesimi 5.000 m²/gün, ebat 2,25×3,21 m ve jumbo 3,21×6,0 m
- Kartepe: düz temperleme 2.500 m²/gün, kavisli temperleme 300 m²/gün
- Kartepe: ısıcam 1.200 m²/gün, laminasyon 1.000 m²/gün, saten cam 700 m²/gün
- Kartepe: kenar ve yüzey işleme 3.000 m²/gün, laminasyon kesim 1.500 m²/gün
- LiSEC ısıcam hattı; Bottero, Northglass, Bavelloni ve Bestmakina hatları
Quality and certifications
Certifications defined on the company profile (read-only)
- CE Marking
More services from this company
Temka Glass
Jumbo Glass Cutting

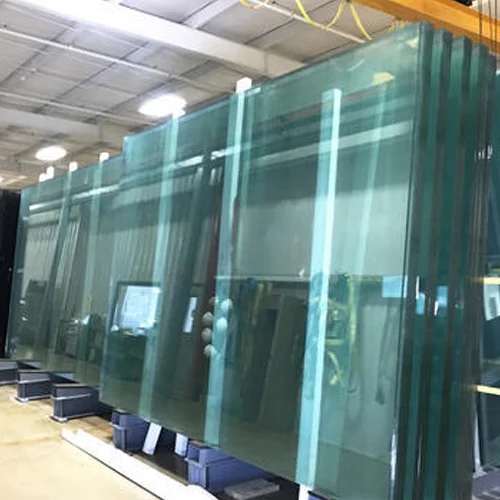

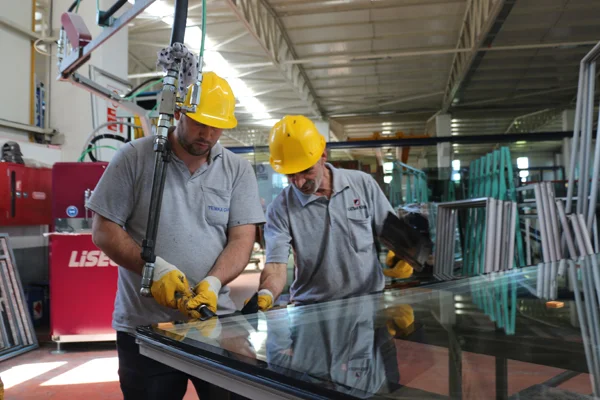

Construction Materials ServiceThe Kartepe plant on the D-100 publishes 5,000 m²/day jumbo glass cutting. Size range is 2.25 × 3.21 m standard and 3.21 × 6.0 m jumbo. The factory page states cold cutting on CNC machines for accuracy and cut-outs by bench techniques. The Dilovası OSB plant also lists a CNC machine.
Kocaeli̇ · Dilovasi Organized Industrial Zone
Temka Glass
Glass Tempering

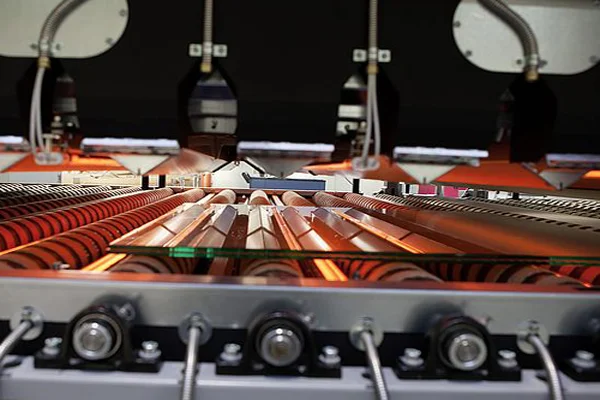

Construction Materials ServiceThe Kartepe D-100 plant publishes 2,500 m²/day flat tempering and 300 m²/day curved tempering. Curved size is 2.85 × 2.50 m with a 1,000 mm minimum radius. The second plant in Dilovası OSB also lists tempering; TS EN 12150 performance reports document thermally tempered safety glass from 4–10 mm. Tempered glass is processed for tensile strength, safety and impact resistance.
Kocaeli̇ · Dilovasi Organized Industrial Zone
