Özmaksan Isı Sanayi Ticaret A.Ş.
SCOTCH Super Boiler Superheated Water Boiler (OKSK Series)
Pressure Vessels ProductOKSK series high-pressure superheated water boilers: liquid and gas fired, three-pass, fire-tube, Scotch type. Capacity 120 kW – 25,000 kW (100,000 – 20,000,000 kcal/h), maximum operating temperature 200 °C and pressure 20 bar. Manufactured to 2014/68/EU and EN 12953 using EN10216-1 / P235GH seamless boiler tubes and certified EN10028 P235GH, P295GH, P355GH and P355NH plate. Superheater and economizer versions are available on request.
Gaziantep · Gaziantep 4th Organized Industrial Zone
Özmaksan Isı Sanayi Ticaret A.Ş.
MAXIDENS Boiler Condensing Hot Water Boiler (OYPK Series)
Pressure Vessels ProductOYPK series floor-standing condensing hot water boilers for liquid and gas fuels, designed on the three-pass combustion principle, providing 15-20% fuel savings. Front and rear tube plates, lower flue tubes and rear smoke box are made of corrosion-resistant stainless steel; the shell is insulated with 80 mm foil-faced glass wool. Compliant with 2009/142/EC, 92/42/EC, TS EN 303-1 and TS EN 15417, with 109.3% efficiency at 30 °C return water certified in TSE laboratories.
Gaziantep · Gaziantep 4th Organized Industrial Zone
Related products
Selnikel Enerji Isı Hava Teknikleri A.Ş.
Fire-Tube Steam and Superheated/Hot Water Boilers
Pressure Vessels ProductThree-pass fire-tube boilers are manufactured in accordance with EN and/or ASME standards and pressure equipment directives, and all are CE certified. They are built up to 25 bar pressure, 20 MW superheated water and 40 t/h steam capacity. Design follows EN 12953, EN 12952, ASME, TRD 403 and VDI 2050, and units can be supplied with economisers and superheaters on request.
Ankara · Ankara Sanayi Odasi 2.ve 3. Organized Industrial Zone
Selnikel Enerji Isı Hava Teknikleri A.Ş.

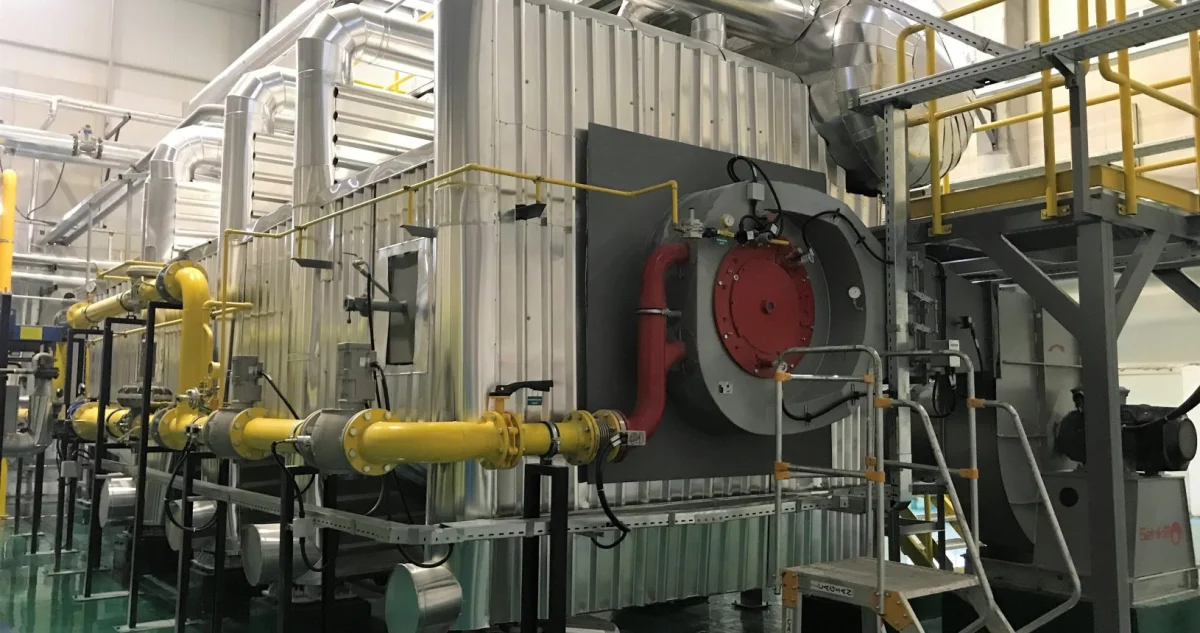

Water-Tube Steam and Superheated/Hot Water Boilers
Pressure Vessels ProductWater-tube boilers, designed with single or double drums and able to burn gas and liquid fuels, are used in industrial processes up to 150 t/h steam and 100 bar pressure. The boiler body consists of membrane walls manufactured tube-fin-tube with full penetration on an automatic panel welding machine. They are designed to EN 12952, ASME Section I or other standards requested by the customer.
Ankara · Ankara Sanayi Odasi 2.ve 3. Organized Industrial Zone
Renatank

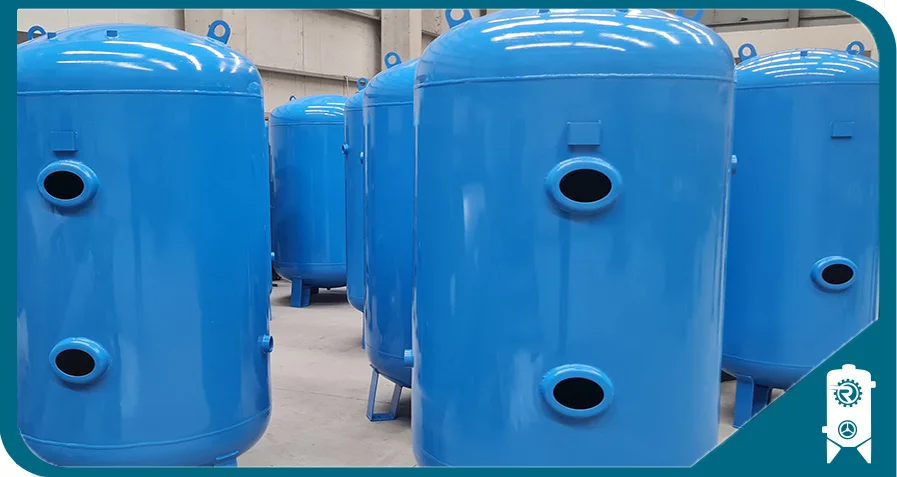

Air Tanks
Pressure Vessels ProductThe air receiver is designed to store compressed air and optimize the efficiency of compressors and compressed air systems; it compensates pressure fluctuations in the pneumatic system and facilitates condensate discharge. Design and production standards EN286-1, EN13445, AD2000; steel quality EN10028-2 P265GH, P355GH, P275NH, P355N, P355NH. Volume 300 lt – 10,000 lt, working pressure 11, 16 and 40 bar. Accessories: pressure gauge, safety valve, condensate drain valve. Coating: electrostatic powder coated or galvanized.
Sakarya
Renatank

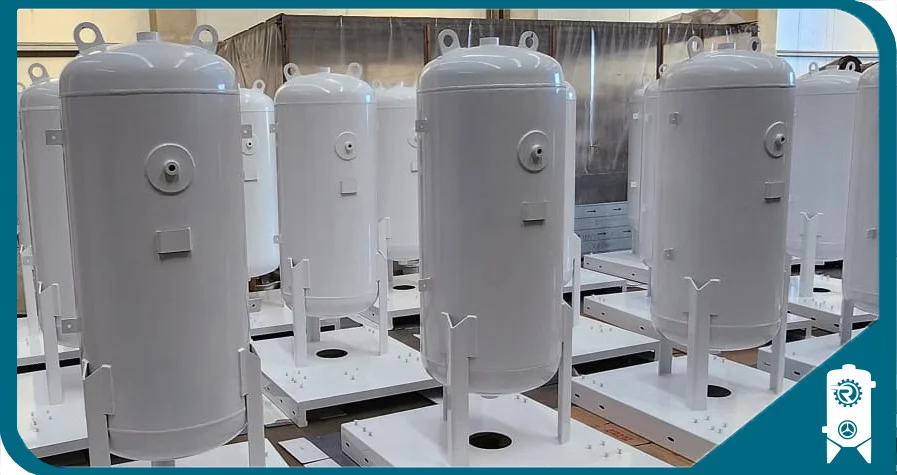

Oxygen Tanks
Pressure Vessels ProductThe oxygen receiver is designed for permanent or intermediate storage of compressed oxygen, stored under pressure up to 40 bar. It reduces the pulsation of the oxygen flow in compressor or generator lines and maintains a constant stable pressure level regardless of gas flow. Design and production standards EN286-1, EN13445, AD2000; steel quality EN10028-2 P265GH, P355GH, P275NH, P355N, P355NH. Volume 300 lt – 10,000 lt, working pressure 11, 16 and 40 bar; electrostatic powder coated or galvanized.
Sakarya
