Isoland Metal

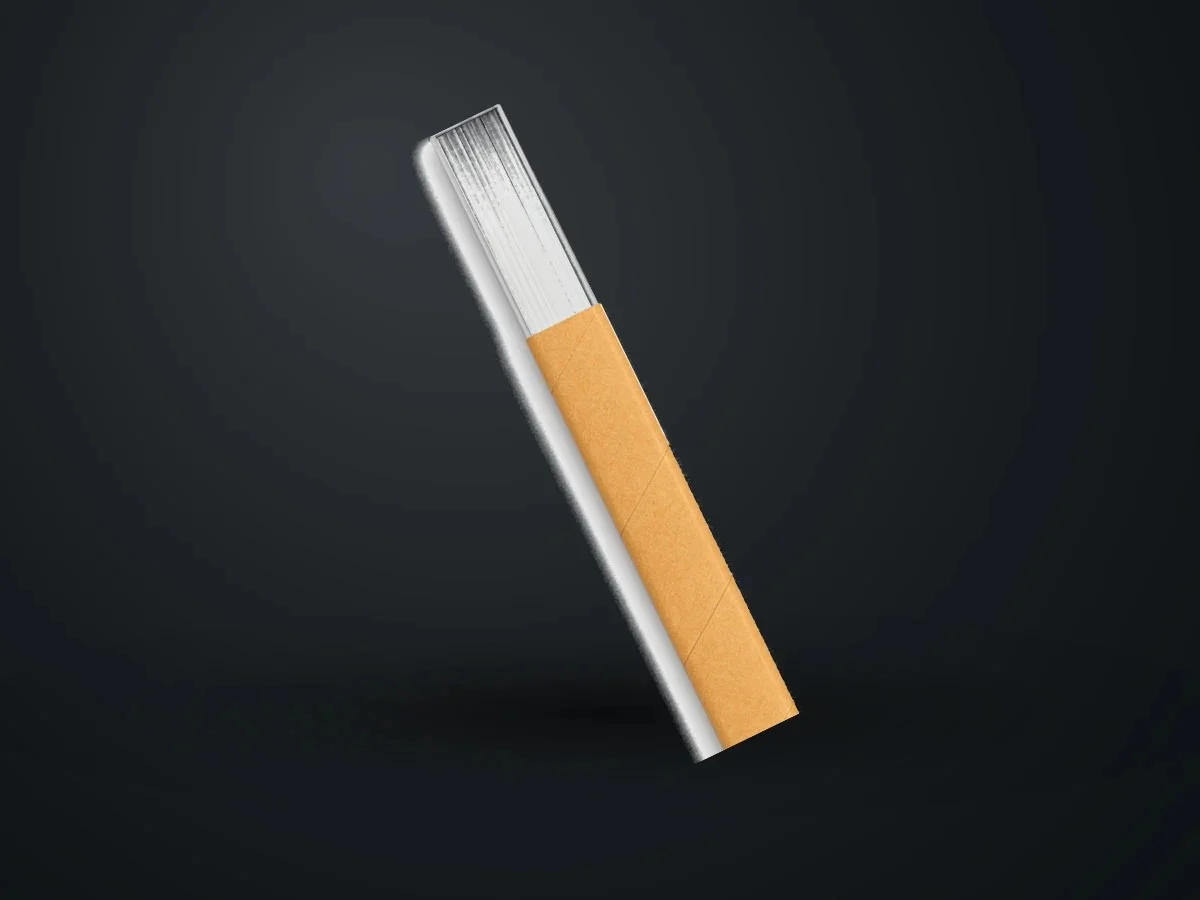

Kraft Paper Insulated Flat Copper Conductor

Kraft paper insulated flat copper conductor is a core element of oil-filled power transformer windings. Cellulosic kraft paper is helically wrapped at a defined layer count with 50% overlap; referenced to IEC 60554, Class 105 (A), in 2–16 mm sizes with 2–12 layer insulation options. Conductor is Cu-ETP 99.9% electrolytic copper; shipped on moisture-barrier film-wrapped reels with EN 10204 3.1 and paper conformity declaration on request.

Ankara · Alcı Organized Industrial Zone

Isoland Metal

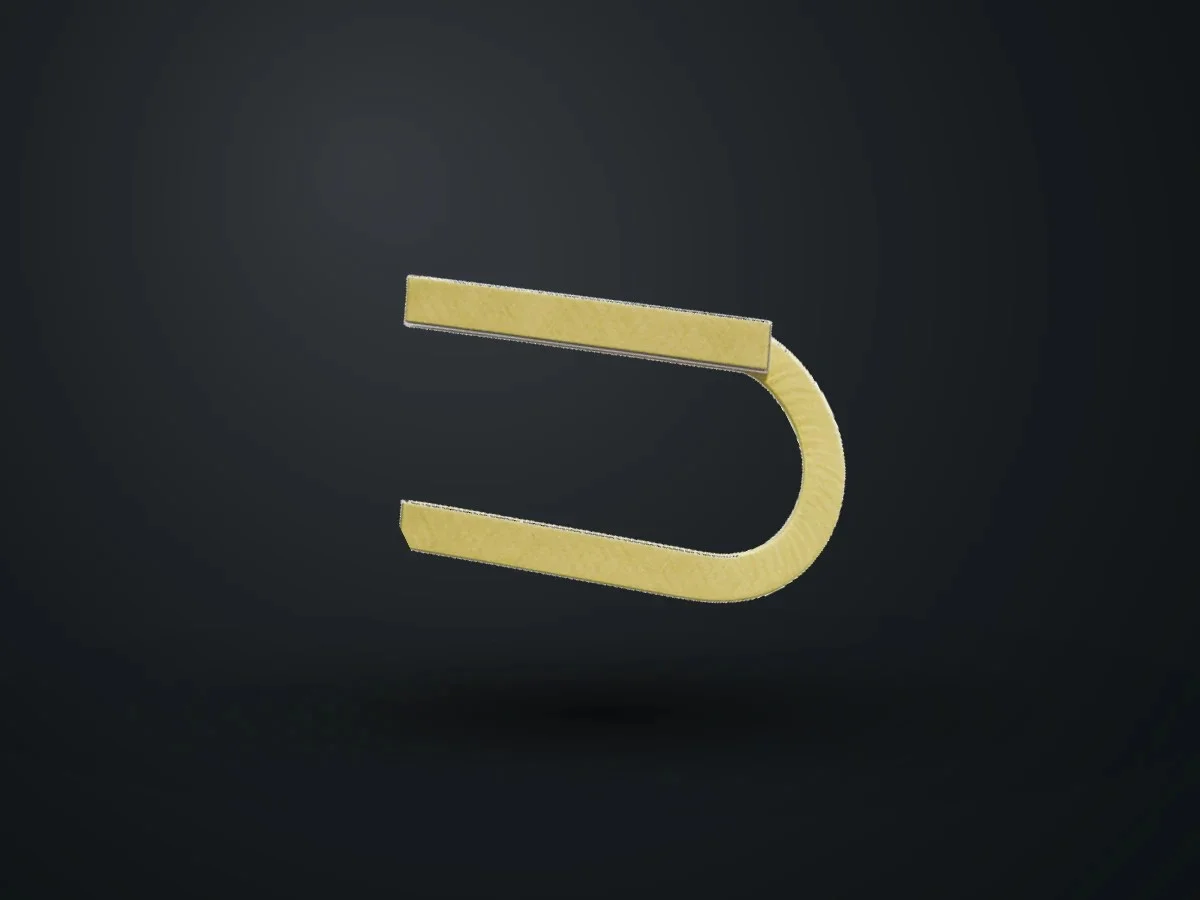

Flat Glass Fibre Insulated Copper Conductor

In glass-fibre insulated conductors, insulation is formed by double-braiding fine glass yarn around the conductor and impregnating it with a thermally cured resin. Class 180 (H), referenced to IEC 60317, compatible with VPI and dip impregnation; flat copper (Cu-ETP 99.9%) winding conductor in 2.00–16.00 mm widths. Double glass braid typically adds 0.35–0.50 mm build; the hard, abrasion-resistant shell suits large motors, generator windings and industrial reactors. Shipped with IEC 60851 test report.

Ankara · Alcı Organized Industrial Zone

Sarcam Bobinaj ve Trafo Telleri Sanayi ve Ticaret A.Ş.

Enamelled Fiberglass Wires

Kocaeli̇ · Makine Ihtisas Organized Industrial Zone

Sarcam Bobinaj ve Trafo Telleri Sanayi ve Ticaret A.Ş.

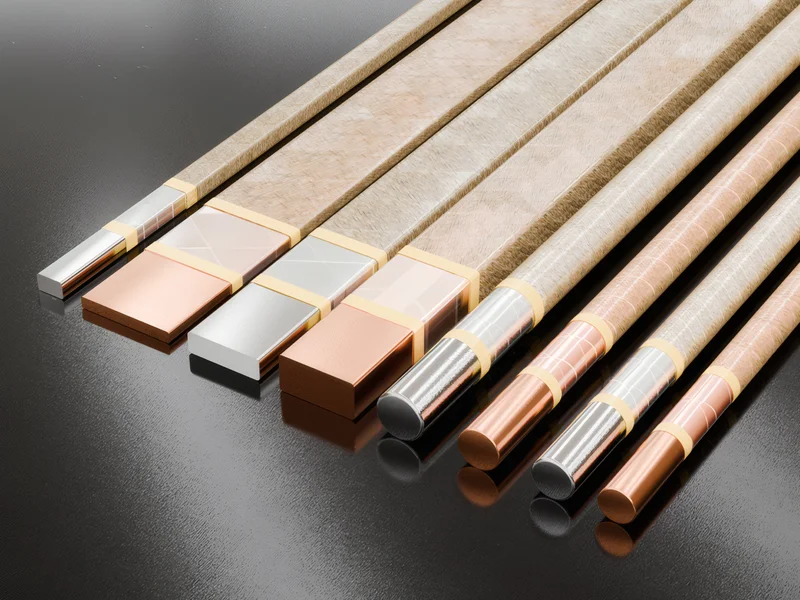

Fiberglass Insulated Wires

Kocaeli̇ · Makine Ihtisas Organized Industrial Zone

Sarcam Bobinaj ve Trafo Telleri Sanayi ve Ticaret A.Ş.

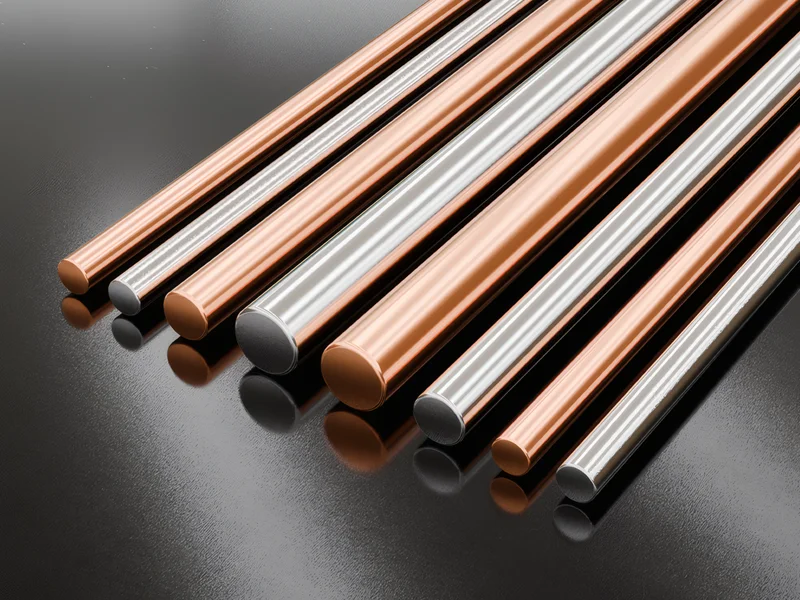

Round Wires

Round winding wires with enamel and multiple insulation systems.

Kocaeli̇ · Makine Ihtisas Organized Industrial Zone

Sarcam Bobinaj ve Trafo Telleri Sanayi ve Ticaret A.Ş.

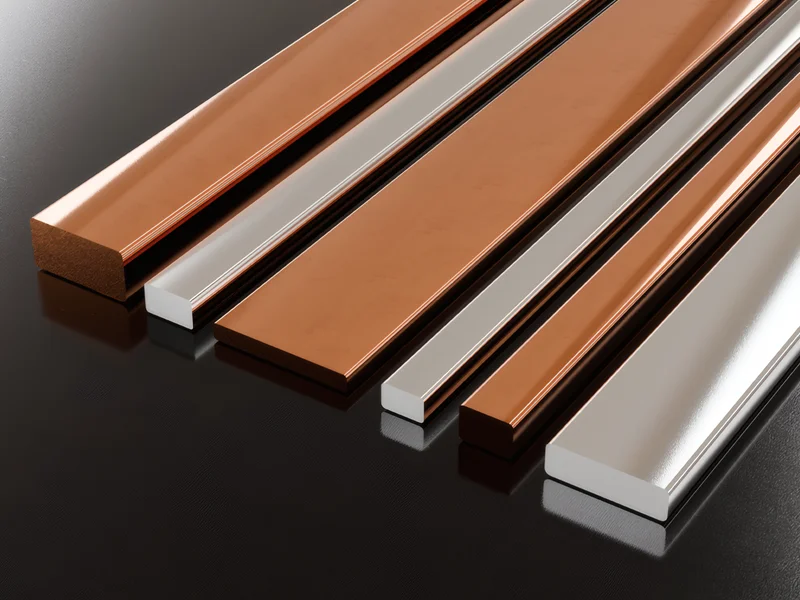

Flat Wires

Insulated flat conductors for transformer and winding applications.

Kocaeli̇ · Makine Ihtisas Organized Industrial Zone
