Hidroteknik Fabrika Malzemeleri Ticaret ve Sanayi A.Ş.
Hydraulic Power Unit Manufacturing
Hydraulic Power UnitCompact or industrial, fixed or variable displacement, explosion-proof or marine type hydraulic power units are produced machine-specifically under the HT brand in the company's own workshop. Units are designed to the technical values set by specialists, can work integrated with PLC systems and offer easy maintenance; elevator power units are included.
Denizli
Hidroteknik Fabrika Malzemeleri Ticaret ve Sanayi A.Ş.

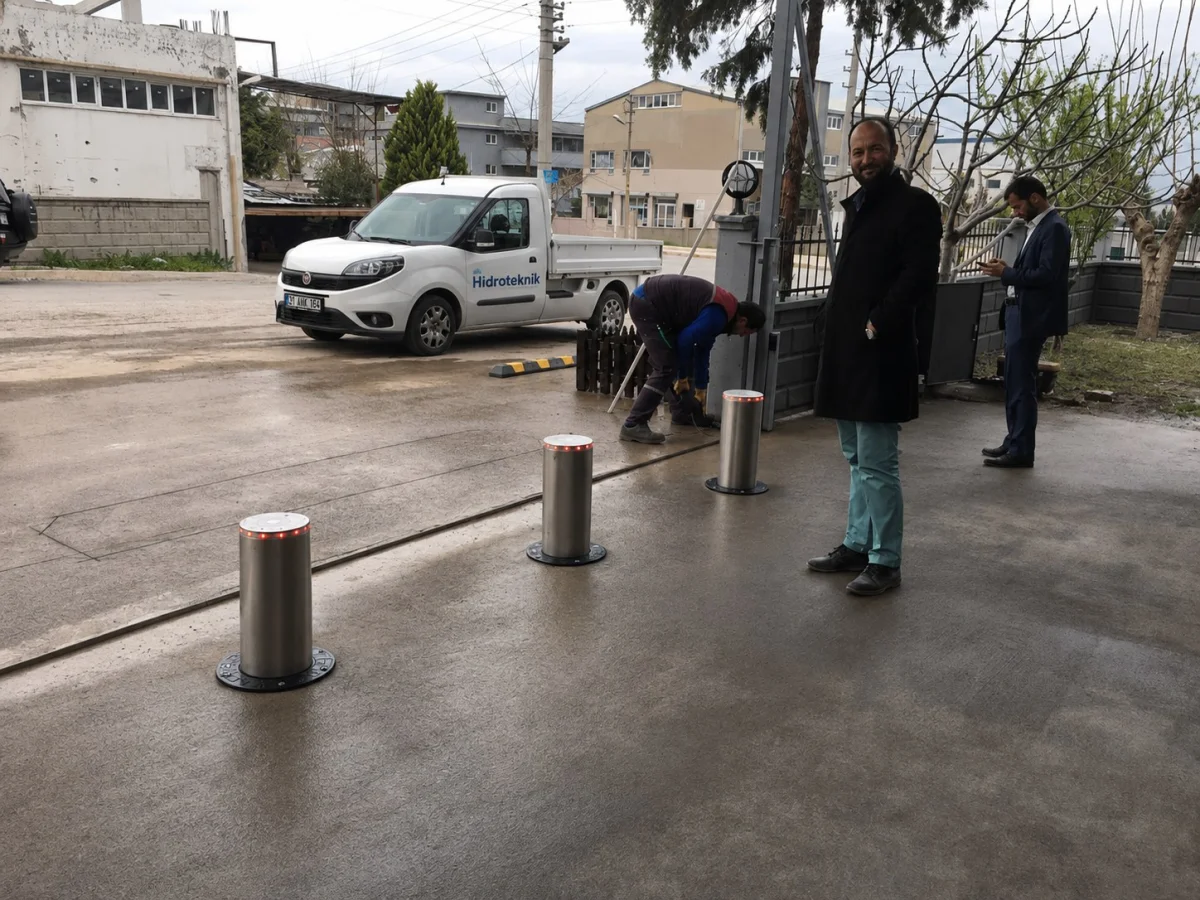

Hydraulic Bollard Barrier
Special MachineryHydraulically retractable bollard barriers for entry and exit control are engineered to regional conditions and customer requirements and manufactured in-house. They are produced in groups of two, three, four or any required number for public and private institutions, and installation is also provided by Hidroteknik.
Denizli
Related products
Mert Akışkan Gücü San. ve Tic. A.Ş.
KHS Type Hydraulic Cylinders
Hydraulic CylinderHydraulic cylinders with mounting dimensions and connection types to MAG standards and 8 standard mounting styles. Bore 40–200 mm, rod 22–140 mm and stroke up to 3000 mm, with optional adjustable cushioning and double-rod option. Nominal pressure 160 bar (250 bar optional), test pressure 240 bar. Honed St52 BK+S barrel and Ck45 rod with min. 20 µm hard chrome in f7 tolerance; each cylinder is leak-tested to ISO 10100 before shipment.
İstanbul · Dudullu Organized Industrial Zone
Mert Akışkan Gücü San. ve Tic. A.Ş.
NHS Type Hydraulic Cylinders (CETOP-R58H)
Hydraulic CylinderHydraulic cylinders with mounting dimensions and connections to CETOP-R58H and bore/rod diameters to ISO 3320. Bore 50–200 mm, rod 28–140 mm, stroke up to 3000 mm; 8 standard mounting styles, optional adjustable cushioning and double rod. 160 bar nominal / 240 bar test pressure, operating with mineral oils (DIN 51524 HL, HLP) between -20 °C and +80 °C; versions for -30 °C to +200 °C available on request.
İstanbul · Dudullu Organized Industrial Zone
Mert Akışkan Gücü San. ve Tic. A.Ş.
Telescopic Hydraulic Cylinders
Hydraulic CylinderTelescopic hydraulic cylinders with mounting dimensions to MAG standards, built single- or double-acting. Bore 65–180 mm, rod 20–166 mm, 2, 3 or 4 stages and stroke up to 5000 mm (extendable on request). Nominal pressure 160 bar, test pressure 240 bar; honed St52 BK+S barrel and rod with min. 20 µm hard chrome. Every cylinder passes internal and external leak tests to ISO 10100; 2-year warranty and 10 years of spare-part support.
İstanbul · Dudullu Organized Industrial Zone
Hidrosil Hidrolik Silindir Mak. İnş. Madencilik İth. İhr. San. ve Tic. Ltd. Şti.
Construction Machinery Hydraulic Cylinders
Hydraulic CylinderAftermarket hydraulic cylinders for excavators, wheel loaders, dozers, backhoe loaders, graders, dump trucks and telehandlers. Boom, arm, bucket, steering, lift, tilt, blade, stabilizer, dump, level and suspension cylinders are manufactured to be compatible with OEM spare part references.
Ankara · OSTIM Organized Industrial Zone
