Product description
Technical specifications
- Minimum order (MOQ)
- 1 pcs
More from this company
Armonitel Elektrik Makina San. ve Tic. A.Ş.
Press-Welded Foil Busbar
Electrical Equipment ProductPress-welded copper foil links are made by stacking 0.10–0.30 mm (also stated 0.10–0.50 mm) Cu-HCP strips and welding the ends under press without filler, at high pressure and heat. U or S shapes take two-way machine movement. Contact areas can be tin-, nickel- or silver-plated by electrolysis or hot dip. Material is CU-ETP; welded ends can be cut, drilled or milled. Uses include busbar systems, cells, generators, in-panel switch links and machine/motor interconnects.
İstanbul · Beylikduzu Organized Industrial Zone
Armonitel Elektrik Makina San. ve Tic. A.Ş.

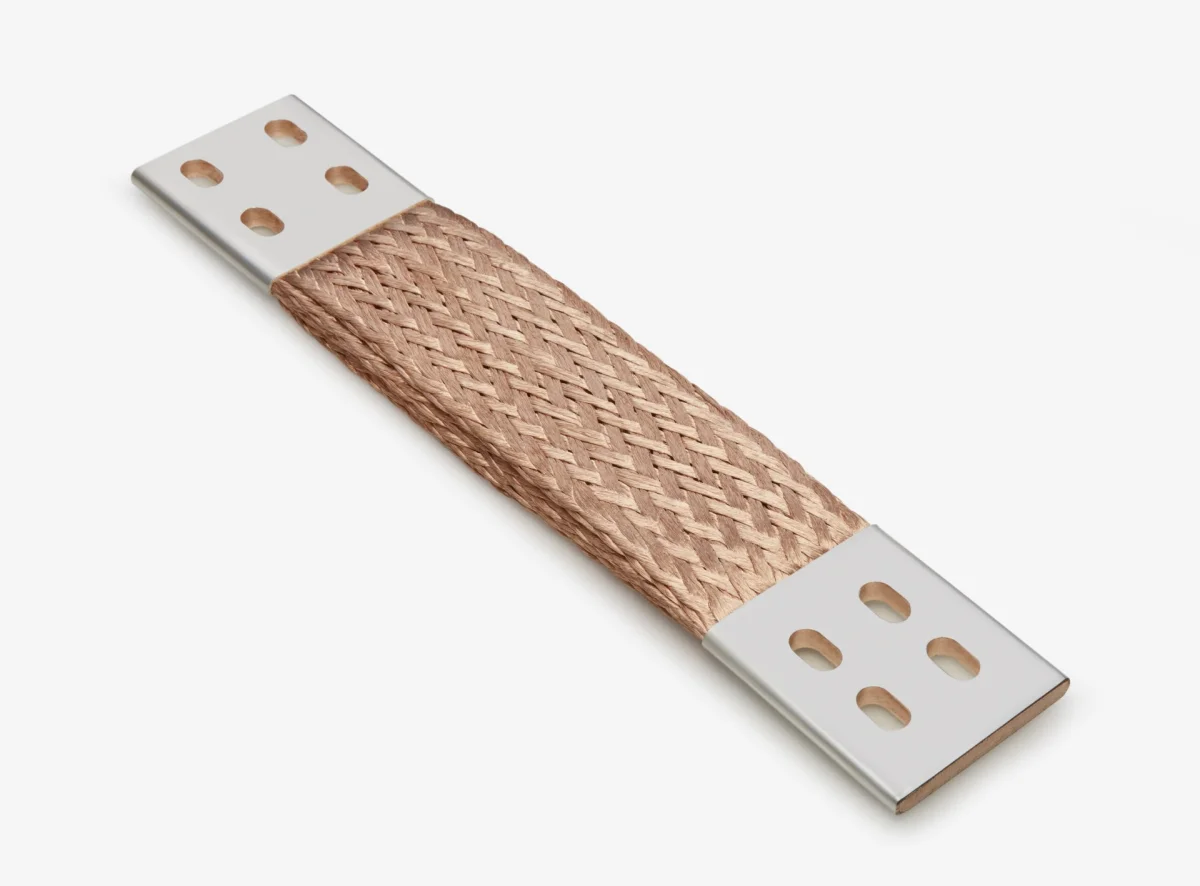

Braided Flexible Busbar
Electrical Equipment ProductFlexible connections are used in LV and HV where vibration and shock are high, because they are moving elements. Armonitel makes standard and special braided flexible busbars that transfer high current. They are made from electrolytic copper wire (bare or tinned); contact faces may be bare, tinned or silver-plated. Heat-shrink sleeve or PVC sheath insulation is possible; current capacity may then fall by 10%. Uses include busbar systems, generators, transformer/bushing links, HV load and earthing switches, panel connections and high-heat/shock applications.
İstanbul · Beylikduzu Organized Industrial Zone
Related products
ATS Elektrik Pano
Compensation Panels
Electrical Equipment ProductCompensation panels are used in facilities to improve power quality and prevent power losses. They include measuring instruments, contactors, circuit breakers and capacitors. Conventional contactor panels correct power factor; shunt-reactor panels filter harmonic currents; thyristor panels control current flow more precisely; harmonic-filter reactor panels reduce harmonic distortion. ATS manufactures these configurations according to customer demand and plant requirements.
Ankara · Ankara Sanayi Odasi 2.ve 3. Organized Industrial Zone
Armtek Elektrik
ARME-AIS Air-Insulated Modular Switchgear
Electrical Equipment ProductMetal-enclosed, air-insulated modular MV switchgear with LSC2A service continuity, internal-arc tested (IAC-AFL) and withdrawable design. Offered with ten functional cell types for 12, 24 and 36 kV systems; rated current 630–1250 A, frequency 50–60 Hz, IP3X protection. Short-time withstand 16–21 kA / 1 s; type tests to IEC 62271-200 performed in accredited laboratories.
Ankara · Ankara Sanayi Odasi 2.ve 3. Organized Industrial Zone
Armtek Elektrik
ARMC Metal-Clad Switchgear
Electrical Equipment ProductMetal-clad MV switchgear with earthed metal partitions and a withdrawable vacuum circuit breaker, internal-arc classified AFLR. Available as incoming and outgoing cells for 12–36 kV systems; IP4X protection, rated short-circuit withstand 25–31.5 kA (1–3 s). Component options include Schneider, ABB, Siemens or Armtek. Compliant with IEC 62271-200 / TS EN 62271-200; LSC2B service continuity.
Ankara · Ankara Sanayi Odasi 2.ve 3. Organized Industrial Zone
Senkron Elektrik
DC Drive Systems
Electrical Equipment ProductDrives are manufactured from 1 kW to 2000 kW. They are prepared as modules or panel-mounted, and additional equipment can be added in the same panel when other systems must run together. Drives are controlled digitally or analog. Speed can be set over a wide range with high precision. Output voltage, output current, torque and time-proportional acceleration can also be adjusted. With encoder or tachogenerator feedback, motor speed can be held constant under load changes. Drives are built for standard shunt motors and also for special DC, series and compound motors.
Karabük · Karabuk Organized Industrial Zone
