BRS Proses
Bursa · Nilüfer
BRS Proses
Hydraulic cylinder, hydraulic power unit (HPU) and custom hydraulic press manufacturing in Bursa, with design, project engineering, maintenance and revision services for hydraulic and pneumatic systems.
About
Production profile
Company type
Activity types
Production capabilities
Materials worked
Certifications
Export profile
Industries served
Activity categories
Map
Location is approximate, based on the address. · © OpenStreetMap

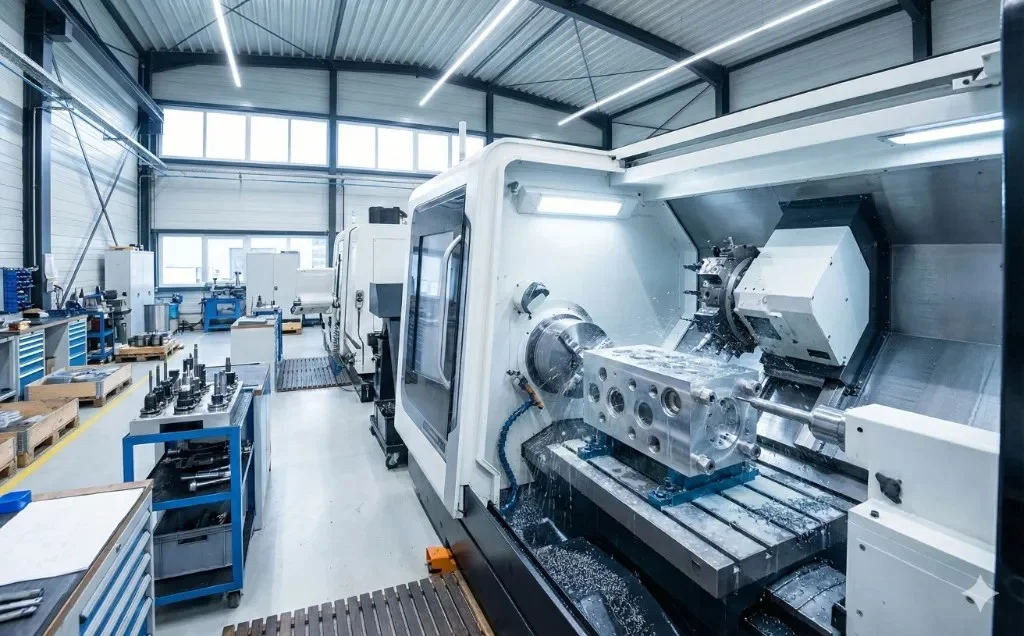

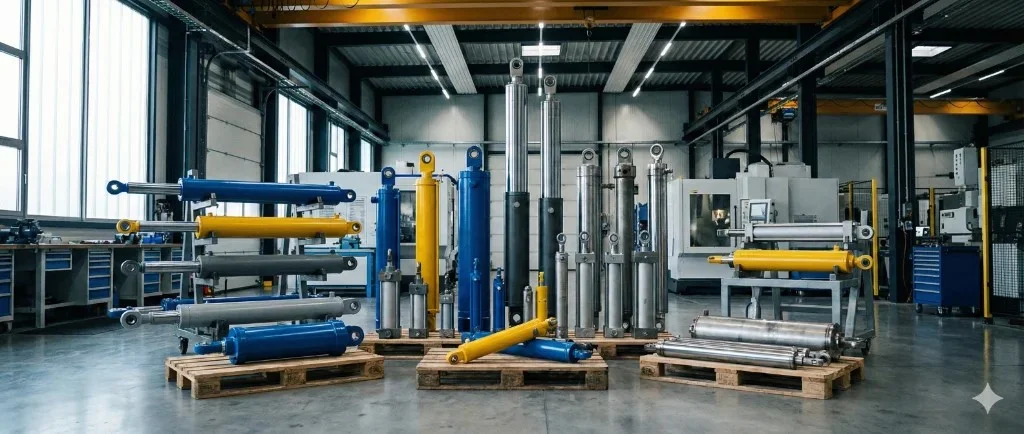

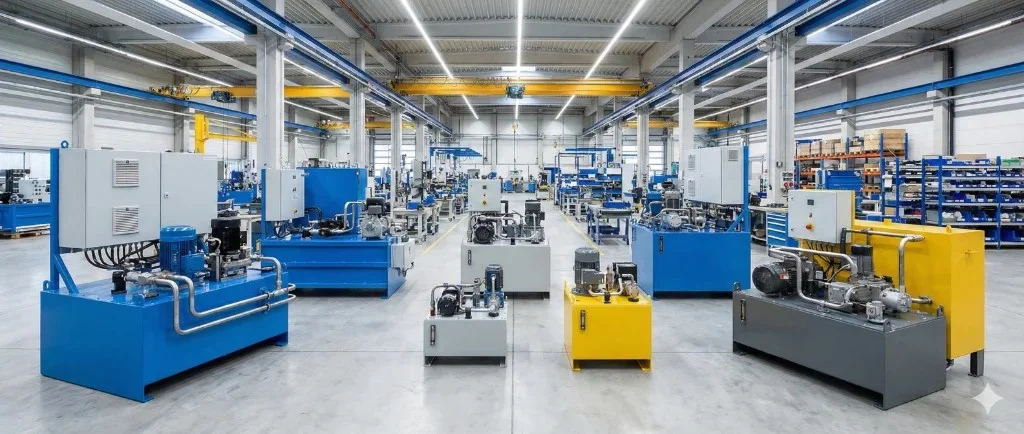

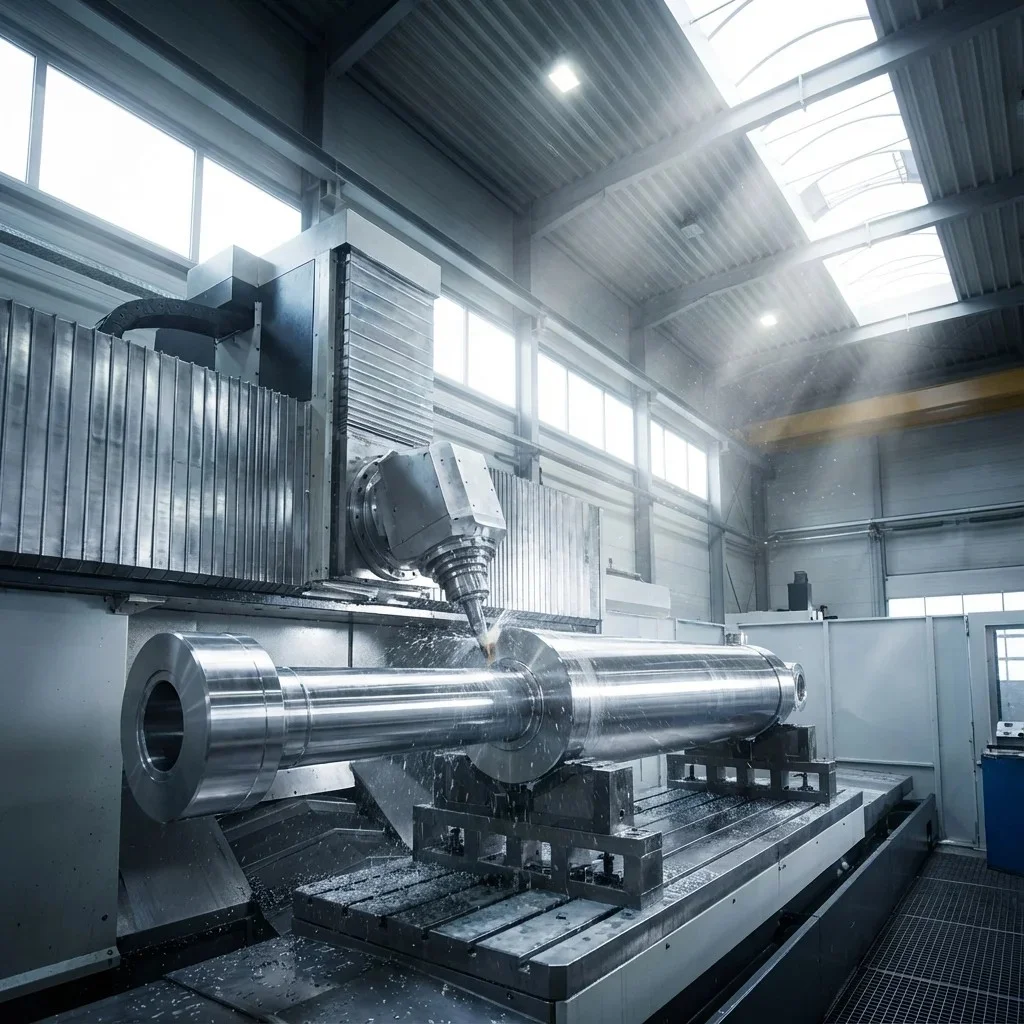

Factory gallery
Products

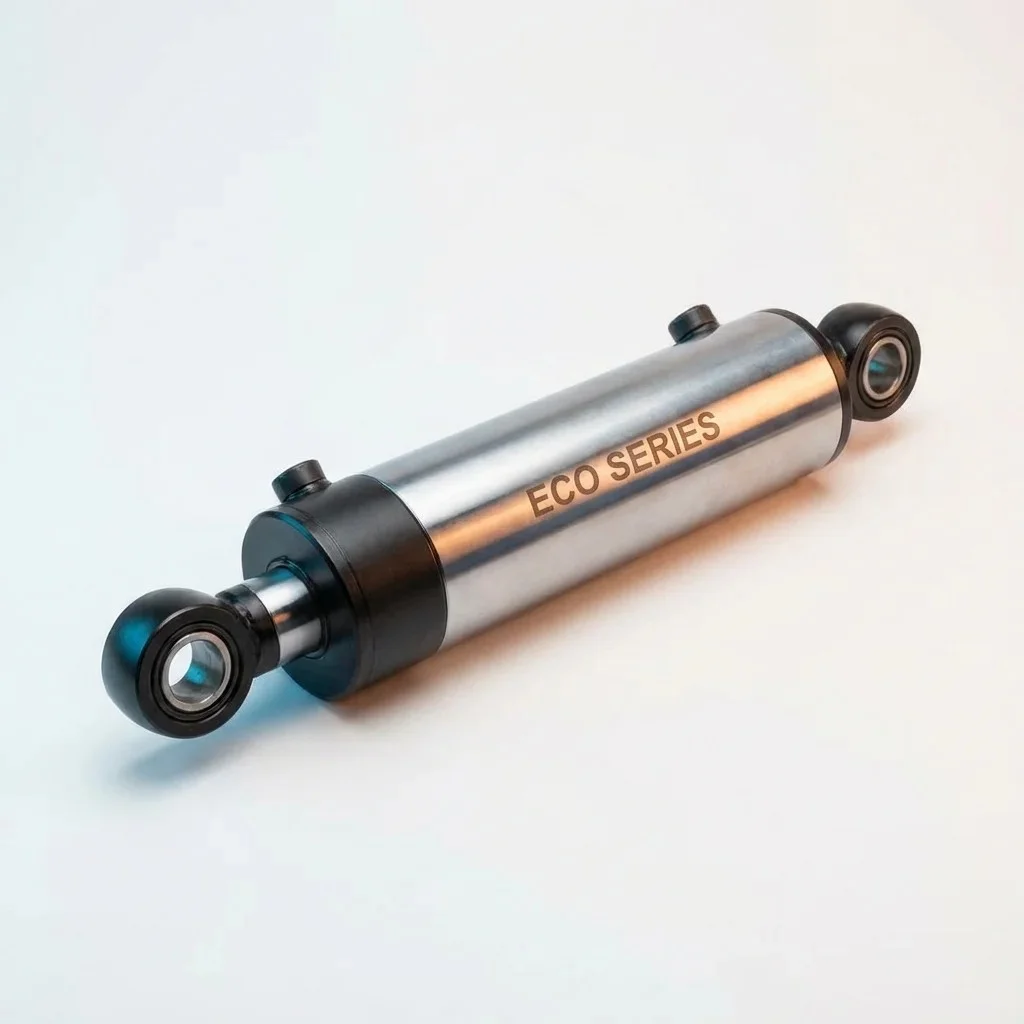

ECO Series Hydraulic Cylinder
Cost-effective hydraulic cylinders for standard industrial applications: Ø40-200 mm bore, strokes up to 3000 mm and 160 bar maximum pressure. They use a compact welded body, honed steel barrel, hard-chrome plated rod and standard NBR seals. Intended for agricultural trailers, vehicle-mounted equipment and woodworking machines; custom strokes ship within 3-5 working days with a test report.

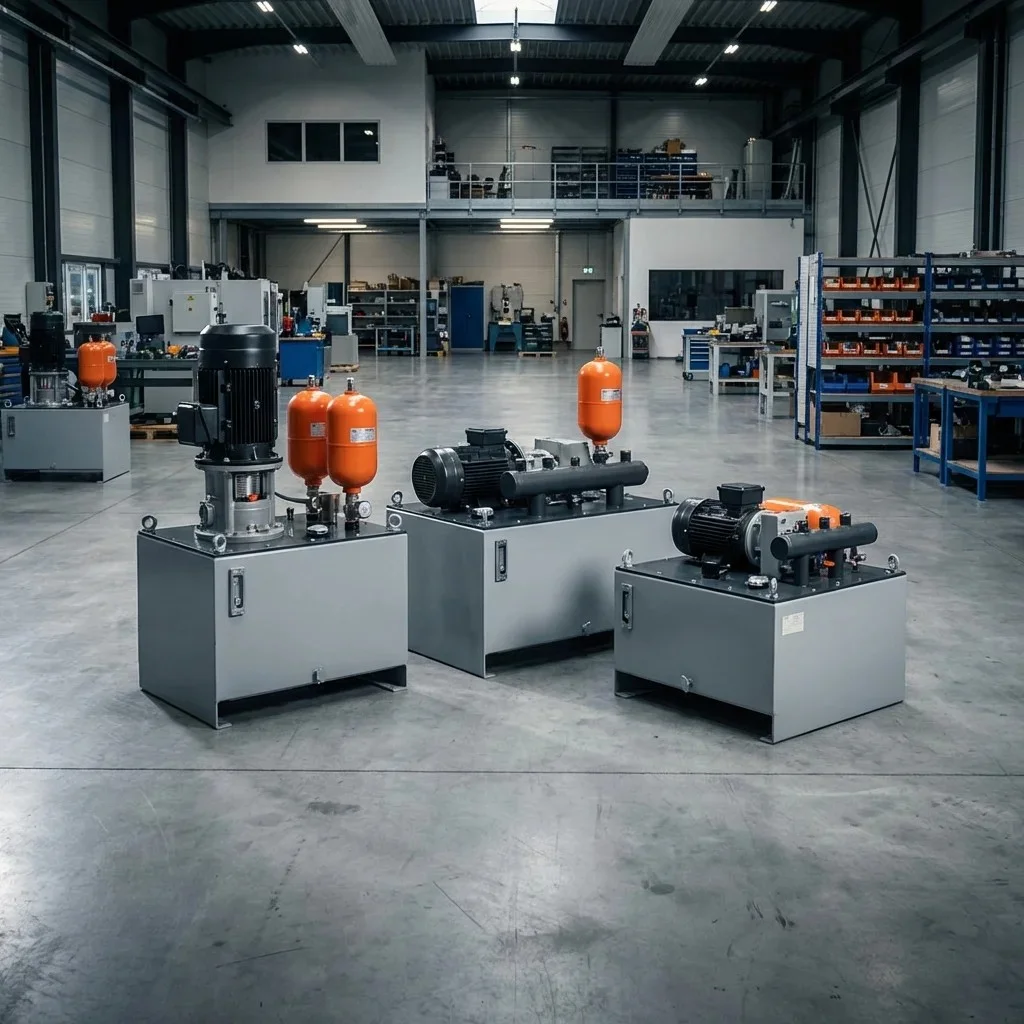

Hydraulic Power Unit (HPU)
Hydraulic power units from 0.5 kW to 250 kW motor power, up to 350 bar maximum pressure and 200 l/min flow. Options include 5-2000 litre stainless or painted tanks, Cetop NG6/NG10 and manifold-type valve blocks, frequency-inverter pump systems, heat exchangers and filtration. Pumps from Bosch Rexroth, Parker, Bucher and Marzocchi are used, with PLC integration and pressure/temperature sensors supported.

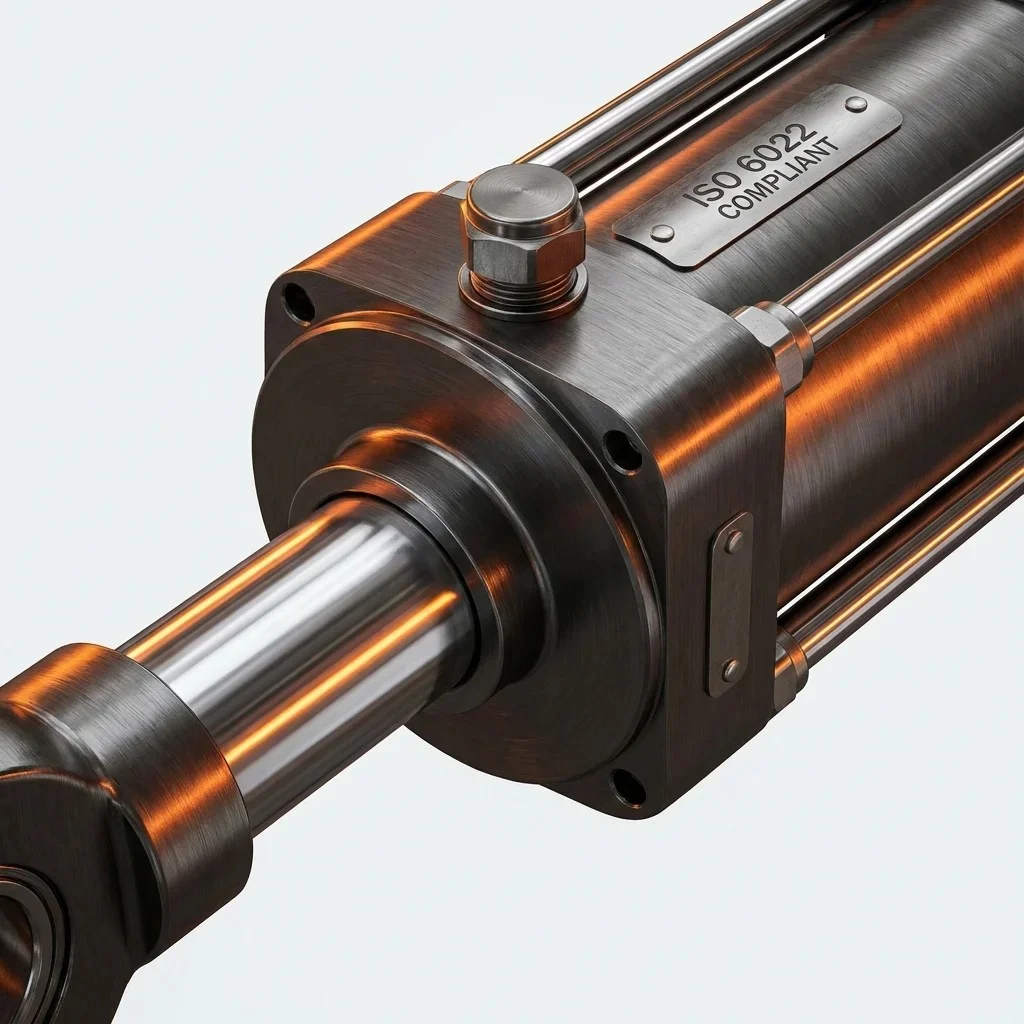

ISO Series Hydraulic Cylinder
High-strength hydraulic cylinders built to ISO 6020/1, 6020/2 and 6022: Ø25-320 mm bore, strokes up to 6000 mm and 250 bar maximum pressure. Barrels are honed to ISO H8 tolerance from DIN EN 10305-1 St 52-3 or 20MnV6 seamless tube. MF1, MF2, MP5, MT4 and MS2 mounting options are available, with adjustable end-position cushioning on both heads as standard.
Services
Hydraulic and Pneumatic Project Engineering
Turnkey hydraulic project management for large industrial plants. Site survey and needs analysis define force, speed and cycle time; P&ID and block diagrams, component and labour budgets and a Gantt-based schedule are prepared. Projects are documented in line with CE directives and occupational health and safety rules.
Hydraulic System Revision
Revision and modernisation of hydraulic cylinders, pumps, valves and power units. Work includes damage assessment, honing, chrome plating and seal replacement, swapping old valves and pumps for current ones, and converting relay systems to PLC panels. Each revised cylinder is static and dynamic leak tested at 1.5x working pressure and delivered with a warranty.
3D Engineering and Hydraulic System Design
3D CAD modelling, circuit diagrams and manifold block design for hydraulic and pneumatic systems in SolidWorks, AutoCAD and ePlan Fluid. The work covers FEA for pressure and stress, flow-speed calculations, pipe size optimisation, heat balance and accumulator sizing. A digital twin is used to complete collision checks before manufacturing.
