Baysonic is an engineering-focused manufacturer of industrial ultrasonic welding, cutting and special-application machines.
About
Baysonic is an engineering-focused machinery manufacturer specialized in industrial ultrasonic technologies. With more than 25 years of field experience and a strong R&D infrastructure, it designs and manufactures production solutions for ultrasonic welding machines, ultrasonic cutting systems and special industrial ultrasonic applications.
For many industries, especially plastics, textile, automotive, packaging, nonwoven, technical textile and geotextile, we offer project-specific engineering solutions beyond standard ultrasonic machines. We approach each project not with ready-made molds, but with machine design from scratch and custom manufacturing according to product structure, process requirements and production targets.
Our range consists of high-precision industrial systems including ultrasonic plastic welding machines, ultrasonic cutting and edge-sealing systems, custom horn and booster designs, servo-controlled ultrasonic automation solutions and integrated production lines. In all ultrasonic systems we develop, process stability, repeatability, high precision and long industrial service life are our main priorities.
Baysonic’s difference is not only manufacturing machines, but offering customers sustainable, efficient and reliable production solutions. All processes from project design to commissioning, from technical consultancy to after-sales support, are managed by our own engineering team.
Today Baysonic, as a Turkey-based ultrasonic machinery manufacturer, continues to offer high value-added industrial ultrasonic solutions in Europe, the Middle East and international markets.
Production profile
Company type
Activity types
Production capabilities
Machine park
Materials worked
Manufacturing processes
Industries served
Activity categories
Factory gallery
Products

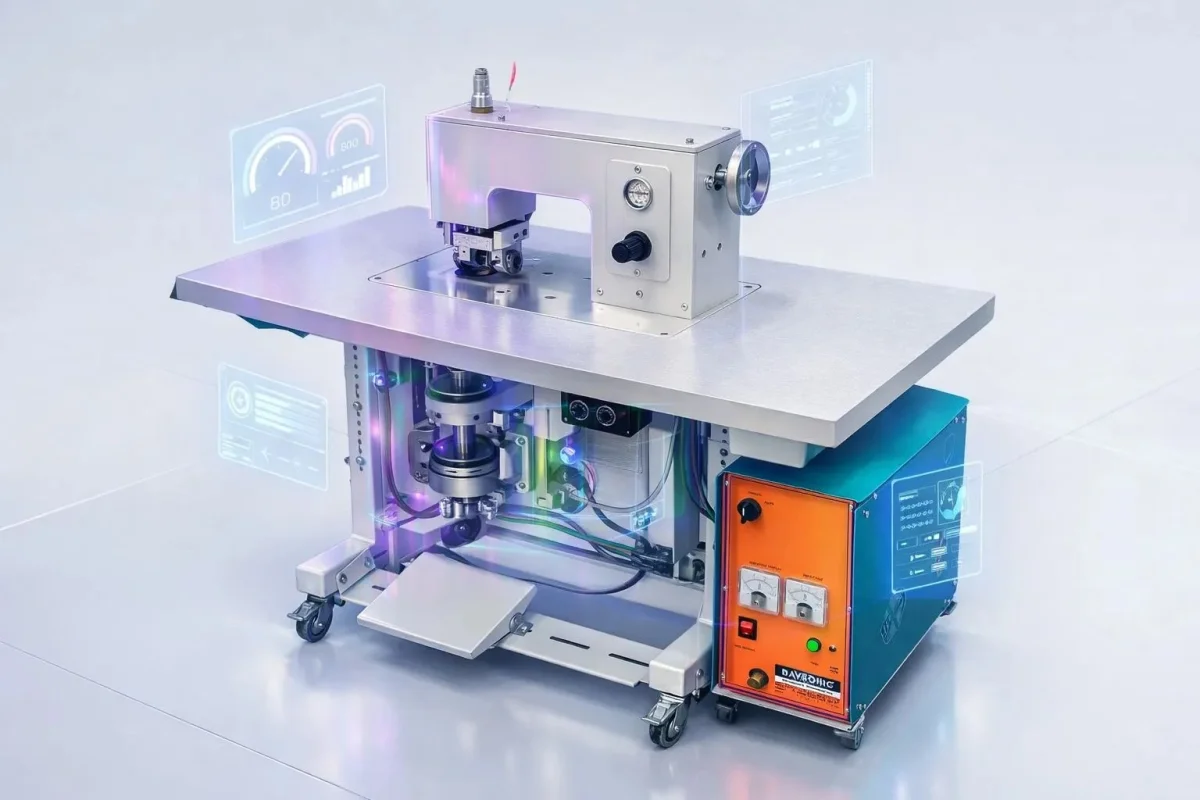

BSU-12 Ultrasonic Sewing 1400 W
BSU-12 provides high-speed, clean, threadless seaming on nonwoven and technical textiles. Ultrasonic technology forms stable seams without damaging the fabric, without burrs and without burning. Output 1400 W; 20 kHz; 220 V / 50 Hz; welding/cutting speed 1–20 m/min; weld width 12 mm; pattern-blade diameter 50 mm; dimensions 1190 × 540 × 1120 mm; weight 156 kg. Uses: medical textiles, hygiene, filtration, coated fabrics, technical tapes.

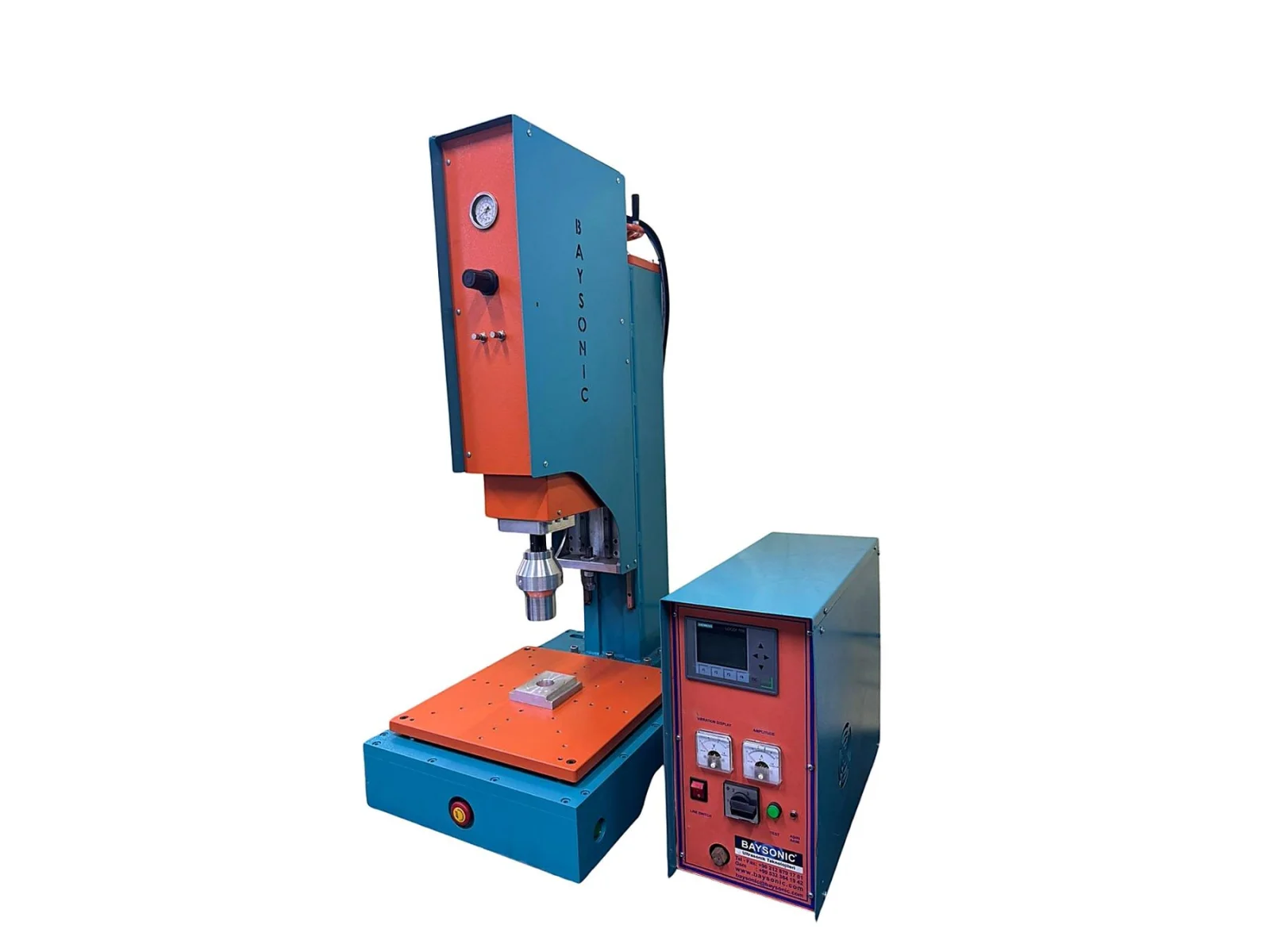

BSUW-2018 20 kHz 1800 W
BSUW-2018 is a 20 kHz ultrasonic plastic welding machine offering high speed, stability and repeatable weld quality for industrial series production. At 20 kHz it produces clean, strong, high-strength welds between plastic parts and minimizes heat-related deformation. Output 1800 W; 220 V / 50 Hz; pneumatic cylinder Ø 63 mm; working height 340 mm; dimensions 650 × 450 × 1100 mm; weight ≈ 105 kg + 25 kg generator; digital/PLC control. Applications: packaging, automotive, medical, electrical/electronics.

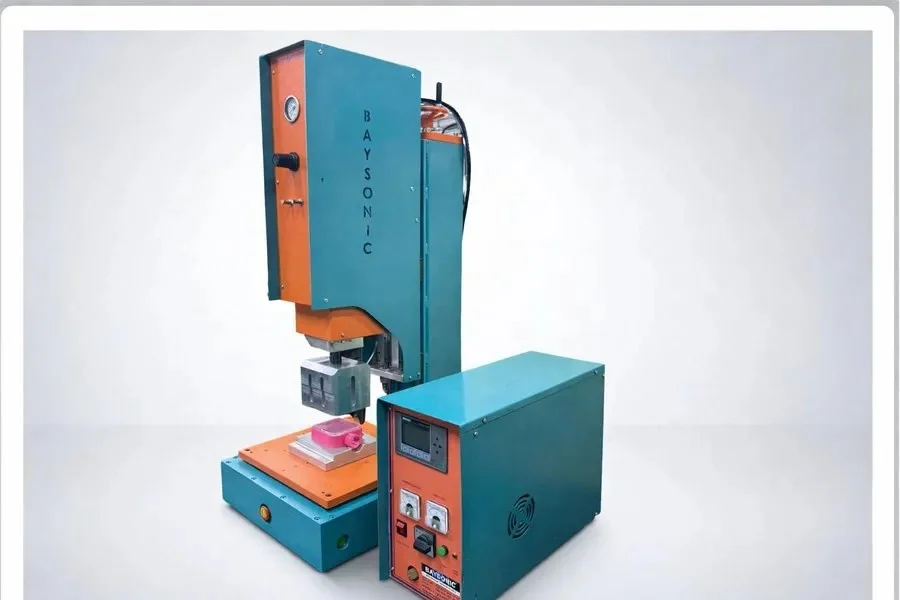

BSUW-2020 20 kHz 2000 W
BSUW-2020 is a 20 kHz, 2000 W ultrasonic welding system for industrial production lines. It joins plastic parts with high-frequency vibration and pressure without adhesive or screws. Output 2000 W; 20 kHz; 220 V / 50 Hz; pneumatic cylinder Ø 63 mm; working height 340 mm; dimensions 650 × 450 × 1100 mm; weight 105 kg; digital/PLC. Uses: automotive plastics, white goods components, medical plastics, packaging.
Services
Commissioning and Technical Consultancy
All processes from project design to commissioning, from technical consultancy to after-sales support, are managed by the company’s own engineering team. The About page lists servo-controlled ultrasonic automation and integrated production lines in the range. Process stability, repeatability, high precision and long industrial service life are stated as main priorities.
Custom Machine Design and Manufacturing
Each project is handled with machine design from scratch and custom manufacturing according to product structure, process requirements and production targets, not with ready-made molds. Project-specific engineering solutions beyond standard ultrasonic machines are offered for plastics, textile, automotive, packaging, nonwoven, technical textile and geotextile. Source: baysonic.com/page/hakkimizda.
After-sales 24/7 Support
The homepage publishes “After-sales Support — 24/7 technical support and maintenance services” and “Our specialist team is always with you.” About states that after-sales support is managed by the in-house engineering team. The Beylikdüzü OSB Birlik San. Sitesi 2nd Street No:13-15 plant is published on the contact page.
