Solar Panels

İvosis

C Profile

C profile is a perforated profile type with a wide range of applications; it can be supplied in various sizes. The perforated structure provides ease of assembly in production lines and high-tech projects without the need for bolts. Specially manufactured C profiles are supplied in the required dimensions and sections with burr-free cutting, and are used in energy facilities, as load-bearing elements in construction, in automotive production processes, and in steel door manufacturing.

Şanliurfa

ELC Alüminyum Sanayi ve Ticaret A.Ş.

Solar Frame and Panel Mounting Profiles

ELC Solar supplies EPC companies and solar panel manufacturers with aluminium profiles, mounting structures and fasteners for solar power plants. On the integrated GES frame assembly line, extruded solar frame profiles are cut to size, fitted with corner keys and punched on a single line, so customers receive ready-to-assemble frame products rather than raw profiles only.

Kayseri̇ · Kayseri Organized Industrial Zone

ELC Alüminyum Sanayi ve Ticaret A.Ş.

ELC Solar Roof and Ground Mounting Systems

For open-field solar plants, ELC Solar offers mounting structures with aluminium support columns and project-specific components designed for fast installation, high strength and different terrain and climate conditions. Rooftop systems for flat and pitched roofs are configured with profile and fastener options for low weight and efficient installation. Where standard systems are not enough, sections and components are designed from the project's structural requirements, site and mounting conditions.

Kayseri̇ · Kayseri Organized Industrial Zone

Seral Cephe Sistemleri San. ve Tic. Ltd. Şti.

Aluminum Solar Mounting Rails and PV Frames

Seral is a solar mounting systems supplier and manufacturer of aluminum solar profiles in Turkey. It designs and produces lightweight, corrosion-resistant aluminum solar mounting rails, PV module frames, brackets and clamps for long-term durability in harsh weather. The range covers ground-mounted solar systems, rooftop mounting, floating solar structures and customized aluminum solar frames.

İstanbul

Seral Cephe Sistemleri San. ve Tic. Ltd. Şti.

Rooftop Solar Mounting Systems

For rooftop solar mounting systems Seral produces corrosion-resistant aluminum carrier profiles, rails, brackets and clamps. Its solar aluminum products are made to international quality standards for global PV installations. Contractors, EPC companies and distributors use these roof-mount rails and connecting parts for rooftop arrays.

İstanbul

ERL Solar Montaj Sistemleri

Ground-Mount Systems

Land-type mounting systems are fixed systems that are designed and applied to the land according to the location, ground type, panel type and desired layout. Applications cover dual-post / single-post / east-west layouts, bifacial / monofacial modules, and driven pile / drilled-plus-concrete / concrete ballast foundations. Metal processing and galvanizing are carried out under one roof, with project-specific design and production and a Domestic Goods Certificate on all products.

Ankara

ERL Solar Montaj Sistemleri

Roof Mounting Systems

These are the solar mounting systems offered by ERL Solar Mounting Systems for installation on roofs. It is the most common installation site for buildings; suitable installation can be provided for any roof structure. The company offers panel mounting solutions for residential and commercial roofs. The mounting structures are widely used on sandwich panel, metal, membrane, concrete and tiled roofs.

Ankara

ERL Solar Montaj Sistemleri

Carport

ERL Solar carport systems are suitable for shopping-mall, hotel, commercial and private parking lots thanks to their ground clearance. Solar panels are mounted on parking areas with special structures at a height where vehicles can park underneath. Before installation, the mounting technique is decided after analysis by the specialist team; the architectural layout is then fixed according to the chosen design, ground conditions and sun orientation. Load and seismic calculations are completed and the structure is installed to national and international standards so that it remains serviceable in all weather throughout its service life.

Ankara

NLB Solar Enerji A.Ş.

Rooftop PV Mounting Systems

NLB Solar manufactures mounting systems for every roof type. After receiving project location, roof type and panel layout, it prepares an optimized construction layout and price offer and solves static projects to TSE and Eurocode. Pitched-roof lines include NLB LongRail StudBolt (purlin connection on trapezoidal sheet, sandwich panel and shingle), LongRail TileMount under tiles, LongRail ClipMount on standing seams without screws, LongRail SideMount, Short Rail and Mini Rail. Flat-roof NLB Flat Roof South and EastWest systems are supplied for gravel, concrete, bitumen and membrane, with screws and sealing included.

İstanbul

NLB Solar Enerji A.Ş.

Ground-Mounted PV Systems

NLB Solar offers two ground-mounted PV systems: pile-driven installation and concrete foundation with anchors. Structural calculations are based on project location, soil study and panel choice, and the optimum solution is proposed to the EPC. Locally manufactured systems focus on durability and ease of installation, with competitive pricing and short lead times. Pile-driven systems penetrate the ground directly; concrete-foot anchors are used on demanding soils. Segmented profiles, full-length profiles, mini rails and purlin connections are used in ground applications.

İstanbul

NLB Solar Enerji A.Ş.

Façade PV and Custom Solutions

The NLB Mini Rail system allows solar plants to be installed on factory façades clad with trapezoidal sheet or sandwich panel. Where cladding is too weak, NLB Long StudBolt mounts with steel studs directly to the façade steel. The engineering team develops angled systems when required. Custom mounting solutions include floating PV, carports and façade PV, using Mini Rail and LongRail StudBolt as the main profile and connection lines.

İstanbul

Solarçelik

21x41 C Profile

The 21x41 C profile is a compact 21 mm-high mounting rail for industrial rooftop PV, sandwich-panel and standing-seam roofs. Section: A 41 mm base, B 21 mm height, C 8 mm lip. Thickness 1.2–2 mm; Ix 0.84 cm⁴. Pregalvanized unit weight is 0.88 kg/m at 1.20 mm, 1.08 kg/m at 1.50 mm and 1.41 kg/m at 2.00 mm. Steel grades S250GD, S350GD and DX51D; coating TS EN 10346 Z275 pregalvanized or TS EN ISO 1461 hot-dip galvanized. Slots are 11x25 mm oval CNC at 50 mm pitch. Stock lengths 3 m and 6 m, cut-to-length 1,000–12,000 mm.

İstanbul

İvosis

SPP Roof Steel Construction

For trapezoidal sheet, sandwich panel, tile, flat roof and standing-seam rooftop solar applications, the construction system is selected after static load and seismic calculations. On sandwich panel roofs, purlin spacings are calculated and leak-tight installation is required. On standing-seam roofs, clamps are attached to the seam wings and tightened from the side without drilling; horizontal or vertical members are chosen according to panel layout.

Şanliurfa

ERL Solar Montaj Sistemleri

Site Analysis, Feasibility and Design

As ERL, we first conduct site analysis and site feasibility in order to evaluate the site to be invested in the most effective way, and in the light of this data we design the most suitable construction for the application area. Sustainability is the core principle in mounting-system design, manufacturing, installation and maintenance. Correct analysis and design form the basis of the subsequent engineering and site implementation.

Ankara

ERL Solar Montaj Sistemleri

Project Design and Engineering

After the design is completed according to national and international standards, project design and engineering solutions are produced according to the unique parameters of the site such as client demands, regulatory requirements, site tests, static calculations, climate and geographical location. Engineering covers analysis, design and static calculation. Unique projects are designed from site-specific parameters including investor demands, site tests, shading analysis, climatic conditions and geographic location.

Ankara

ERL Solar Montaj Sistemleri

Implementation and Integration

We plan the implementation and integration services in the fields with expert engineers, implement them according to the project plan, control them at every step and complete them according to the projected principles. We carry out the implementation process with an effective project and supply management approach that adheres to occupational health and safety principles and complies with laws and regulations. Site analysis, maintenance and installation are among the application activities.

Ankara

NLB Solar Enerji A.Ş.

PV Installation Engineering and Structural Design

NLB Solar provides construction layout optimization, new mold and system design, and structural engineering to Eurocode. A quotation is issued within one day of receiving the panel layout. The technical office has 10+ civil engineers. Services for EPC firms include site assessment, project planning, custom solutions, layout optimization, university-certified structural reports and project authorship. Static analysis follows TSE and Eurocode.

İstanbul

Magafi Makina Enerji A.Ş.

Solar Installation Engineering

Magafi Makina's solar energy carrier systems are offered with a project-to-installation approach. The systems have modular designs, are produced for harsh weather and can be customized per project. Steel construction carriers cover solar ground-mount systems, pile-driven installation, concrete-base construction and field GES structure work. The Mouse Clamp is produced from St 52 steel or Magnelis for GES module mounting on sandwich panel, standing-seam and trapezoidal roofs.

Ankara

SDG Güneş Enerjisi Teknolojileri A.Ş.

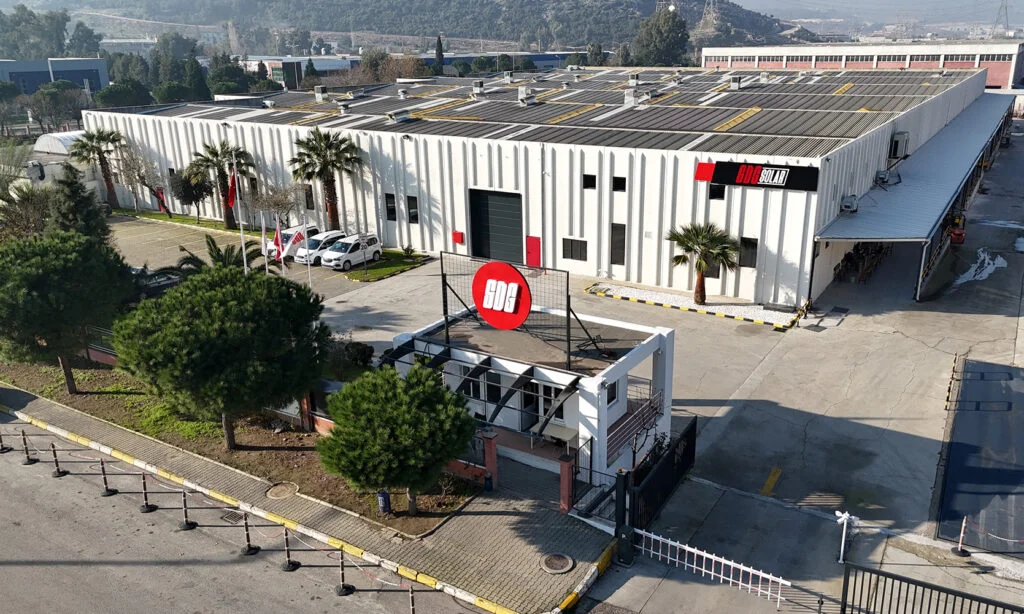

PV Module Manufacturing

PV module manufacturing is SDG Solar’s core activity. Monofacial and bifacial 550W models are made at the Manisa MOSAB plant. ISO 9001, 14001 and 45001 systems are applied. The line is set up for Half Cut and MBB processes.

Mani̇sa · Manisa Organized Industrial Zone

Dumanoğlu Enerji

Ground-Mount PV Installation

Ground plants such as Karaman 3 MW, Kayseri 6.5 MW and Kırşehir 6 MW are references. High-efficiency panels are supplied for field installation. The Ground-Mount PV Installation service is supplied in this scope from the plant. The Polatlı OSB factory (7,000 m² indoor) states 300 MW panel capacity; SWAPP covers 445–550 W half-cut PERC/bifacial with cells up to 25% and 11.133 MW of installed PV.

Ankara · Polatli Organized Industrial Zone

Dumanoğlu Enerji

Solar Panel Manufacturing

Half-cut PERC/bifacial panels are produced at 300 MW capacity in the 7,000 m² Polatlı factory. The SWAPP series covers 445–550 W. The Solar Panel Manufacturing service is supplied in this scope from the plant. The Polatlı OSB factory (7,000 m² indoor) states 300 MW panel capacity; SWAPP covers 445–550 W half-cut PERC/bifacial with cells up to 25% and 11.133 MW of installed PV.

Ankara · Polatli Organized Industrial Zone

Vergo Enerji

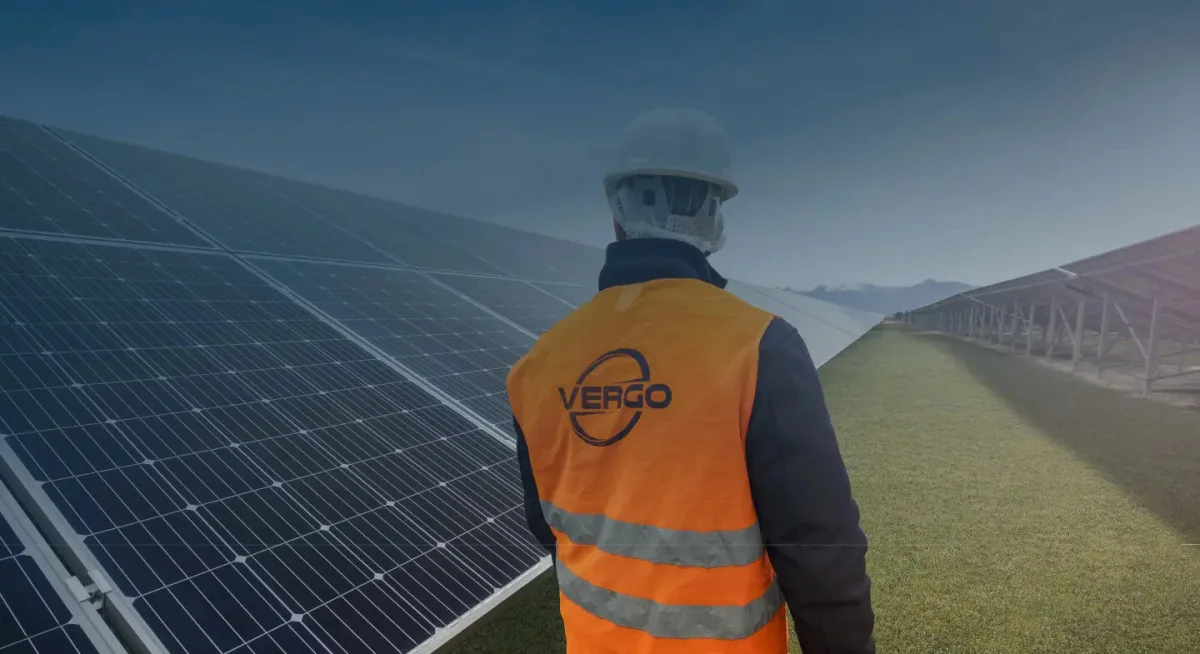

Fixed Structure Installation

Mani̇sa · Salihli Organized Industrial Zone

Vergo Enerji

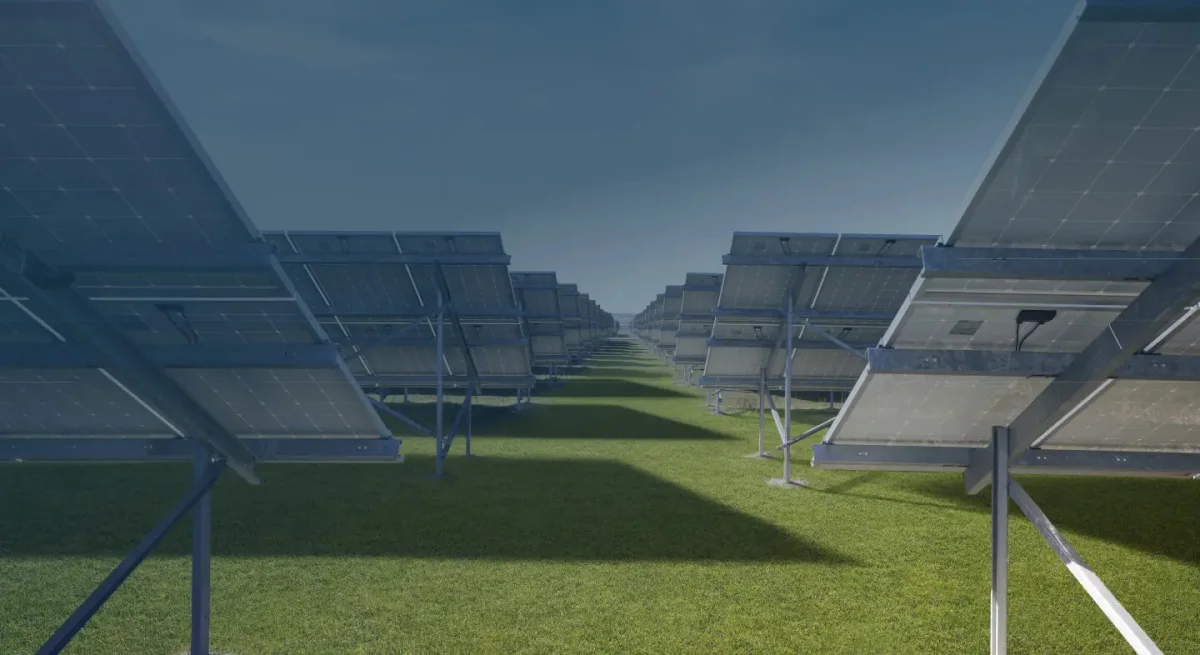

Engineering and Design

Mani̇sa · Salihli Organized Industrial Zone

Zena Enerji

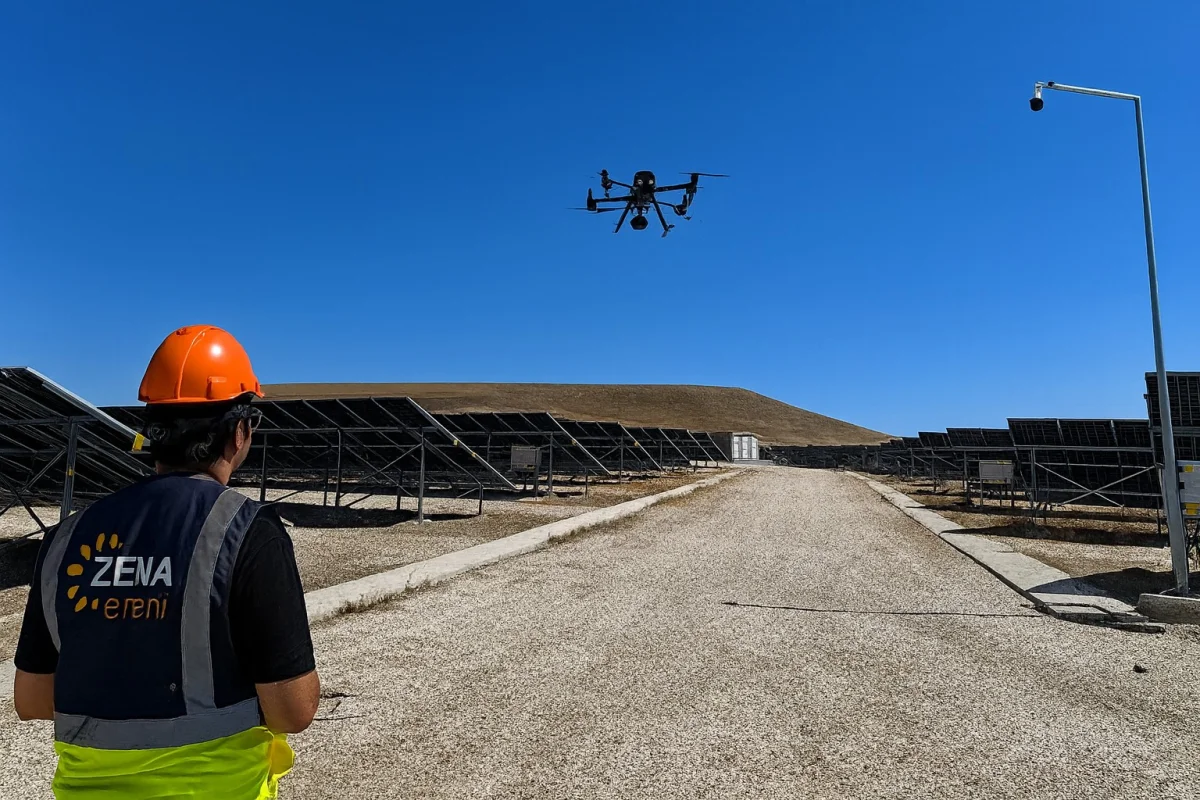

Site Installation

Site installation is the implementation service Zena Enerji publishes on licensed/unlicensed PV. Industrial rooftop PV and test-plant references are on the site. Installation runs with engineering and provisional acceptance. It is used for modules, structure and DC/AC connections on factory roofs and ground PV.

Yalova · Yalova Makina Ihtisas Organized Industrial Zone
