Product discovery

Pressure Vessels Product — Pressure Vessels Supplier Products

Product catalogs for Pressure Vessels Product from Turkish manufacturers in Pressure Vessels.

16 suppliers with 26 approved Pressure Vessels Product listings in Pressure Vessels.

Pressure vessels are essential industrial equipment for the safe storage of liquids and gases. These products are utilized across various industrial applications, ensuring efficiency and safety. You can find suitable pressure vessels from reliable suppliers located in cities like Mersin, Isparta, Burdur, and Izmir.

This catalog features a variety of pressure vessel products that offer different materials and designs. When comparing these products, consider criteria such as capacity, material durability, and specific applications. By carefully reviewing each supplier's offerings, you can identify the best option for your project.

26 products from 16 suppliers listed

Adess Group

Pressure Vessels & Columns

Pressure Vessels Product

Custom-built pressure vessels, columns and towers — from large-scale process towers to reactors, separators and storage vessels, designed to international standards. ADESS GROUP provides solutions for key process equipment, ranging from large-scale towers and columns to various types of pressure vessels. Fabrication follows ASME Section VIII Division 1, API standards (API 650, API 660, etc.), PED 2014/68/EU and CE requirements, in atmospheric, low-pressure and high-pressure designs. Project requirements can include radiographic testing up to 100%, PMI, pickling and passivation, heat treatment and stress relieving, internal pipe coils, pressure-vessel mechanical design software and AutoCAD Mechanical. Materials include carbon steel, stainless steel, nickel alloys, copper alloys and duplex and super duplex.

Teki̇rdağ · Ergene-1 Organized Industrial Zone

Güven Soğutma Üniteleri San. ve Tic. A.Ş.

Vertical Liquid Receivers

Pressure Vessels Product

Liquid receivers are used to accommodate fluctuations in the system and in ambient temperatures. On the high-pressure side they act as a cushion between liquid and hot gas, prevent hot gas from reaching the evaporator and allow liquid in the circuit to settle. They are also used to collect and store refrigerant when service is required. Receivers are manufactured from 0.5 L to 1000 L in accordance with CE 2014/68/EU [PED]. They are installed on the high-pressure side of the refrigeration circuit, at the condenser outlet. In the GVN VLR vertical range, an example rating is 33 bar maximum working pressure, 1 litre volume, Ø89 mm shell, ODS 1/4 in connection, HCFC, HFC, R290 and R717 refrigerants, and -20°C to +130°C operating temperature.

İstanbul

Güven Soğutma Üniteleri San. ve Tic. A.Ş.

Helical Oil Separators

Pressure Vessels Product

Helical oil separators separate oil from discharge gas and return it effectively to the compressor, keeping crankcase oil level and reducing excess oil circulation to raise system efficiency. They are designed for low-pressure oil management and can be used in many systems and with multiple compressors. The internal spiral and stainless filter are more efficient than conventional separators. The gas/oil mix is moved by centrifugal force along the helix so oil particles hit the wall and collect in the bottom chamber. They are designed for scroll and reciprocating compressors; use with screw and rotary compressors is not recommended. A GVN OS.H example is rated 45 bar maximum working pressure, 2.5 L volume, Ø102 mm, ODS 5/8 in, HCFC, HFC, R290, R717 and R-410A, PED CAT.I/CAT.II, -20°C to +130°C.

İstanbul

Güven Soğutma Üniteleri San. ve Tic. A.Ş.

Suction Line Accumulators

Pressure Vessels Product

Suction line accumulators are installed between the evaporator and the compressor. They hold liquid refrigerant so the compressor does not ingest liquid and only vapour is sent on. A U-tube and tube-in-tube design is used for maximum refrigerant flow and minimum oil hold-up: vapour is drawn from the top while oil and liquid collected in the vessel return through a hole in the return tube with the gas. Heat-exchanger accumulators are used when evaporation temperature is very low. They are recommended for parallel compressors, transport refrigeration, two-stage systems, hot-gas defrost, container cooling, long lines, reverse cycle, heat pumps and flooded evaporators. Hold-up capacity should not be below 50% of system charge; 50–70% is advised. A GVN SLA example is 33 bar maximum working pressure, 1.7 L, Ø114 mm, ODS 1/2 in, HCFC, HFC, R290 and R717, PED CAT.I/CAT.II, -20°C to +130°C.

İstanbul

TBT Tankbau Teknik Basınçlı Kaplar San. Tic. Ltd. Şti.

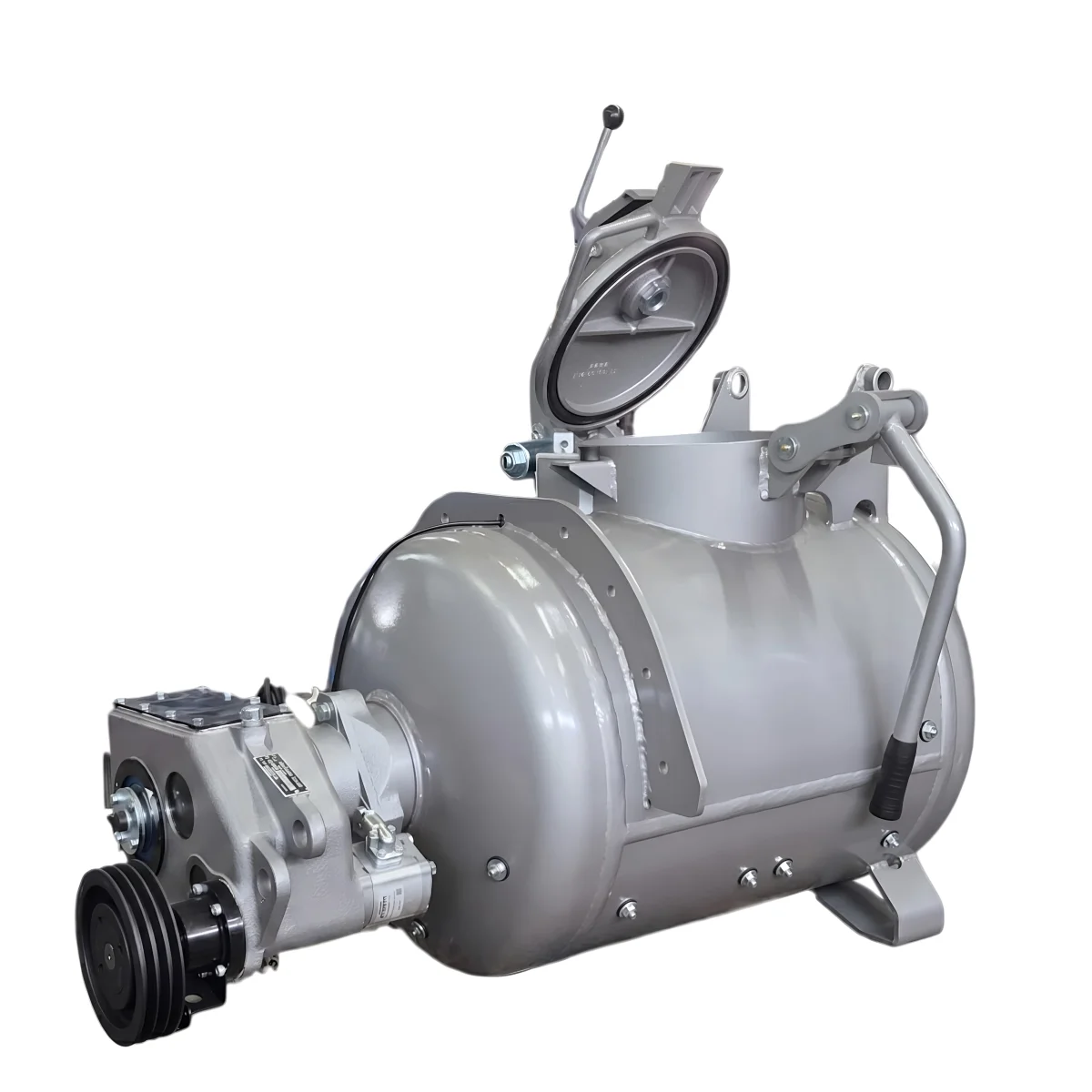

Screed vessel

Pressure Vessels Product

Our industrial and construction screed vessels are engineered from specialized steel alloys to deliver exceptional thermal and mechanical durability in strict compliance with international standards. Every unit undergoes rigorous hydrostatic testing and is fully certified by European Notified Bodies. All our products are manufactured to guarantee maximum operational safety and a prolonged service life.

İstanbul · Ikitelli Organized Industrial Zone

Gemsan Genel Endüstri Mühendislik Hizmetleri Sanayi Ticaret A.Ş.

Pressure Vessels and Process Vessels

Pressure Vessels Product

Produces cryogenic ammonia tanks, sulfuric acid storage tanks, reactors, blenders and related process vessels. Under its ISO 3834-2 welding quality scope it manufactures welded storage tanks, pressure vessels and pressure-vessel equipment. Completed references include ETİ Bakır Samsun cryogenic ammonia and sulfuric acid tanks and Rohm & Haas reactor/tank manufacturing.

Kocaeli̇

Simgetek İmalat ve Mühendislik A.Ş.

Storage Tanks

Pressure Vessels Product

Fixed and floating-roof tanks are manufactured and assembled. Storage tanks including spherical tank assembly are produced in accordance with TEMA, ASME, API and AD 2000 standards. Simgetek provides equipment design and manufacture for chemical, refining, petrochemical, fertiliser, gas and steel sectors in compliance with TEMA, ASME, API and AD 2000 standards.
