Revotek Elektronik

Isolation Transformer

Electrical & Electronics Product

Power and isolation transformers.

İstanbul · Birlik Organized Industrial Zone

Revotek Elektronik

Reactor

Automation & Electronics Product

MV/LV reactors.

İstanbul · Birlik Organized Industrial Zone

EAE Elektrik A.Ş.

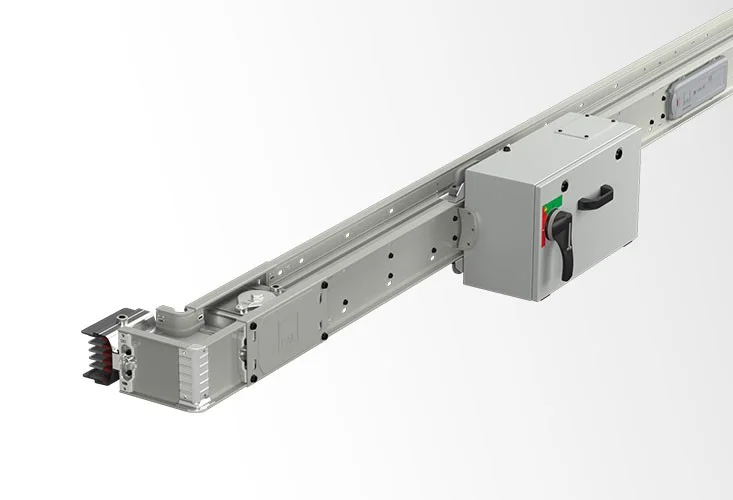

E-Line KX Compact Busbar

Power Distribution Equipment Product

E-Line KX Series Compact Busbar Systems are used in horizontal and vertical energy distribution and transmission in Bolt-on (supply from the junctures) and Plug-in (from window points on the busbar housing and the junctures) types. They provide energy transmission and distribution at 400A–6300A with tin-plated aluminium or copper busbar conductors. The housing is extruded aluminium, RAL 7038 electrostatic painted; conductors are insulated with Class B polyester film and epoxy coating. Protection degree is IP55 standard and IP65/67 optional. KXB tap-off boxes are 160/250/400/630/800 and 1000A bolt-on; KXP tap-off boxes are 160–630A plug-in.

İstanbul

EAE Elektrik A.Ş.

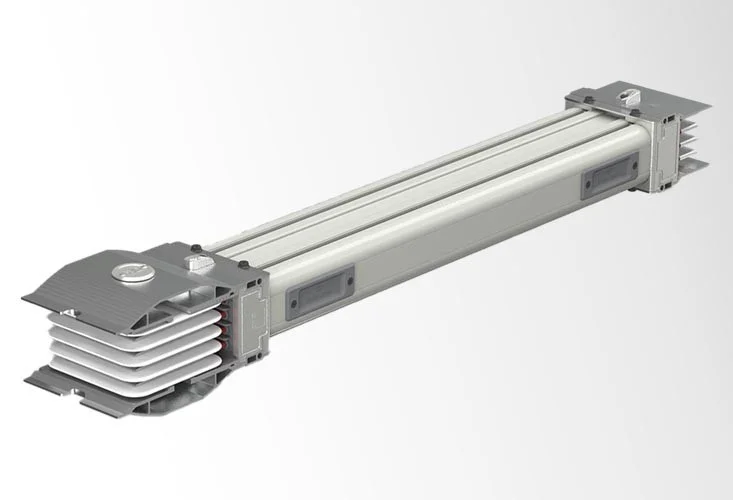

E-Line CCR Cast Resin Busbar

Power Distribution Equipment Product

E-Line CCR is an aluminium-housed cast resin busbar system rated 600A–6300A. It is used to carry high currents on transformer-to-switchboard connections, rising mains and factory power distribution, and in outdoor, gallery, chemical plant, harbour and tunnel applications. Aluminium housing covers the DUROCOMP composite made from specially selected pure silicon minerals and epoxy resin, insulating the busbar from external elements. It complies with IEC 61439-6, offers outdoor IP68 protection, is corrosion- and chemical-resistant, and is compatible with E-Line KX modules.

İstanbul

Senkron Elektrik

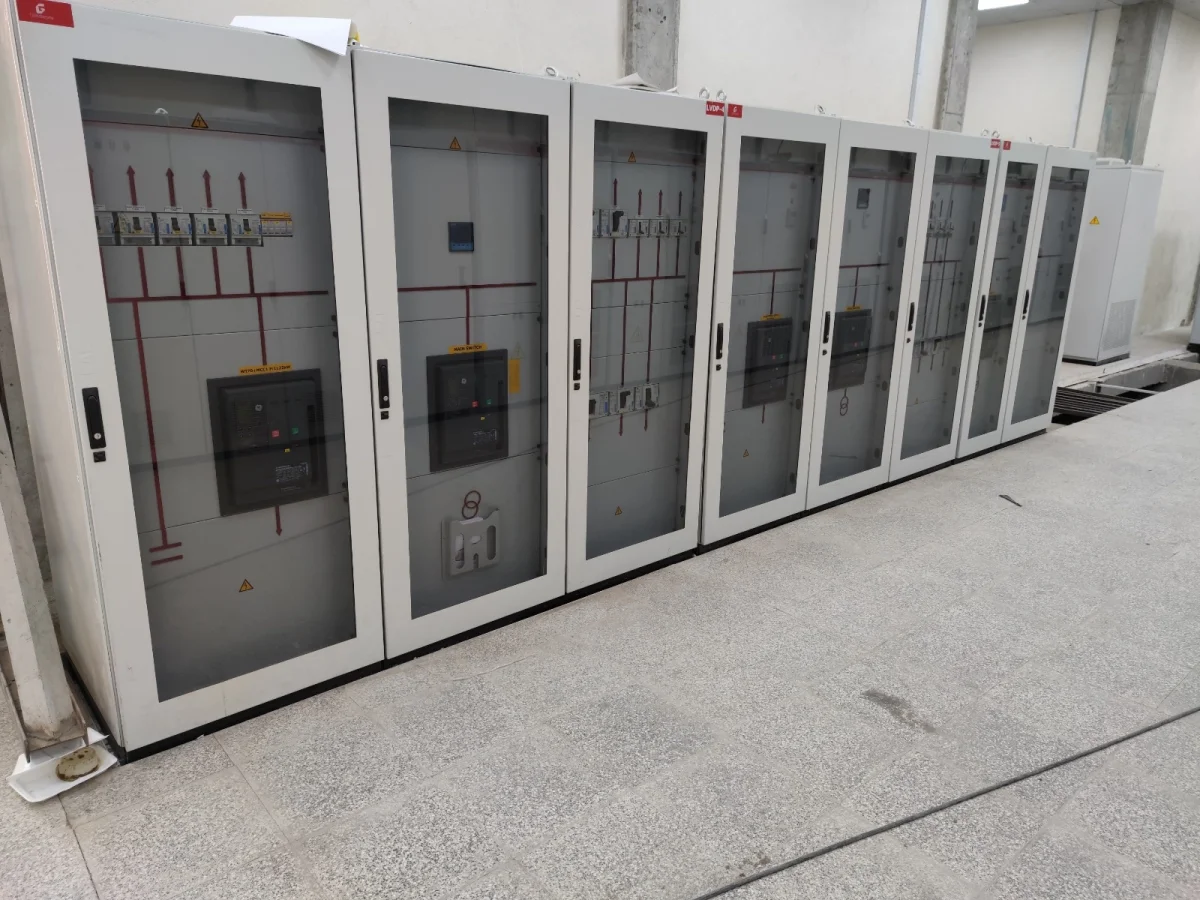

Main Distribution Panels

Power Distribution Equipment Product

LV distribution panels are manufactured up to 6300 A with IP ratings suited to indoor and outdoor conditions, with TSE and ISO standard documents and type tests. Design to standards, a robust enclosure and resistance to high short-circuit currents and dynamic forces during breaker switching are the main points of attention. These are the panels that carry the main electrical distribution in factories, workshops and workplaces. For consumers with building-type transformer stations, the transformer LV output feeds the main distribution panel directly, and energy is then distributed to sub-panels.

Karabük · Karabuk Organized Industrial Zone

Tuleron Makina Ltd. Şti.

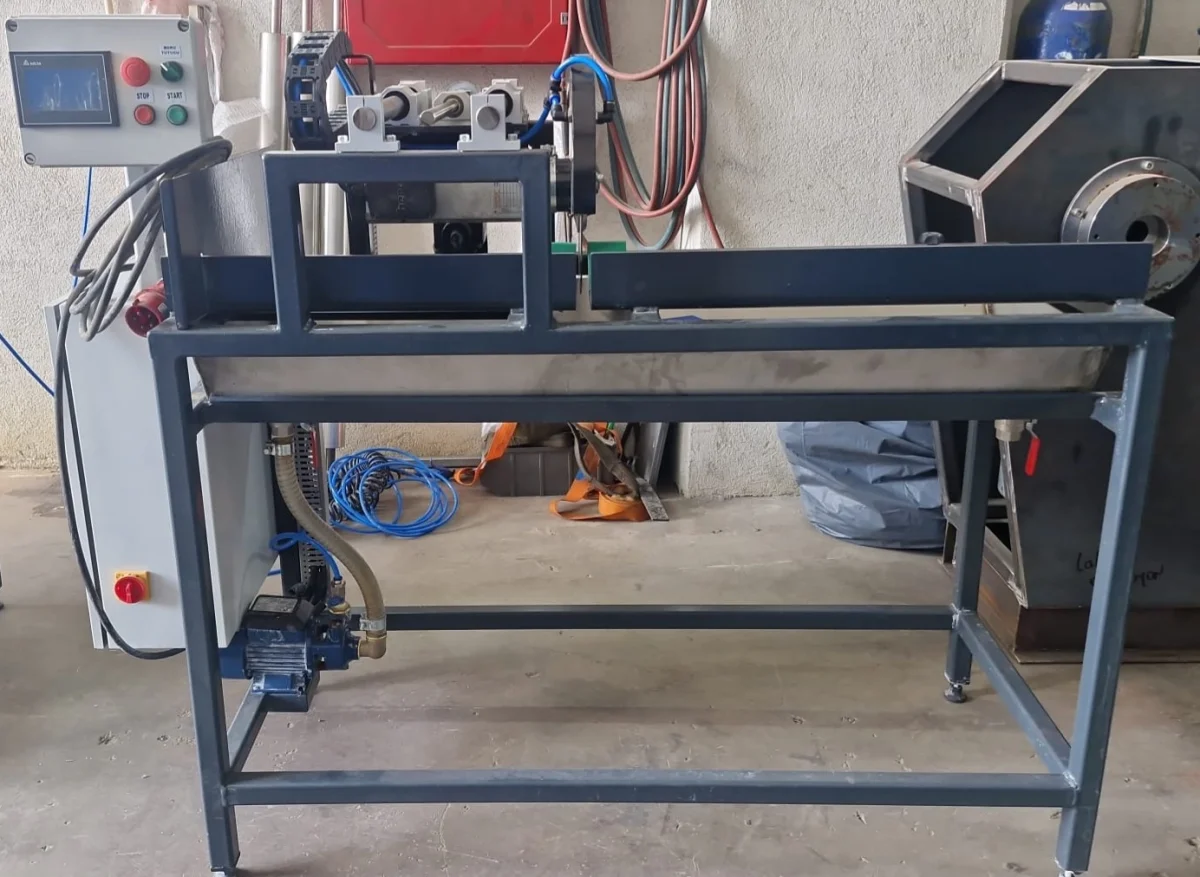

Ceramic Cutting Machine

Power Distribution Equipment Product

An automatic cutting machine specially manufactured for cutting and grooving operations in the production of medium-voltage cartridge fuses within the technical porcelain category.

İstanbul · Tuzla Organized Industrial Zone
