Mekpan Panel

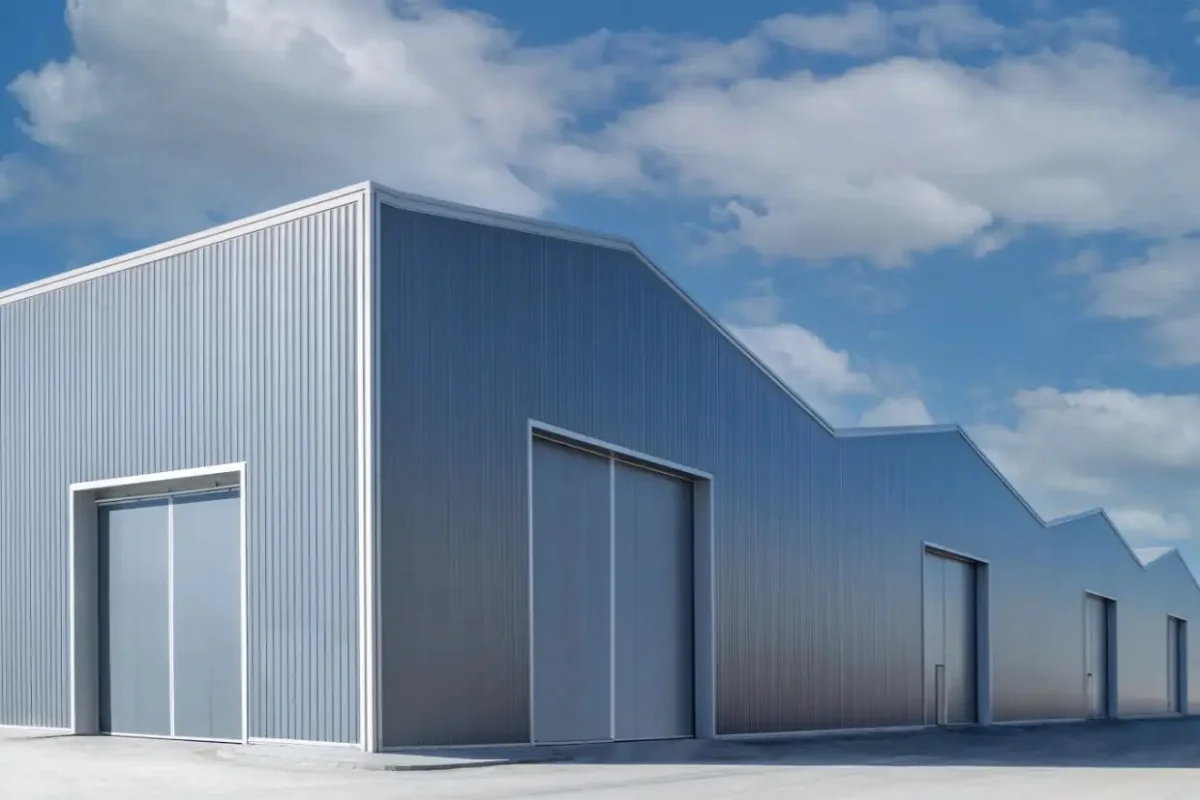

Siding Facade Sandwich Panel
Sandwich Panels ProductHidden-fix siding facade panel is offered with PUR for acoustic/thermal/water performance and PIR as a fire-retardant option. Useful width 1000 mm, length from 2.4 m; PUR 40±2 kg/m³; thickness 50–60 mm; B-s2,d0. Skins 0.50 / 0.40 mm. The site describes it as hidden-fix siding first made in Turkey.
Konya · Büyükkayacık Organized Industrial Zone
Mekpan Panel

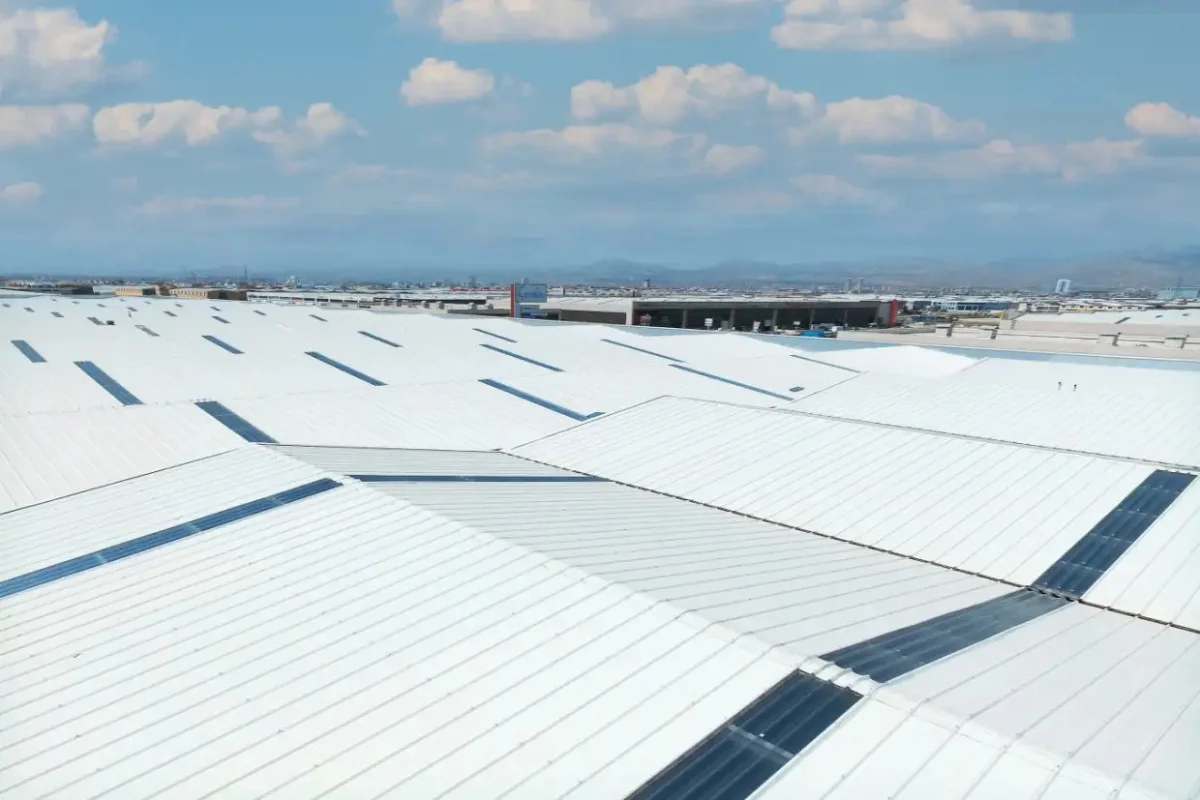

3-Rib Sandwich Roof Panel
Sandwich Panels ProductMekpan 3-rib roof panel has a PUR core that does not absorb water and limits flame spread. Useful width 1000 mm, length from 2.4 m. PUR 40±2 kg/m³ (EN 1602), thickness 20–100 mm, EN 13501 B-s2,d0. Top skin 0.50 mm, bottom 0.40 mm; BGS or aluminium. Produced in Büyükkayacık OSB, Konya.
Konya · Büyükkayacık Organized Industrial Zone
Related products
Trapez Trifon
Mineral Wool Sandwich Panels
Sandwich Panels ProductAssan mineral-wool panels are published as 1000 R5T five-rib (10% pitch, side lap) and 1000 WT hidden-fix horizontal/vertical. Trapez Trifon sells and installs them from the Osmangazi office. They are used on fire-rated roofs and facades. An SGS application competence certificate is on the site.
Bursa
Trapez Trifon
PUR–PIR Sandwich Panels
Sandwich Panels ProductAssan PUR–PIR panels are installed by Trapez Trifon from Bursa. The product page lists Master R4 capped sandwich, Nova 3 three-rib side lap (10% pitch), Nova 5 five-rib long span and 1100 CS bacteria-coated cold room. Activity since 1992 is installation-led.
Bursa
Davut Panel
Cold Store Sandwich Panel
Sandwich Panels ProductCold-store panel is produced as PUR-cored sandwich. The Adana OSB plant has 2.5 million m²/year panel and accessory capacity. The product list shows cold-store panel as a separate item. Dispatch leaves the Sarıçam plot near the ports.
Adana · Adana Organized Industrial Zone
Davut Panel
3-Rib Sandwich Roof Panel
Sandwich Panels Product3-rib roof panel is produced on the PUR line in Adana Hacı Sabancı OSB. The materials page states 90–95% closed-cell polyurethane, PIR as fire-improved PUR, density from 30–40 kg/m³, no water absorption and dimensional stability −30/+80 °C. Annual capacity is 2.5 million m². The product page is a drawing without a long specification text.
Adana · Adana Organized Industrial Zone
