Product description

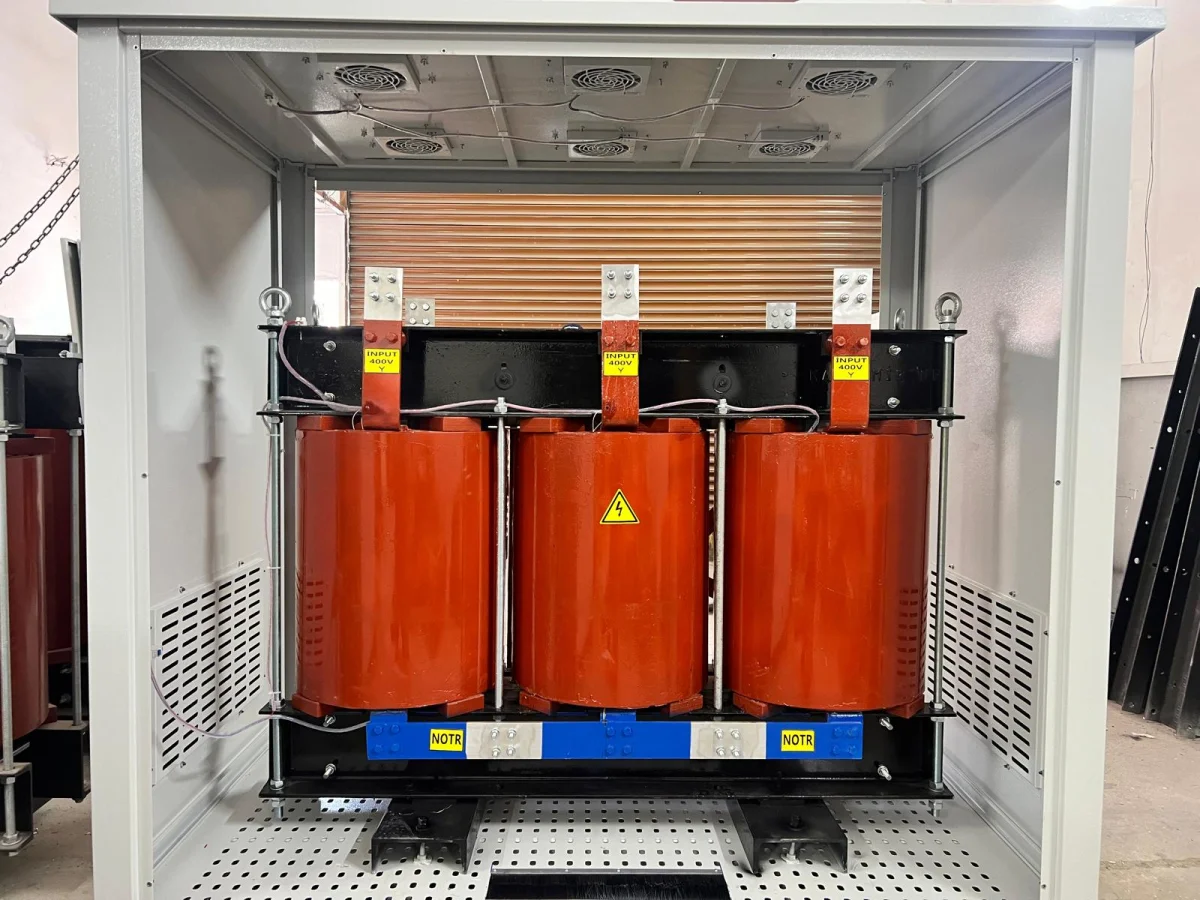

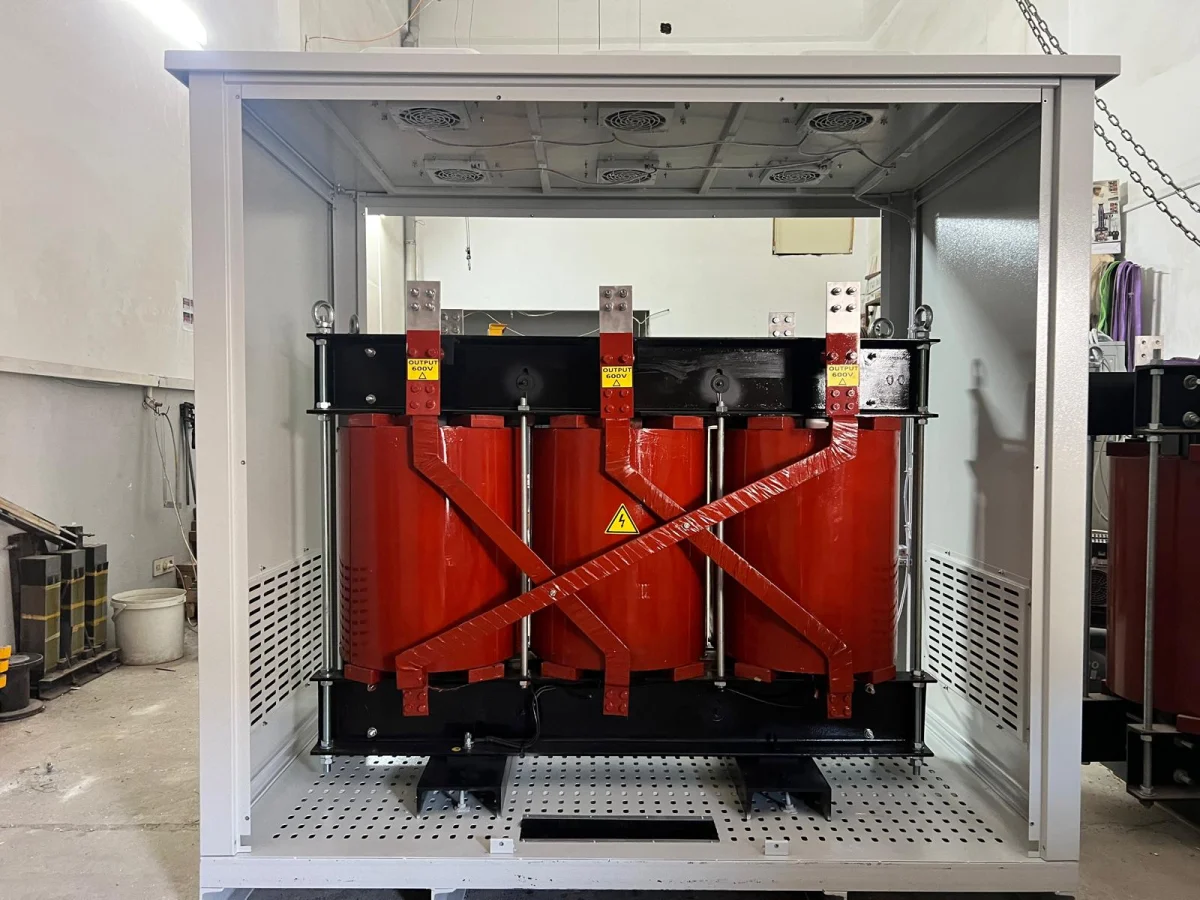

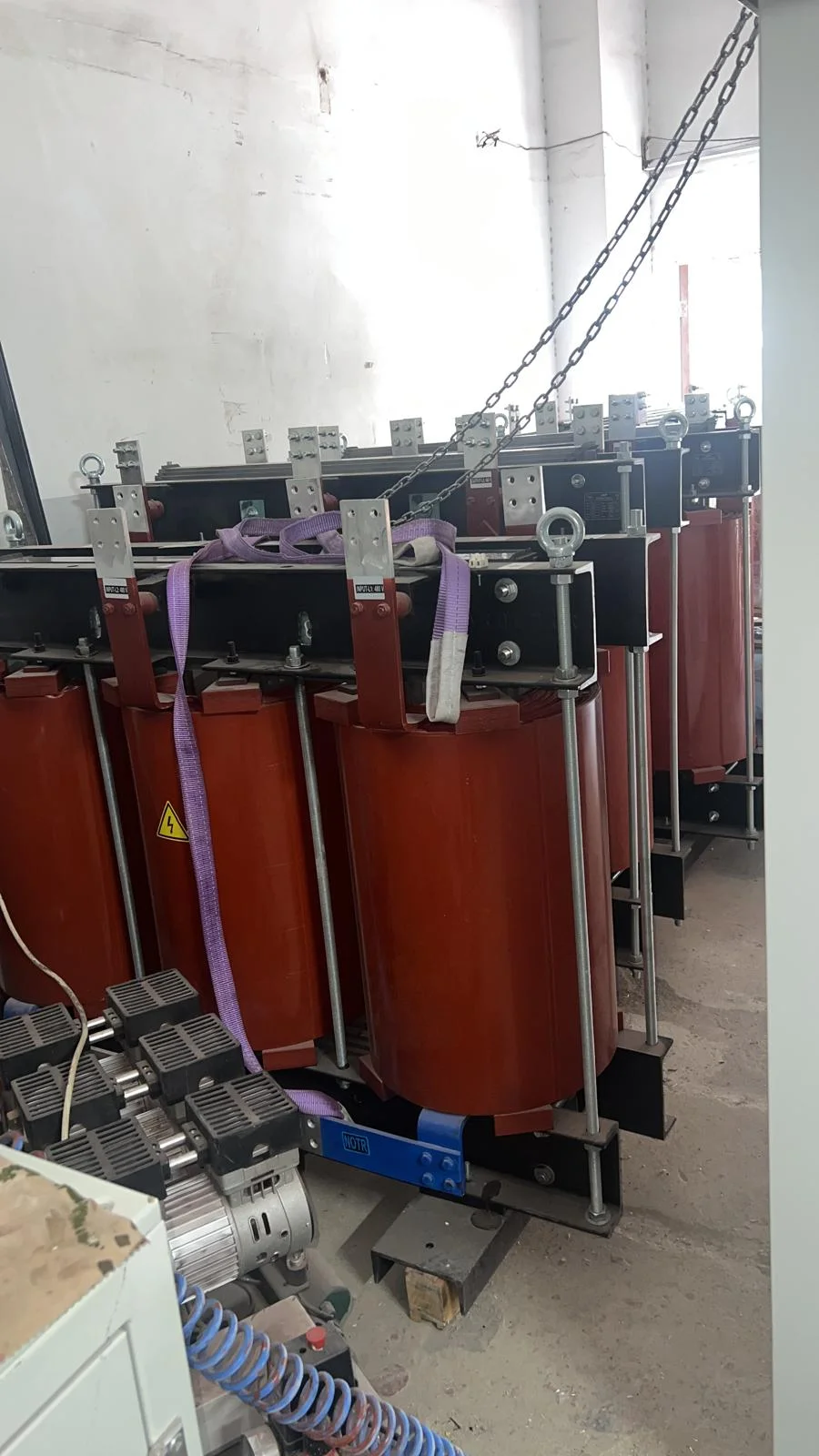

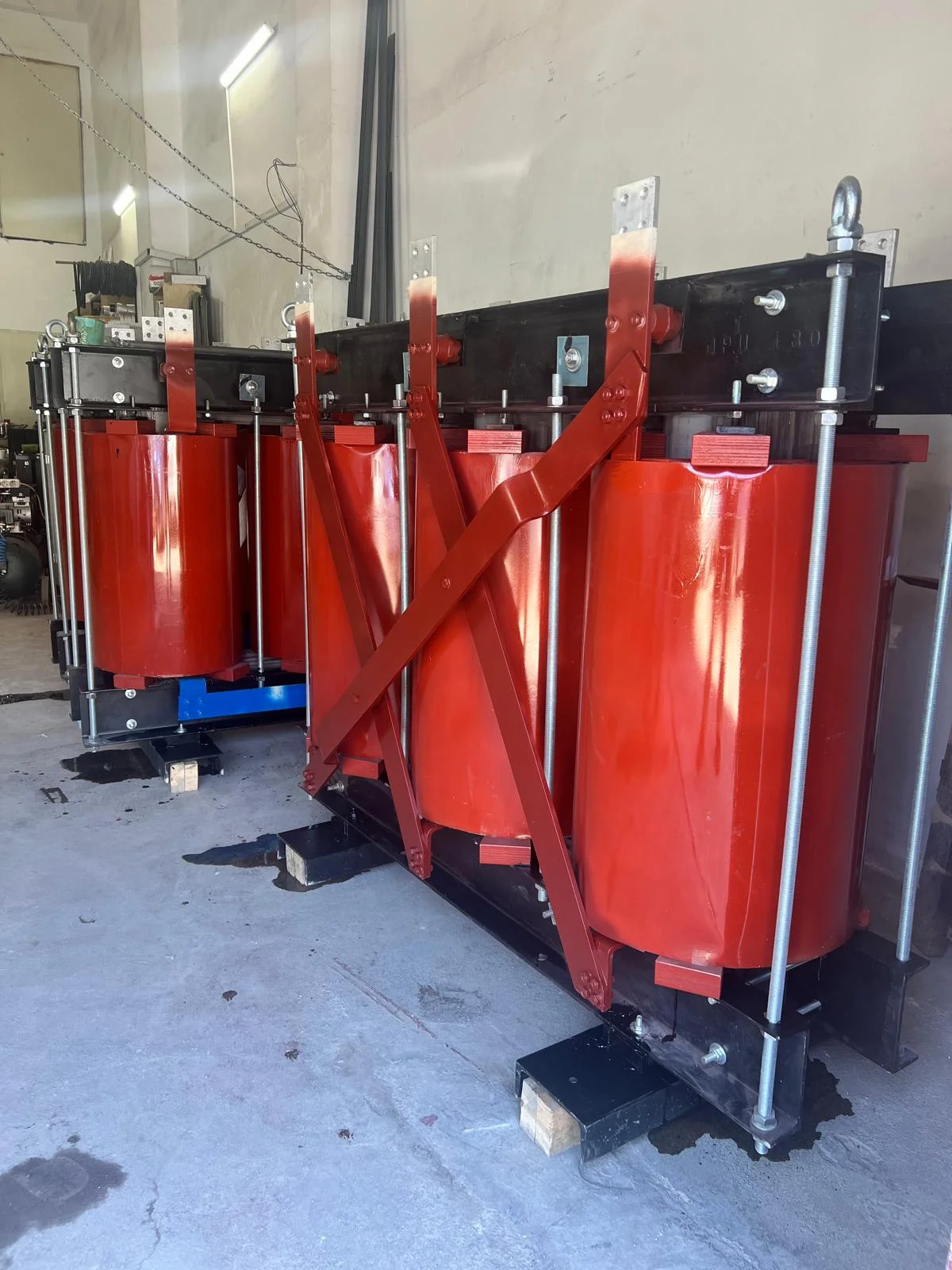

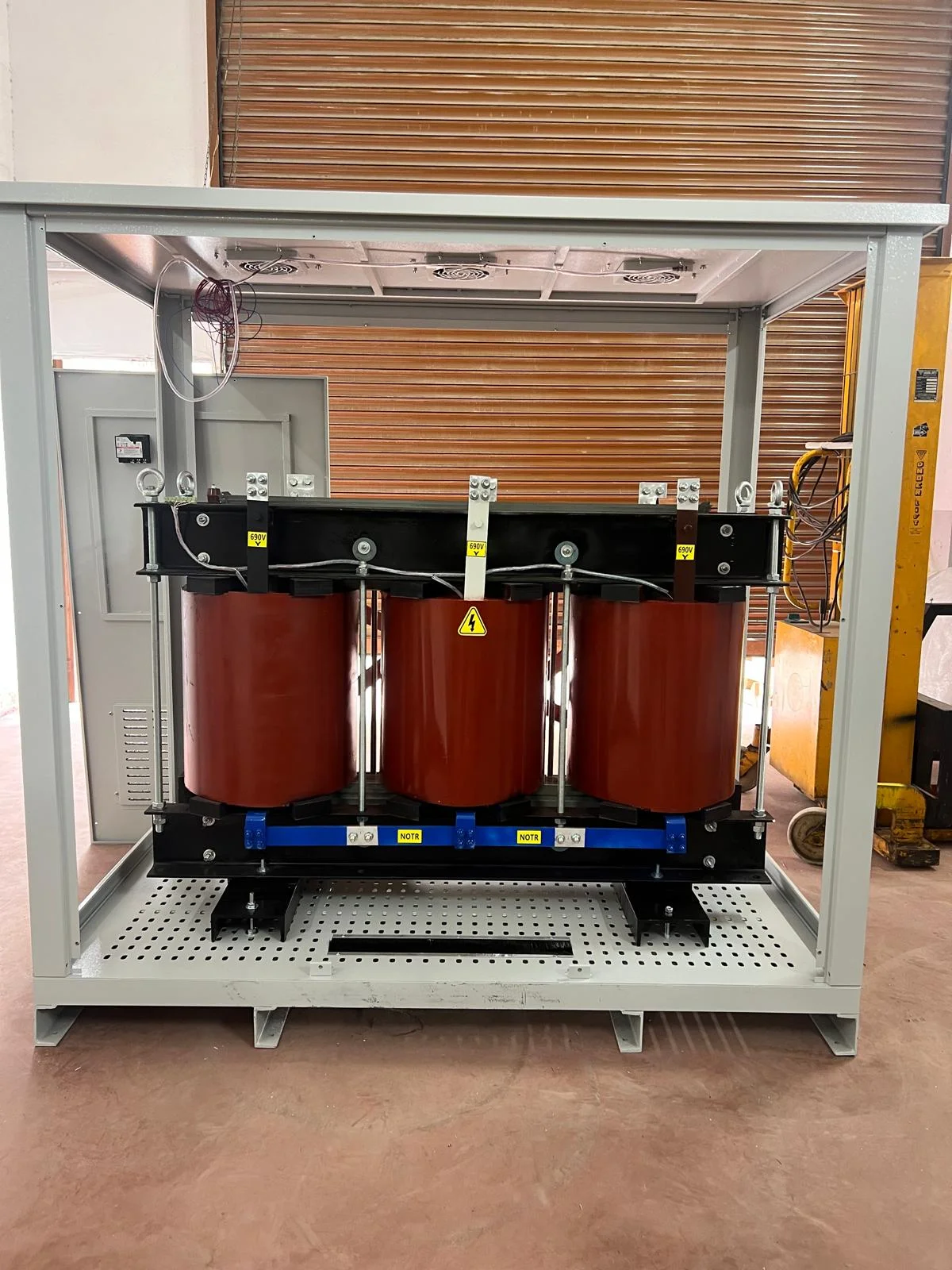

MBB Cast Resin Dry-Type Transformers are engineered to deliver maximum safety, energy efficiency, and reliable performance for industrial facilities, commercial buildings, hospitals, data centers, renewable energy plants, and critical infrastructure.
The epoxy resin insulated windings provide excellent resistance against moisture, dust, chemicals, and harsh environmental conditions. Their oil-free construction minimizes fire risk while significantly reducing maintenance requirements.
Manufactured according to IEC 60076-11, MBB dry-type transformers ensure low losses, high efficiency, and long operational life.
Technical Specifications
Power Rating: 5 kVA – 3150 kVA
Voltage Class: Up to 36 kV
Frequency: 50 / 60 Hz
Insulation: Cast Resin
Cooling: AN / AF
Protection Class: IP00 – IP23 (Optional)
Low-loss design
Maintenance-free operation
Low noise level
Manufactured according to IEC 60076-11
Applications
Industrial Plants
Manufacturing Facilities
Data Centers
Hospitals
Shopping Malls
Hotels
Metro & Railway Systems
Wind Power Plants
Solar Power Plants
Public Buildings
Commercial Complexes
High-Rise Buildings
Technical specifications
- Minimum order (MOQ)
- 1 pcs
