Product description
Technical specifications
- Minimum order (MOQ)
- 1 m²
More from this company
Hacıoğlu Metal & Yapı

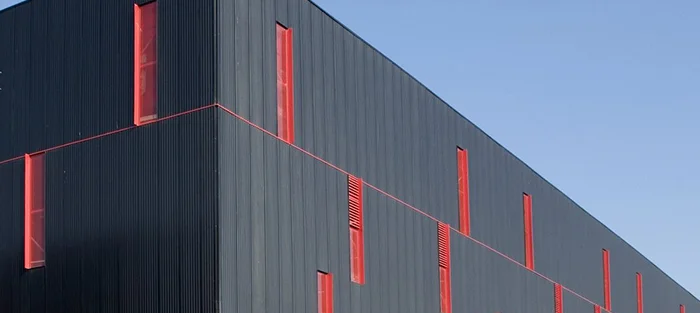

Sandwich Facade Panel
Sandwich Panels ProductFacade sandwich panels are offered with PUR/PIR or mineral-wool cores and hidden-fix, standard, micro-rib, deep-rib and sinus surface profiles. Faces can be painted galvanized steel or aluminium; a cold-store panel variant is listed. Thickness, colour and joint detail follow the project. ISO, TSE and CE marks are published on the product pages.
Kocaeli̇
Hacıoğlu Metal & Yapı

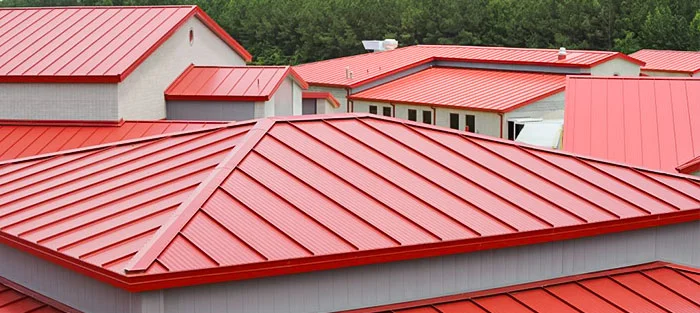

Sandwich Roof Panel
Sandwich Panels ProductHacıoğlu Metal sandwich roof panels are used on industrial roofs for thermal, moisture, water, acoustic and fire performance. PUR/PIR 3-rib and 5-rib panels are supplied with painted galvanized steel or aluminium faces, 40–200 mm thick and 2–15 m long. U-values under TS EN 14509 range from 0.49 to 0.11 W/m²K by thickness; reaction to fire is B-s2,d0 (PUR) and B-s1,d0 (PIR) per TS EN 13501-1. Mineral-wool cores are offered at A2-s1,d0.
Kocaeli̇
Related products
Trapez Trifon
50/207 Trapezoidal Sheet
Trapezoidal Sheets Product50/207 trapezoidal sheet is published as painted galvanized or galvanized single skin for roof, facade and concrete decking, five ribs. Uninsulated solutions in About include painted galvanized, aluminium and galvanized trapezoidal. Dispatch and installation are from Osmangazi, Bursa.
Bursa
Trapez Panel
45/150 Trapezoidal Sheet
Trapezoidal Sheets Product45/150 trapezoidal sheet has 7 ribs, 45 mm / 150 mm and 900 mm net width. The same galvanized/aluminium and polyester-PVDF-plastisol coating applies. The deeper rib is used on longer-span roofs. Max length 16 m.
İstanbul
Trapez Panel
20/96 Trapezoidal Sheet
Trapezoidal Sheets Product20/96 trapezoidal sheet has 12 ribs, 20 mm rib height, 96 mm pitch and 1056 mm net width. Visible face 5 µ epoxy + 20–22 µ two-coat polyester RAL; reverse 5 µ epoxy. Galvanized steel or painted aluminium; TS EN 10346. Aluminium 0.50–1.20 mm, steel 0.50–0.70 mm, max length 16 m. POLYESTER / PVDF / PLASTISOL.
İstanbul
Trapez Panel
29/124 Trapezoidal Sheet
Trapezoidal Sheets Product29/124 trapezoidal sheet has 9 ribs, 29 mm / 124 mm and 992 mm net width. Coating and metal match 20/96: epoxy+polyester RAL, TS EN 10346, max length 16 m. Produced at Gebze and Düzce. Used on roofs and facades.
İstanbul
