Erdes Teknoloji Kimya Endüstriyel Tasarım Kontrol ve Dış Ticaret Ltd. Şti.
Ankara · Çankaya
Erdes Teknoloji Kimya Endüstriyel Tasarım Kontrol ve Dış Ticaret Ltd. Şti.
ERDES Teknoloji Kimya — fuel cell and electrolyzer products in Ankara: bipolar plates, test cells and laboratory system integration.
About
Production profile
Company type
Activity types
Production capabilities
Machine park
Materials worked
Manufacturing processes
Industries served
Activity categories
Factory gallery
Products

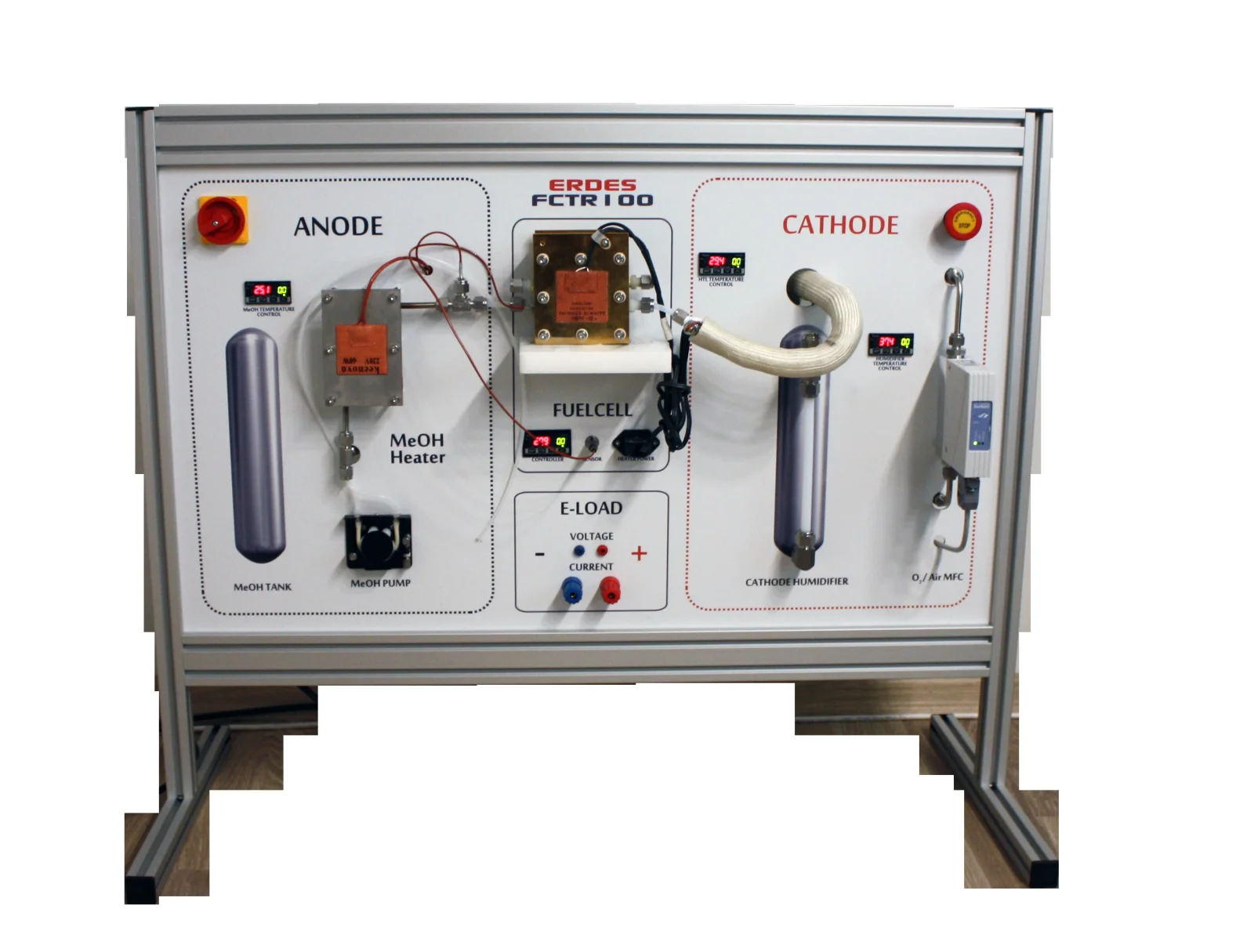

FCTR100 / TSFC 101 panel-type fuel cell test system
The ERDES product page publishes TSFC 101 PEM Fuel Cell Test System (SKU FCTR100) as a panel-type device for academic tests and undergraduate or graduate educational work on methanol fuel cells. It is described as designed and manufactured with high-quality materials and instruments to serve a laboratory for years. It is designed so that students can visually position the anode, cathode and fuel cell and readily understand the chemical events in the cell together with parameters such as temperature, current, voltage and flow rate. The English page lists the same SKU as FCTR100 Methanol Fuel Cell Test System for panel tests and undergraduate or graduate education.

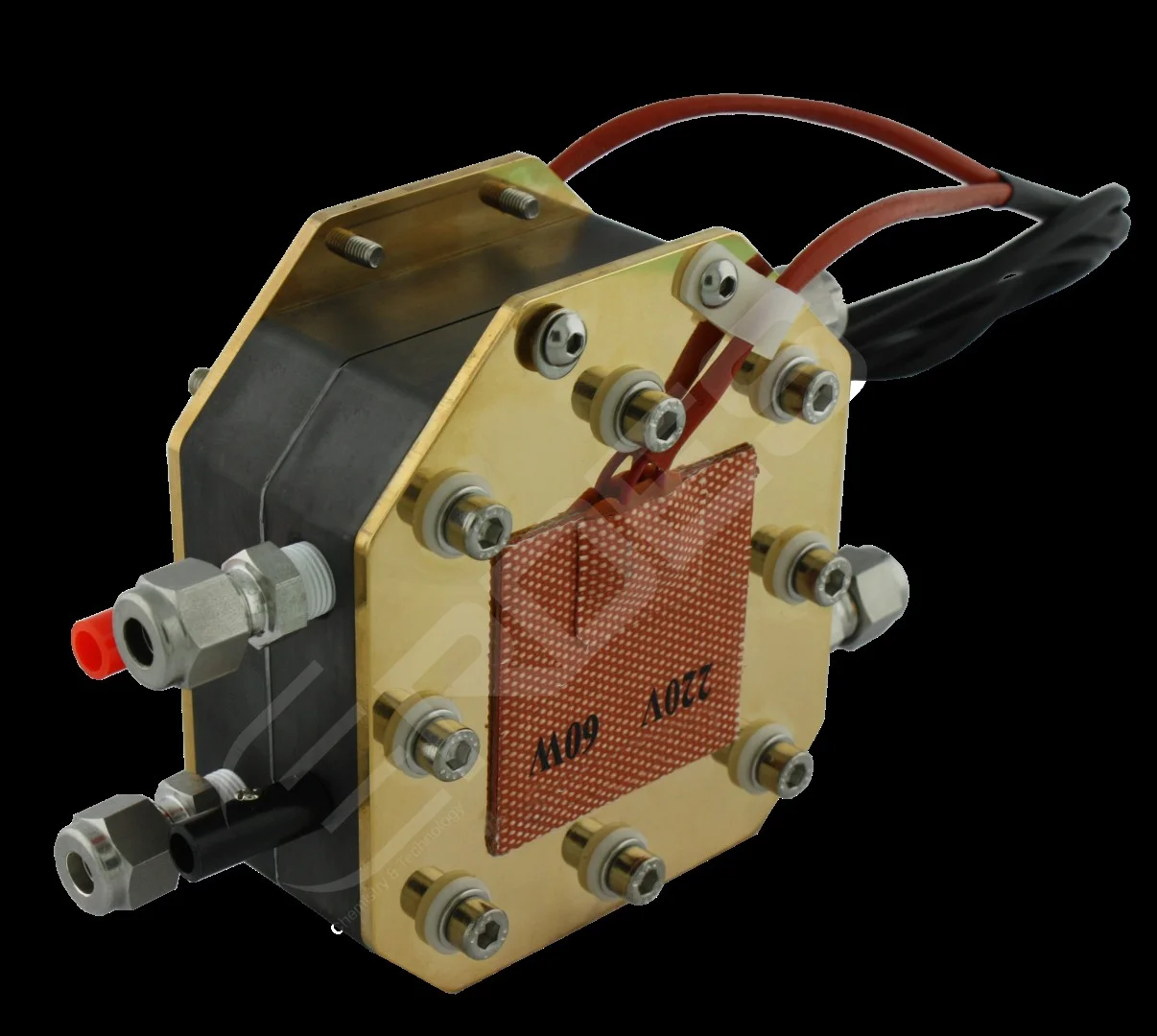

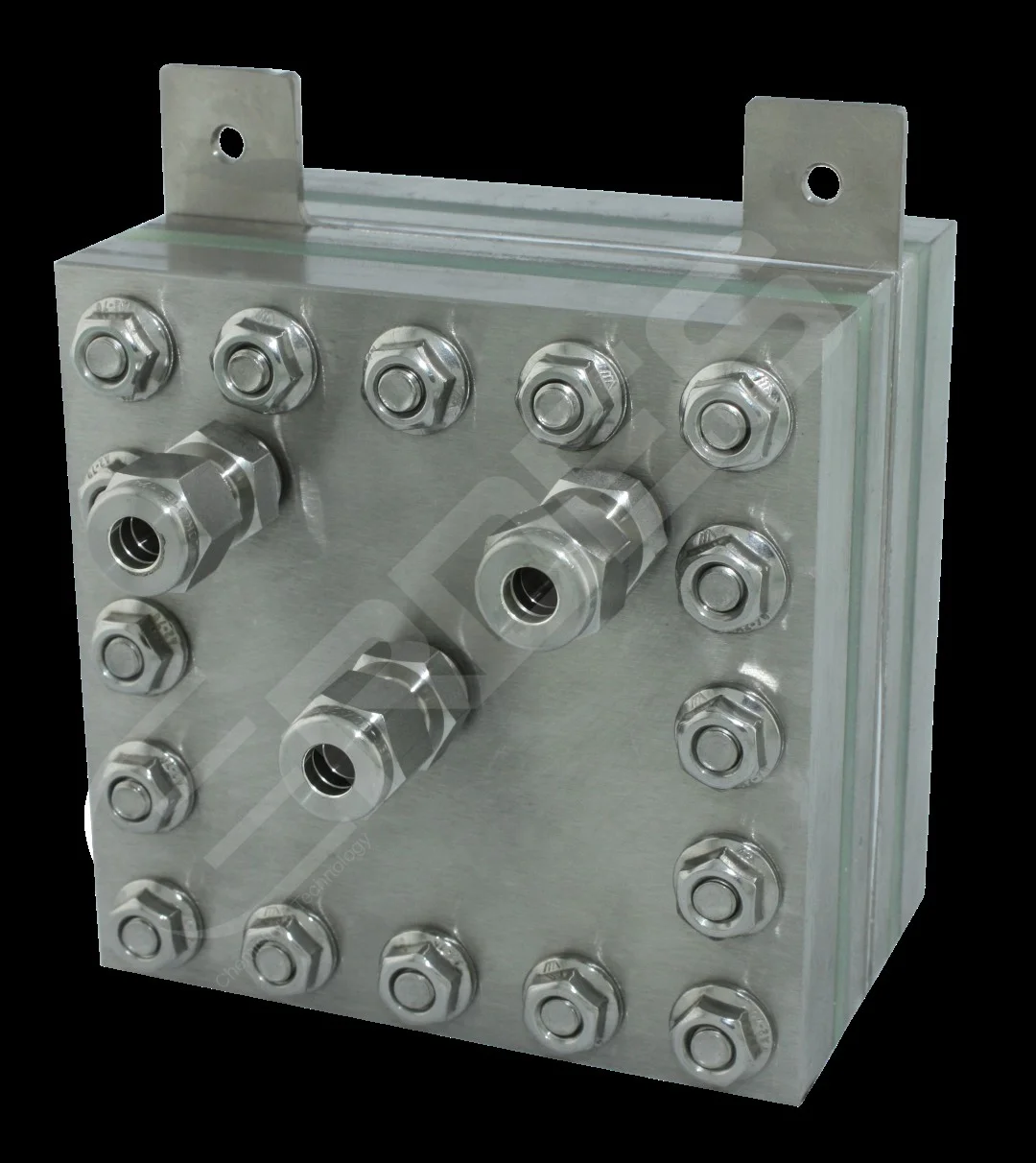

PEM electrolyzer and MEA test-cell hardware
The ERDES product page publishes PEM Electrolyzer Hardware (SKU ETC100-005) as research-purpose electrolyzer hardware. The text states it provides reliable hardware for developing different materials for flow-field, different catalysts, membranes, membrane electrode assemblies and current distributors. Active area is selectable. In the Fuel Cells category the same hardware family also lists a PEM Fuel Cell Test Cell (PEMSC-05, selectable active area); both items are for laboratory-scale cell and MEA development.

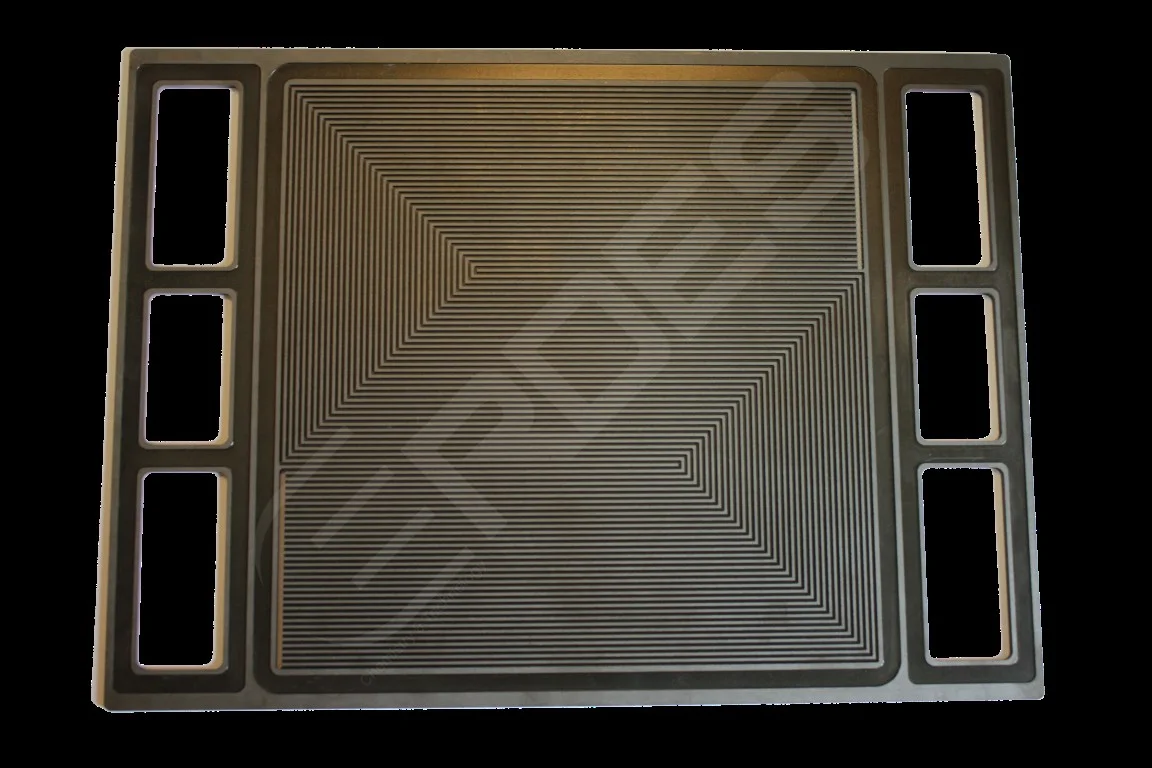

Fuel cell bipolar plate and isostatic graphite sheet
The ERDES bipolar plate page lists Custom Design Bipolar Plate and isostatic pressed graphite sheets at 6.35 mm, 4.75 mm and 3.175 mm. The 3.175 mm sheet (SKU IGP125-44) is published as high-density, sanded-surface, isostatic-moulded graphite; tolerances are ±0.0254 mm on thickness and ±0.127 mm on length and width. Plate grade is Fuel Cell Grade (FC-GR347B); bulk density 1.99 g/cm³, maximum operating temperature 170 °C, flexural strength 65 MPa, particle size 0.00254 cm, electrical resistivity 0.0012 ohm-m. The same product text states the sheet is suitable for solder fixtures, glass-metal seals, precision base plates and fuel cell production.
Services
Fuel cell laboratory process and automation design
On the Services page, Process and Process Automation Design is published as expertise in chemical production technologies, covering chemical process design, chemical production plant installation, gas production plant installation and process automation. Homepage solution headings list laboratory systems, custom systems, fuel cell and hydrogen, process control, data acquisition and recording, and high-temperature fuel cell / SCADA. The About page states products, engineering and consultancy in renewable energy technologies, process design and control.
Fuel cell system integration and custom system design
On the Services page, System Integration and Custom System Design is published as engineering, design and manufacturing solutions for laboratory systems, data acquisition and recording systems, fuel cell systems or any laboratory system required. The About page states that besides supplying requested products, installation services are offered at the device level and custom system integrations can be carried out upon request. All project stages from planning to product delivery are managed transparently, and support continues after delivery through the technical team.
Fuel cell and hydrogen training and consultancy
On the Services page, Training and Consultancy is published as ERDES offering training and consultancy on fuel cells, hydrogen gas generation, storage and safety. The About page states the mission of sharing industry experience with customers and bringing required technologies to the country. Engineering solutions are described as coming from long-standing partnerships and expertise gained through representing leading companies in the industry.
