Çayırova Otomotiv Sanayi ve Ticaret A.Ş.
Çayırova is a market leader in manufacturing axles, brake systems and suspension for agricultural and industrial machinery.
About
Production profile
Company type
Activity types
Production capabilities
Materials worked
Manufacturing processes
Certifications
Export profile
Industries served
Activity categories
Map
Location is approximate, based on the address. · © OpenStreetMap

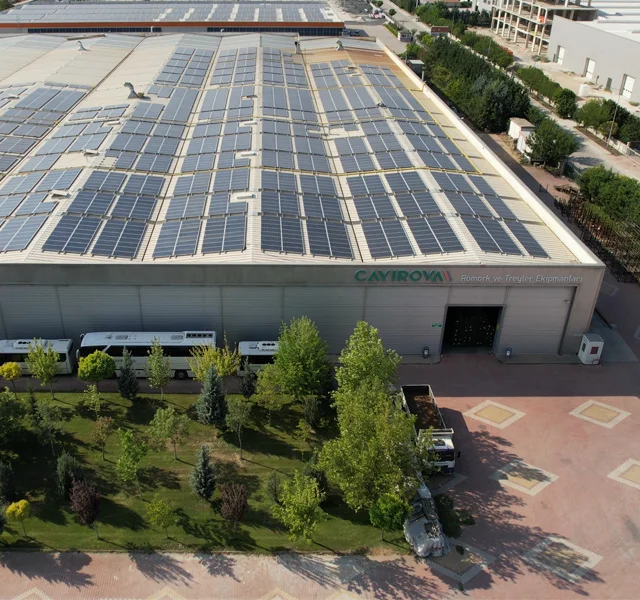

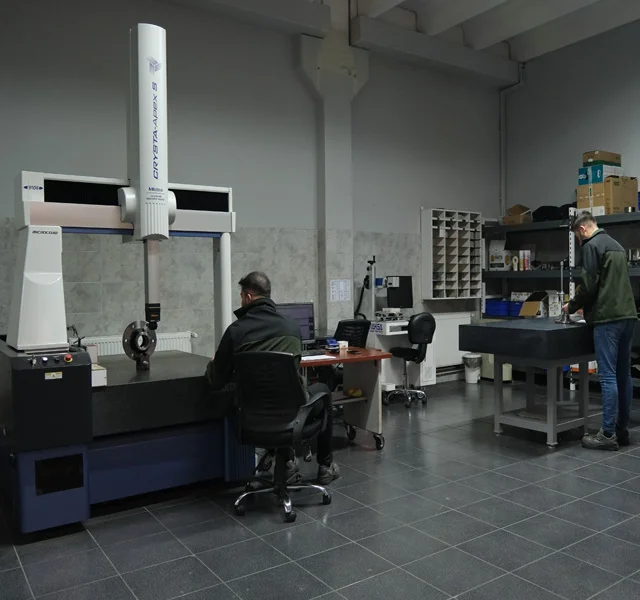

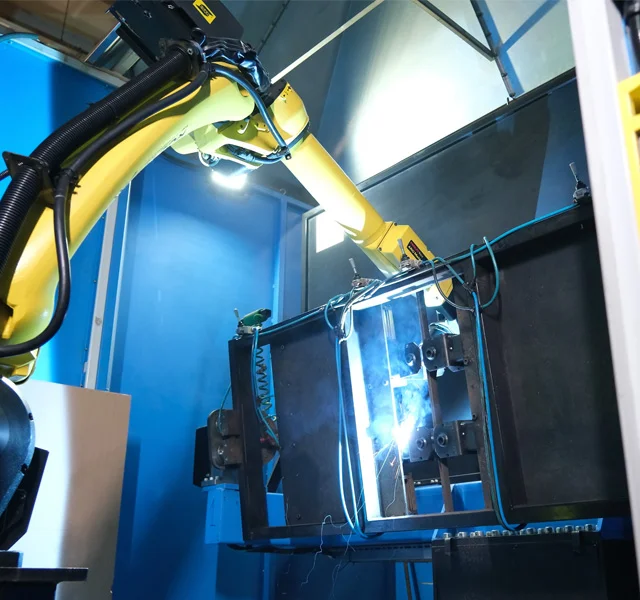

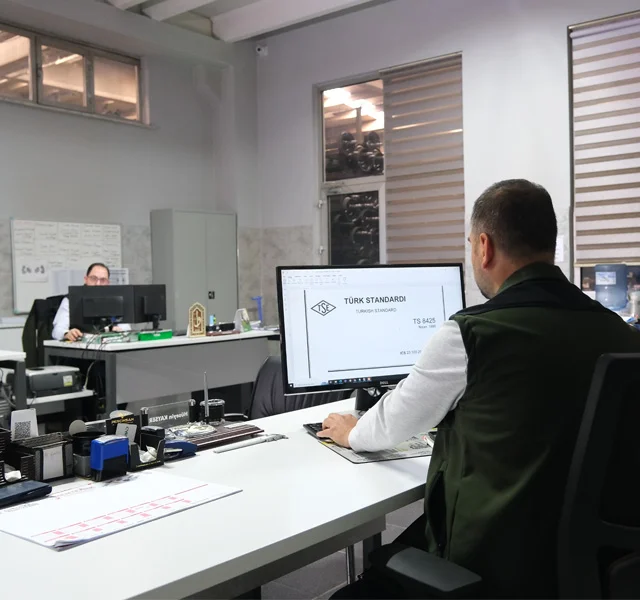

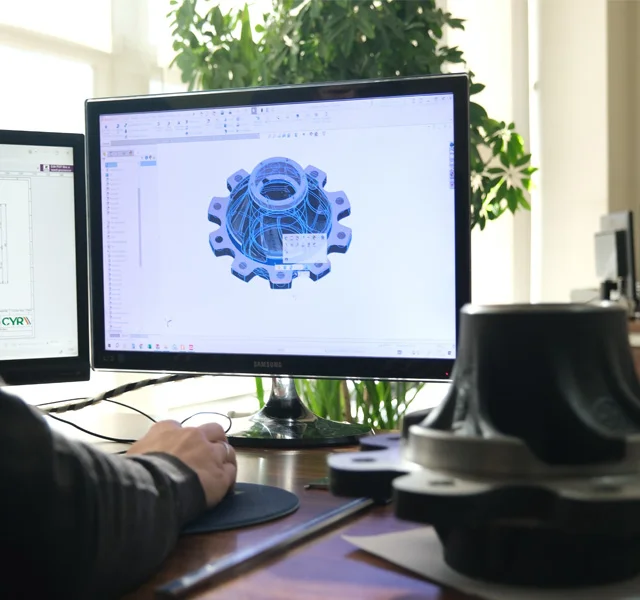

Factory gallery
Products
Double-Acting Hydraulic Cylinders
Double-acting hydraulic cylinders for agricultural machinery and trailers: bucket lift, rotary tiller lift, articulated top-link lift, hazelnut thresher lift, feed mixer lid lift, seed drill, disc harrow, tailgate and goble lifts. Tube sizes range from 40x50 to 105x90 mm, rod diameters Ø25-Ø50 mm and strokes 130-760 mm, with capacities from 2,500 kg to 12,700 kg.
Braked Axles
Braked axle series for trailers and agricultural machinery, offered with brake shoe sizes from 130x30 to 300x60 mm, 4-6 stud hubs and 40-80 mm square beam sections. Capacity ranges from about 800 kg to 8,500 kg at 25 km/h and from 650 kg to 7,650 kg at 40 km/h, with 1,250-1,650 mm track widths and tapered roller bearing options (30204-32213).
Braked Torsion Axle (Cable Brake)
Cable-braked torsion axle for light trailers, built with 60x60-3 and 80x80-4 profile beams, 200x50, 250x40 and 300x60 mm brake shoe options and 4, 5 or 6 stud hubs. Capacity ranges from 900 kg to 2,500 kg; stud pitch circles are 100, 112 and 205 mm with M12x1.5 and M18x1.5 studs.
