Arkoç Plastik
Exclusive Gealan partner in Turkey’s building industry, producing thermally insulated PVC and aluminium windows, doors and sliding systems.
About
Production profile
Company type
Activity types
Production capabilities
Materials worked
Export profile
Industries served
Activity categories
Target export markets
Netherlands

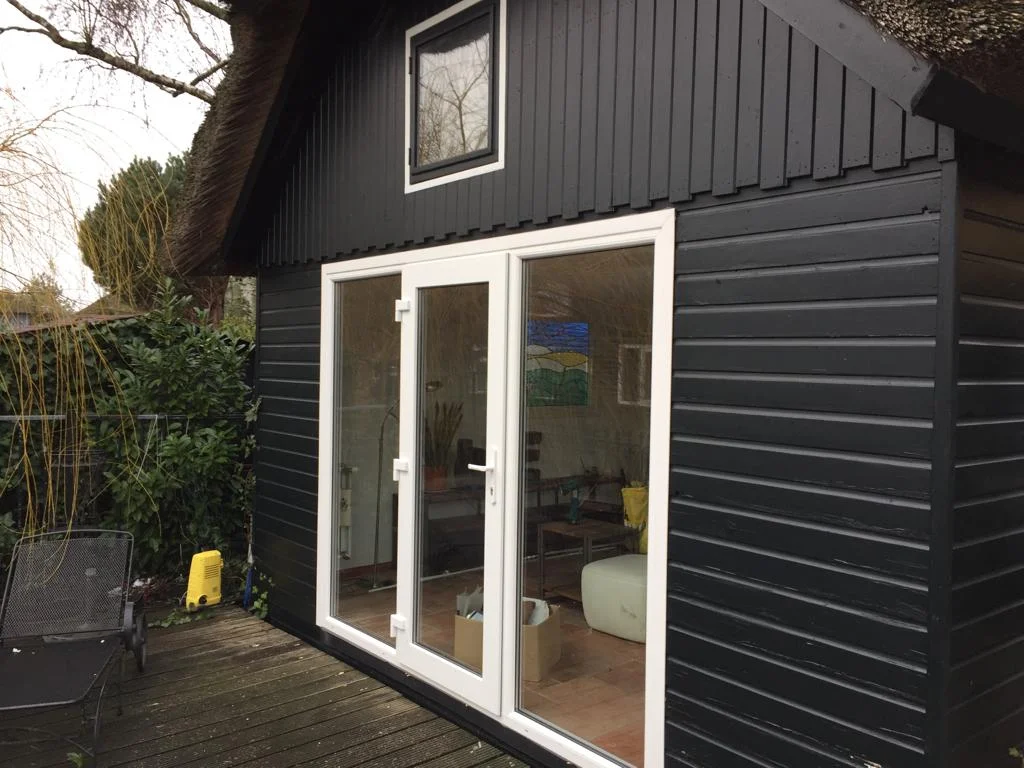

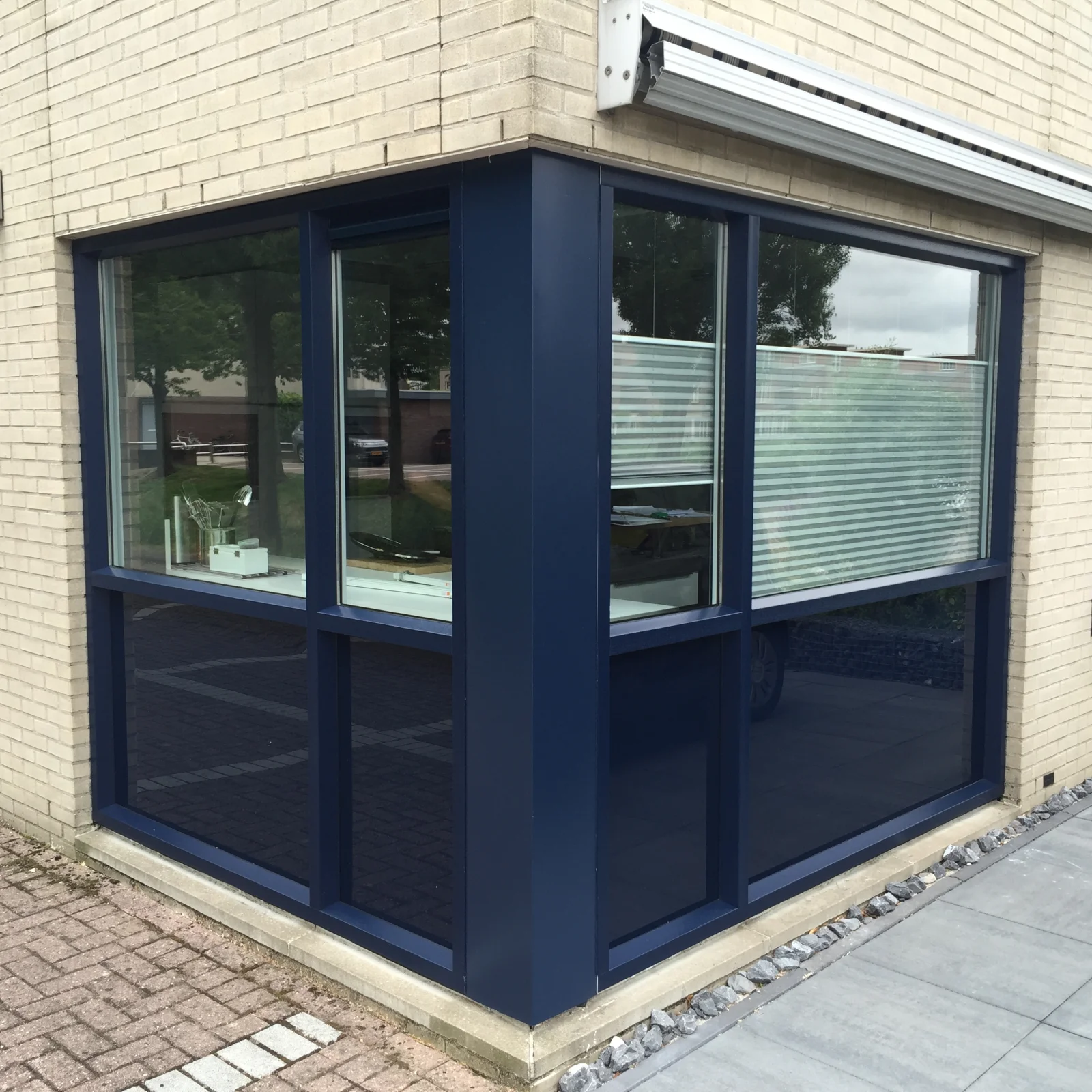

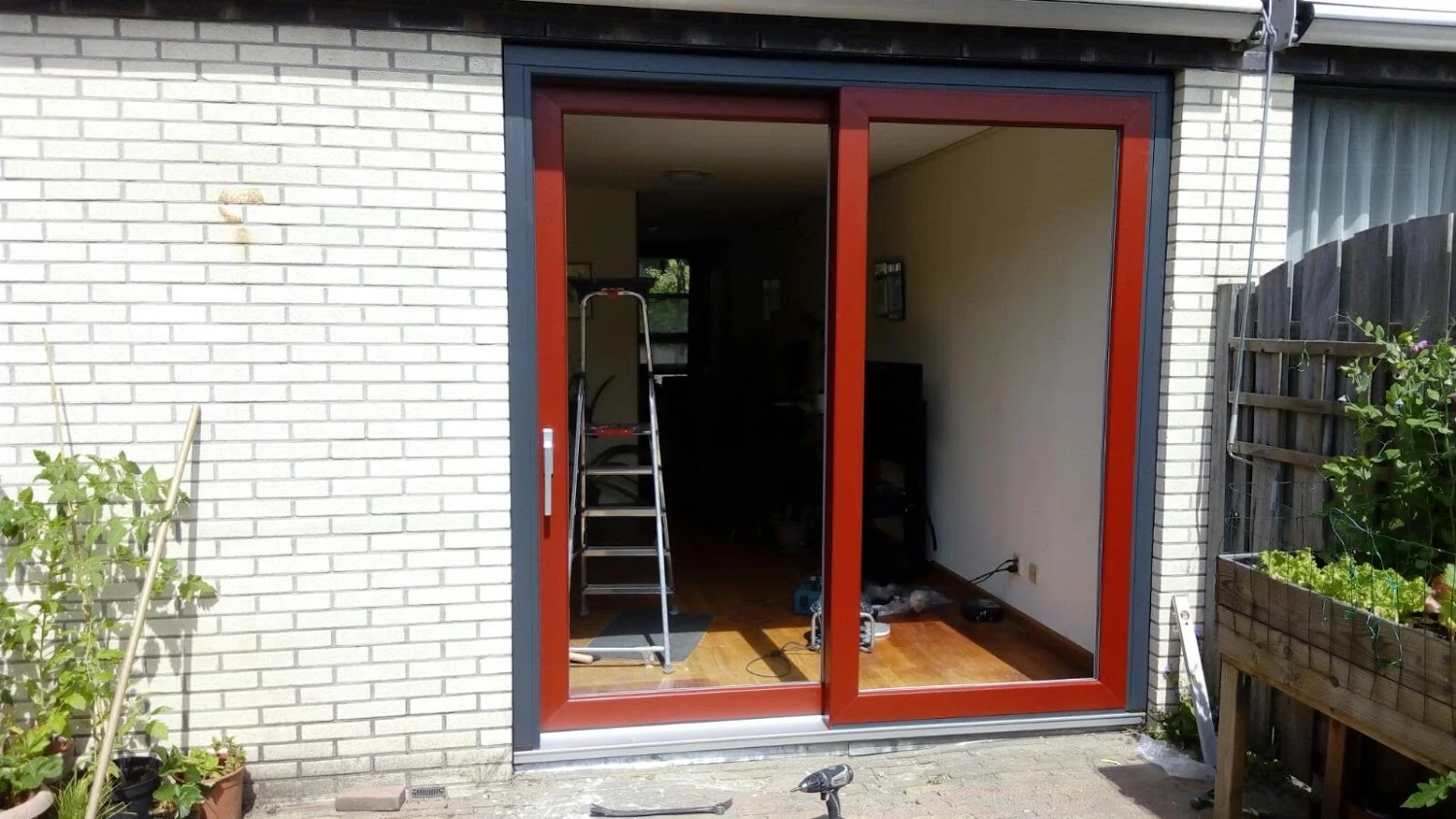

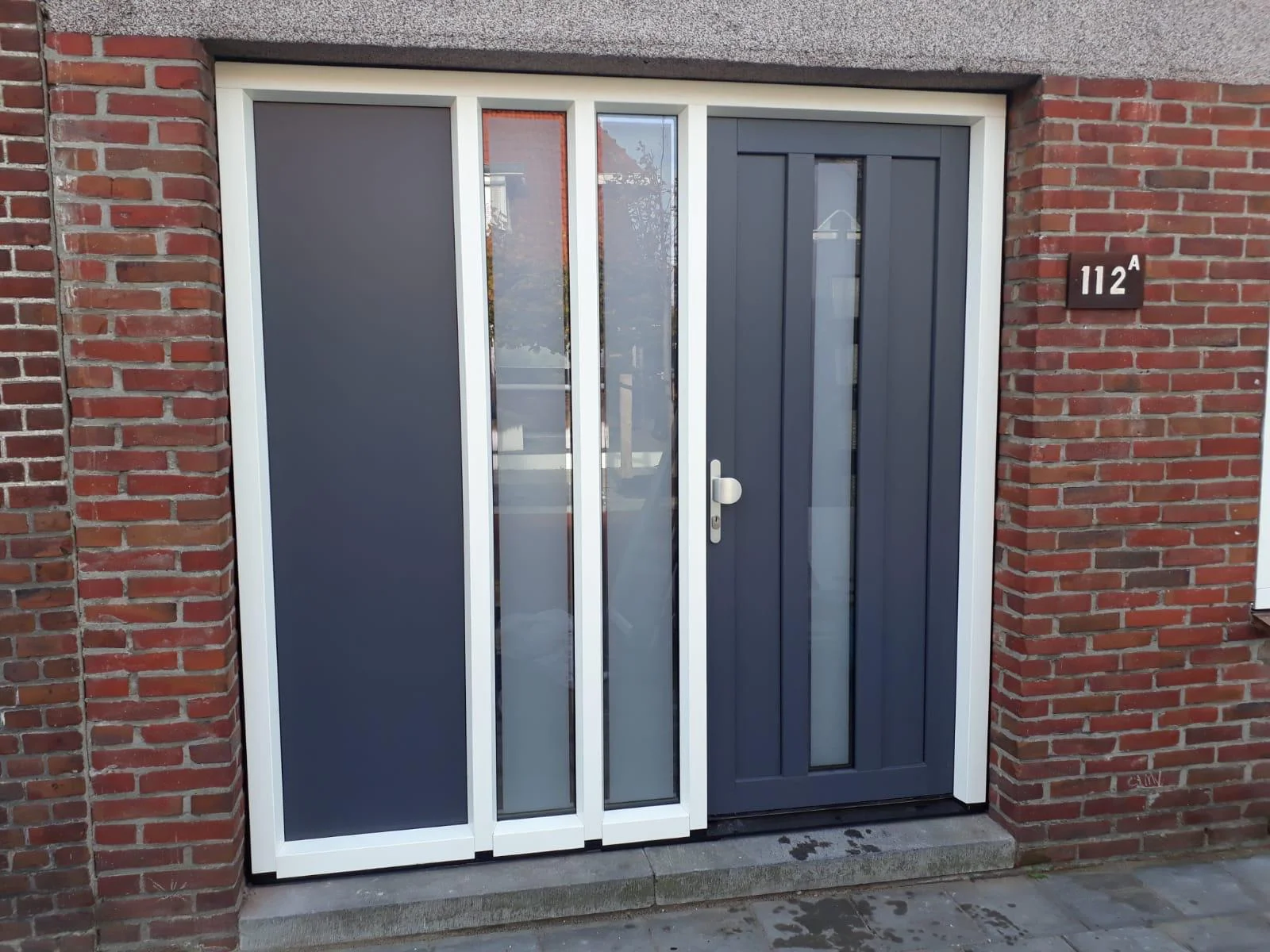

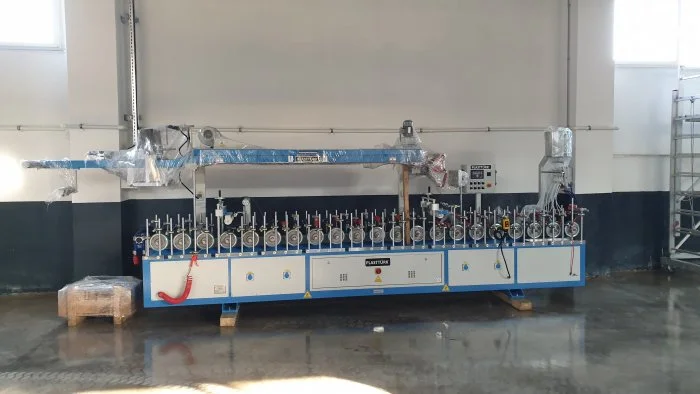

Factory gallery
Products
Aluprof MB-79N Thermally Insulated Window and Door
The MB-79N is a state-of-the-art and economical addition to the Aluprof window and door systems, designed to outperform typical thermal insulation requirements. The series can be used to fabricate fixed, side-hung, hopper, tilt-and-turn, and hopper-and-slide windows, as well as single and double exterior doors, and storefront solutions complete with doors. Profile depth is 79 mm (casement) and 70 mm (window frame and door leaf). Windows are offered in three thermal variants (MB-79N E, ST, SI) and doors in four (E, ST, SI and SI+). Thermal insulation starts from Uw 0.64 W/(m²K) and Uf 0.83 W/(m²K). The system can receive double or triple glazing, up to 63 mm for windows and 54 mm for doors. Security doors rated RC1–RC3 can be produced. Air permeability is given as class 4 EN 12207:2001.

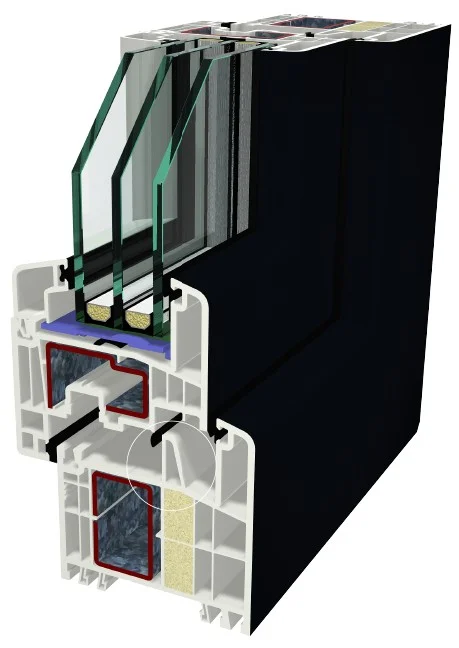

GEALAN S 9000 PVC Window and Door System
The S 9000 is a versatile, state-of-the-art system for windows, doors, and lift-slide doors, with a choice of two or three sealing levels. GEALAN-FUTURA® is the single profile combination in the S 9000 system. It offers the option of building passive house-compatible window elements, including in colour, in accordance with the ift directive WA-15/2 using standard profiles and standard 2 mm steel stiffening elements. The certified Uf value of 0.89 W/(m²K) confirms the outstanding basic heat insulation properties. Maximum sash dimensions of up to 2.40 m are possible with GEALAN-FUTURA® when using STV® bonding technology. With an installation depth of 82.5 mm and modern five-chamber technology, the S 9000 front door is suitable for glass and panel thicknesses up to 52 mm (with STV® up to 54 mm).

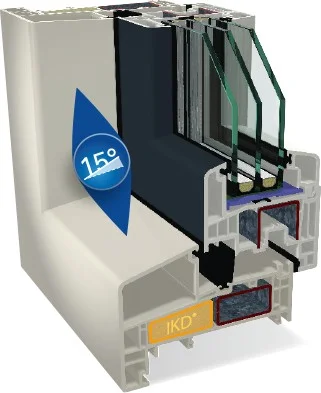

GEALAN S 9000 NL Window System
The S 9000 NL window system features a 3-seal system throughout and is specifically designed to meet the needs and requirements of the Dutch market. It is suitable for windows, doors, and lift-and-slide doors. Due to the 3-seal system, and in particular the innovative flexible center seal, the system targets thermal insulation and wind and water tightness. Multi-chamber technology, raised sashes and the 3-seal system can achieve a U-window value of up to Uw 0.75 W/(m²·K). Glass up to 52 mm thick can be used, including sun-, sound- or burglar-resistant glass. The raised sash contributes to SKG class 2 burglary resistance. Frame variants are specified with an installation depth of 120 mm and a 15° slope. IKD® insulation foam and STV® adhesive technology are used to improve stability and energy performance.
Services
Assembly and Transportation Service
Assembly and transportation services are provided by our company. Product transportation is done by our own vehicles. The assembly service is carried out by the personnel who are experts in their field and who work within our organization. Assembly covers PVC windows and doors, aluminium windows and doors, and winter gardens listed on the site. Quotations can be requested by phone 0232 608 85 95 or by e-mail at [email protected].

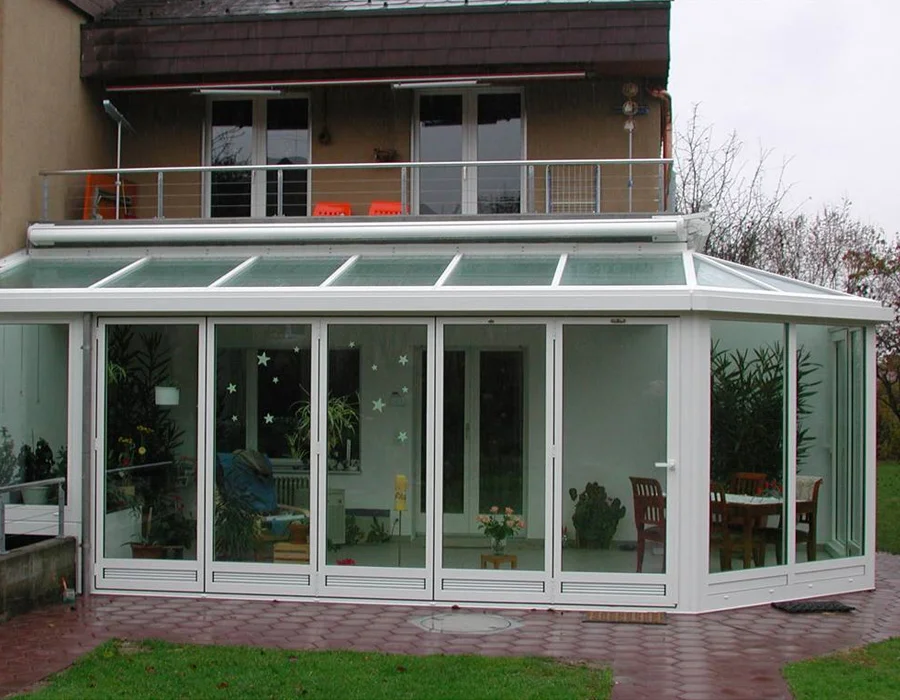

Project Pricing and Technical Drawings
Pricing projects and drafting technical drawings of your windows and doors are provided free of charge. You can send us your request by e-mail or contact us through the website. The service covers project consulting for PVC and aluminium windows and doors as well as sliding systems and winter gardens listed by the company. Contact: [email protected], 0232 608 85 95, Yeniköy Osb Mah. 504 Sok. No: 5 Torbalı/İzmir.

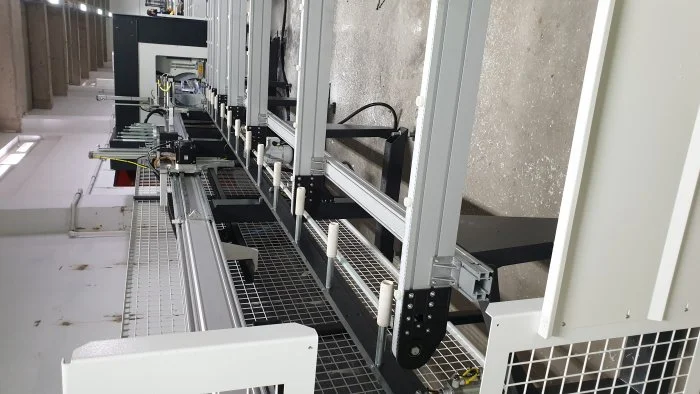

Spare Parts and Maintenance
Spare parts and maintenance support and assistance are provided in case of need. If requested, spare parts can be supplied directly; if not, they can be rebuilt to meet your needs. Support covers the PVC window and door and aluminium joinery applications produced by the company. Requests can be sent to [email protected] or by phone 0232 608 85 95. Office hours are Monday–Friday 08:00–18:00.
