Konya — Irrigation Pipe & Hose Product (Irrigation Pipe & Hose)

Topçuoğlu Plastik

16 mm Perforated Drip Irrigation Pipe

Irrigation Pipe & Hose Product

The 16 mm perforated drip irrigation pipe is produced in 0.9, 1.0, 1.1 and 1.2 mm wall thicknesses. Emitter spacing options are 20, 25, 33, 40, 50, 60, 70, 75, 80, 90 and 100 cm. Coil length is 400 m; flow options are 2, 4 and 8 l/h. It is used to deliver controlled water to the root zone on row crops and vegetable fields.

Konya · Büyükkayacık Organized Industrial Zone

Topçuoğlu Plastik

Round Plain Drip Pipes

Irrigation Pipe & Hose Product

Round plain drip pipes are produced as 16 mm with 0.9–1.2 mm wall and 400 m coils; 20 mm with 1.0, 1.2 and 1.5 mm wall and 300 m coils; 25 mm with 1.2, 1.5 and 2.0 mm wall and 250 m coils; and 32 mm with 1.5 mm wall and 150 m coils. The unperforated line is used as a lateral for online drippers or micro-sprinklers.

Konya · Büyükkayacık Organized Industrial Zone

Topçuoğlu Plastik

PE Coil Irrigation Pipes

Irrigation Pipe & Hose Product

Topçuoğlu black PE coil irrigation pipes are produced in 20, 25, 32, 40, 50, 63, 75, 90 and 110 mm diameters. The 6 atm class is packed as 200 m coils for 20–25 mm and 100 m coils for 32–90 mm; 10 atm and 16 atm classes include 50 m coils at 110 mm. The blue coil range covers the same diameters at 10 atm and 16 atm. Pipes are used as PN6/PN10 underground and above-ground irrigation mains and laterals.

Konya · Büyükkayacık Organized Industrial Zone

Serdrip

22 mm flat drip irrigation pipe

Irrigation Pipe & Hose Product

The 22 mm flat page lists Ø22 wall 0.20 mm coils 1800 m and 0.30 mm coils 1200 m, plus Ø25 0.30 mm × 1000 m. Flow 1.6–2.2 L/h. A recommended run-length table by slope and pressure is on the same page. Flat drip is the thin-wall line in Serdrip’s agricultural drip range.

Konya · Büyükkayacık Organized Industrial Zone

Serdrip

Round drip irrigation pipe (16/20 mm)

Irrigation Pipe & Hose Product

The round category page calls round drip the backbone of drip systems, delivering water to the root. Child SKUs are 16 mm perforated, 20 mm perforated, and 16 & 20 mm plain laterals. About ties 40,000,000 m/year drip pipe to the Konya Büyükkayacık OSB factory.

Konya · Büyükkayacık Organized Industrial Zone

Serdrip

17 mm flat drip irrigation pipe

Irrigation Pipe & Hose Product

The 17 mm flat page tables Ø17; wall 0.15 / 0.20 / 0.25 mm; spacing 20–50 cm; coils 2500 / 2300 / 1800 m; flow 1.6–2.2 L/h. Category copy allows PVC or PE and recommends PE for long-term use. It is part of the 40 million m/year drip capacity at Büyükkayacık OSB.

Konya · Büyükkayacık Organized Industrial Zone

Panplast

Round drip irrigation pipes

Irrigation Pipe & Hose Product

On Panplast’s round drip page, emitters are inserted during extrusion; each emitter has two outlets. Nominal flows are 2–4–6 l/h at 1 atm; maximum working pressure is 2 atm. Ø16 inner diameter 13.8 mm, Ø20 inner diameter 17.8 mm; walls 0.7 / 0.9 / 1.0 / 1.1 / 1.2 mm. UV-stabilised resin is used for multi-year crops.

Konya

Panplast

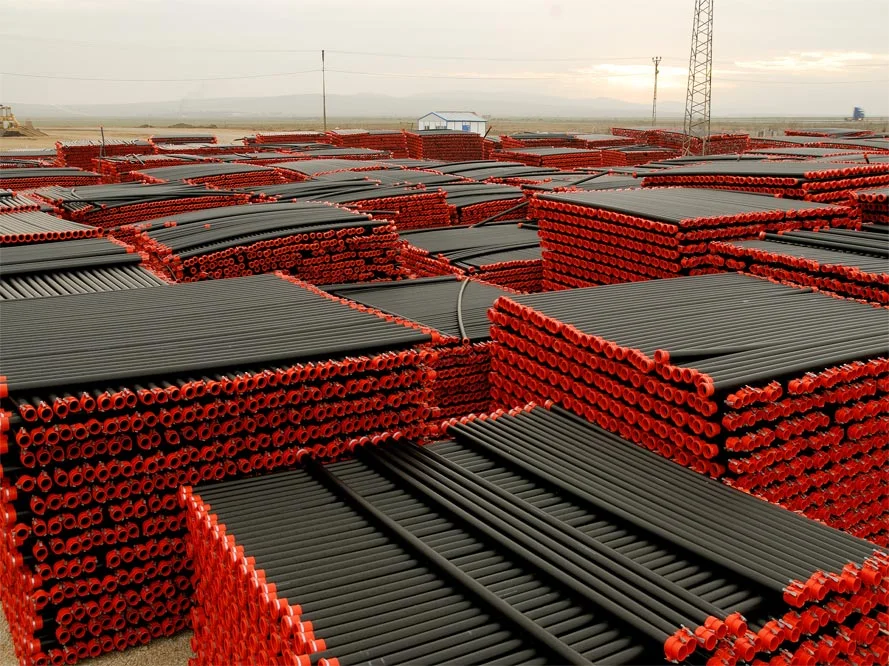

Sprinkler irrigation pipes

Irrigation Pipe & Hose Product

Panplast’s sprinkler page describes HDPE sprinkler pipe to TS 418-2 / EN 12201-2. Diameters 50–250 mm; lengths 5 and 6 m. Latch joints cover 50–160 mm and clamp joints 75–160 mm. UV-stabilised; pipes are also made with abot, cross and T heads.

Konya

Panplast

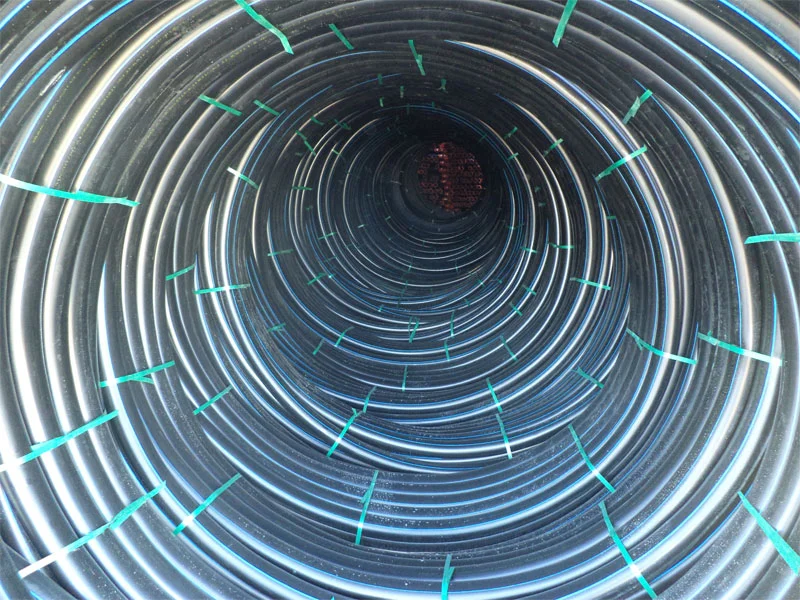

PE 100 coil pipe

Irrigation Pipe & Hose Product

The coil-pipe page lists PE 100 coils from 20 mm to 450 mm. Pressure classes are 6, 8, 10, 12.5, 16, 20 and 25 atm. Standard: TS-EN-12201-2+A1. Coils are supplied for irrigation mains and potable water.

Konya

Driptime

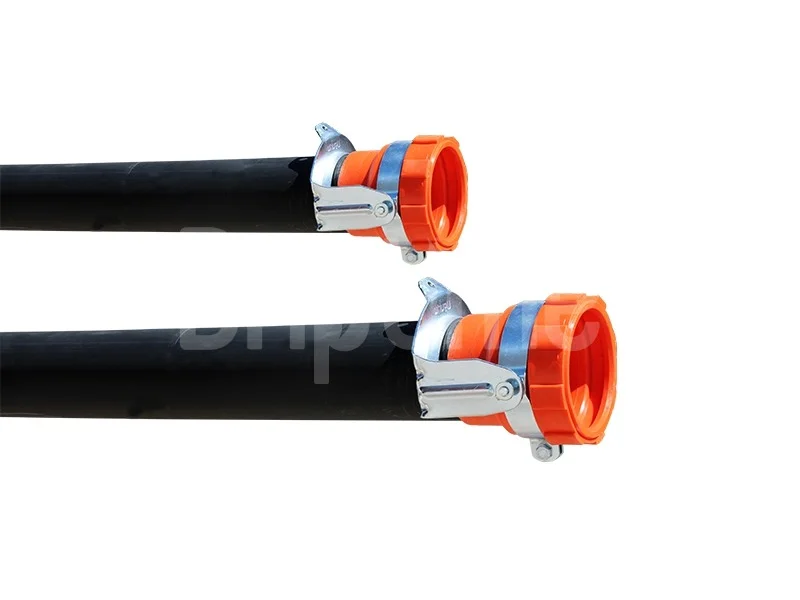

Sprinkler Irrigation Pipe With Latch

Irrigation Pipe & Hose Product

Sprinkler pipe with latch diameters: DTSS 6001 Ø50 mm; DTSS 6002 Ø63 mm; DTSS 6003 Ø75 mm; DTSS 6004 Ø90 mm; DTSS 6005 Ø110 mm; DTSS 6007 Ø125 mm; DTSS 6008 Ø140 mm; DTSS 6009 Ø160 mm. Length options 5 m and 6 m (site: ‘We have both -5mt- and -6met- lenght options.’). No PN/ATÜ value is published on this product page. The About portfolio includes sprinkler irrigation systems; production is on pipe extrusion lines at the Konya Ortakonak 7,000 m² plant.

Konya

Driptime

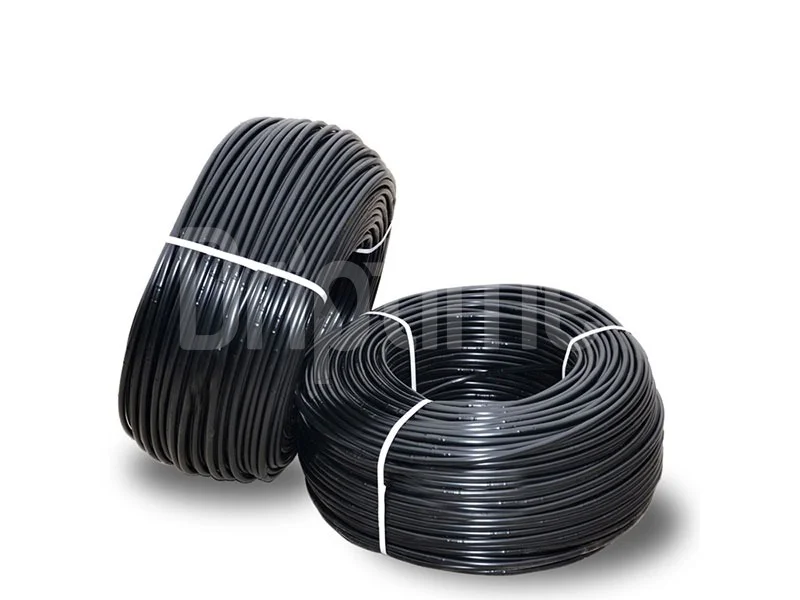

Drip Irrigation Pipe (With Dripper)

Irrigation Pipe & Hose Product

Drip irrigation pipe with dripper (site table): diameter 16 mm, wall 0.9 / 1.0 / 1.1 mm; diameter 20 mm, wall 1.0 / 1.1 / 1.2 mm. Flow rate 2 - 4 - 8 l/h. Emitter spacing 20, 25, 33, 40 and 50 cm. Product codes carry diameter+wall+spacing (DTP 160920 … DTP 201250). Produced on pipe extrusion lines at the Ortakonak plant; the with-dripper line of the drip portfolio in the 7,000 m² enclosed facility.

Konya

Driptime

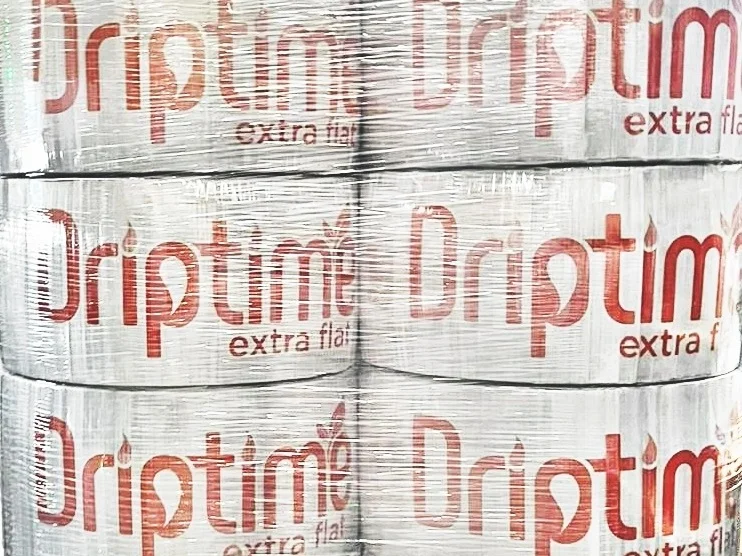

Drip Irrigation Pipe Without Dripper (DTPD)

Irrigation Pipe & Hose Product

Drip irrigation pipe without dripper (DTPD series) is a PE drip line produced without emitters fitted. Site table codes: DTPD 1609 Ø16 mm / 0.9 mm wall; DTPD 1610 Ø16 / 1.0 mm; DTPD 1611 Ø16 / 1.1 mm; DTPD 1612 Ø16 / 1.2 mm; DTPD 2010 Ø20 / 1.0 mm; DTPD 2011 Ø20 / 1.1 mm; DTPD 2012 Ø20 / 1.2 mm. Diameters 16 mm and 20 mm; wall thicknesses in the 0.9–1.2 mm range. The About portfolio names drip pipes with and without drippers together; production is on the Ortakonak pipe extrusion lines.

Konya
